Quick Details
-
After-sales Service Provided:
-
Free spare parts
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MINXIN
-
Model Number:
-
1750mm, 1530mm, 1380mm, 1220mm, 1100mm, 1060mm, 1000mm, 900mm, 800mm, 700mm, 600mm, 500mm, 400mm, 300mm, 200mm
-
Fan type:
-
Industrial Ventilation Exhaust Cooling Box Fan
-
Motor:
-
100% Full Copper Motor
-
Size:
-
1380mmx1380mm / 50inch
-
Material:
-
Galvanized Steel/Stainless Steel or Customized
-
Rated voltage:
-
AC 110/120V, 220/240V, 380V/415V
-
Function:
-
Exhaust, Ventilation, Cooling
-
Mount Type:
-
Through wall mount/ window mount
-
Product Keywords:
-
poultry farm ventilation fans, dairy farm fan, greenhouse fan
-
Item:
-
Poultry Farm Industrial Exhaust Wall Mount Ventilation Extractor Fan
-
Application:
-
Poultry, Dairy Farm, Greenhouse
Quick Details
-
Applicable Industries:
-
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company, Greenhouse, Factory, Warehouse, Workshop, Poultry house, Poultry farm, Pig farm, Farm house
-
Electric Current Type:
-
AC
-
Mounting:
-
Wall Fan
-
After-sales Service Provided:
-
Free spare parts
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MINXIN
-
Model Number:
-
1750mm, 1530mm, 1380mm, 1220mm, 1100mm, 1060mm, 1000mm, 900mm, 800mm, 700mm, 600mm, 500mm, 400mm, 300mm, 200mm
-
Fan type:
-
Industrial Ventilation Exhaust Cooling Box Fan
-
Motor:
-
100% Full Copper Motor
-
Size:
-
1380mmx1380mm / 50inch
-
Material:
-
Galvanized Steel/Stainless Steel or Customized
-
Rated voltage:
-
AC 110/120V, 220/240V, 380V/415V
-
Function:
-
Exhaust, Ventilation, Cooling
-
Mount Type:
-
Through wall mount/ window mount
-
Product Keywords:
-
poultry farm ventilation fans, dairy farm fan, greenhouse fan
-
Item:
-
Poultry Farm Industrial Exhaust Wall Mount Ventilation Extractor Fan
-
Application:
-
Poultry, Dairy Farm, Greenhouse
Related Products
Product Description

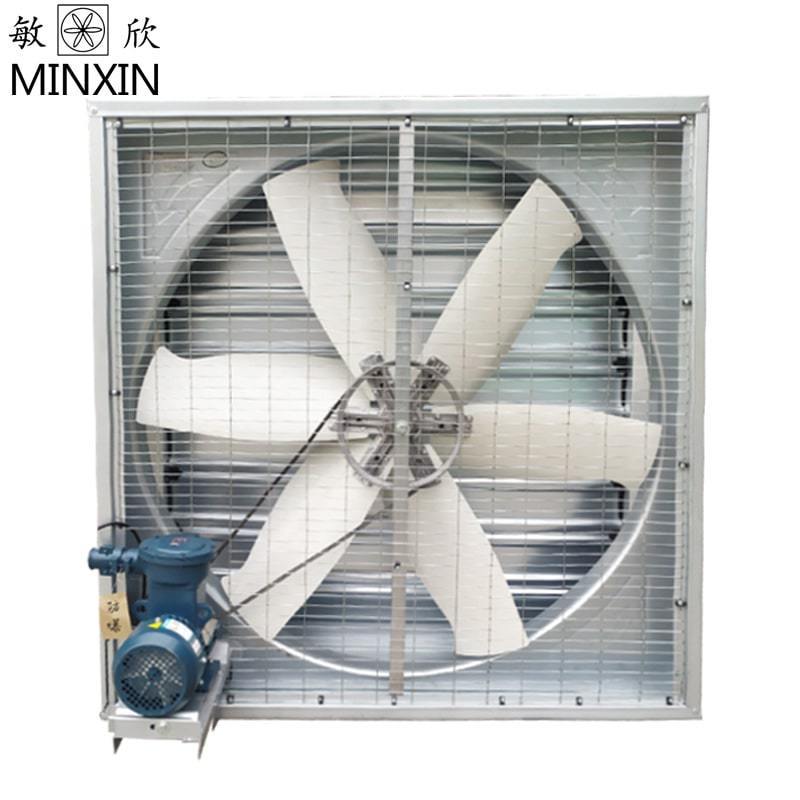

The 1380mm industrial ventilating greenhouse poultry farm air flow axial exhaust fan is very powerful, pulls in the air and cools spaces up to 160㎡, the louvers keep the rain and cold out when not in use.
Industrial Fan 50inch Heavy Duty Hammer Exhaust Ventilation Fan for Broiler Farm Poultry Fan
Technical Details
|
Type:
|
Standard
|
OEM
|
|
Fan Size
|
1100mmx1100mmx350mm
(43inch*43inch*14inch)
|
Any size
|
|
Fan Diameter(inch)
|
50
|
50
|
|
Fan Color
|
Silver
|
Painted or coating in any color
|
|
Fan Blade Material:
|
1mm/20 gauge galvanized steel
|
as per customers’ requirements
|
|
Fan Frame Material:
|
0.7mm/24 gauge galvanized steel
|
0.7mm, or higher thickness galvanized steel, fiberglass, or stainless steel
|
Details Images
Exhaust Fan Shutter
Fan shutters can be fully closed to keep out the rain, dust, pest and light.
90° Fully Open Fan Louver
The fan louvers can be fully opened to intake the largest amount of fresh air.
Higher Blade Curved Braket, higher airflow volumn
Ultra-thick galvanized steel or stainless steel fan blade
Rugged aluminum alloy pulley system for higher durability
One Piece Durable Automotive Bearing
High Efficiency 100% Copper Motor
Durable and Heat-Resistant Motor
Size Information
|
Model
|
Dimensions
|
Air Flow
|
Power
|
Workable Areas
|
Fan Speed
|
Noise
|
|
200#
|
200mmx200mmx170mm
|
588CFM
|
150W
|
5~20㎡
|
2000rpm
|
<45db
|
|
300#
|
300mmx300mmx200mm
|
1200CFM
|
150W
|
5~20㎡
|
2200rpm
|
<50db
|
|
400#
|
400mmx400mmx300mm
|
1500CFM
|
250W
|
20~40㎡
|
1400rpm
|
<55db
|
|
500#
|
500mmx500mmx300mm
|
3000CFM
|
250W
|
25~50㎡
|
1400rpm
|
<55db
|
|
600#
|
600mmx600mmx300mm
|
4700CFM
|
250W
|
50~60㎡
|
960rpm
|
<55db
|
|
700#
|
700mmx700mmx300mm
|
6000CFM
|
250W
|
60~70㎡
|
960rpm
|
<60db
|
|
800#
|
800mmx800mmx300mm
|
7650CFM
|
250W
|
70~80㎡
|
960rpm
|
<60db
|
|
800#
|
800mmx800mmx350mm
|
13000CFM
|
370 W
|
70~80㎡
|
450rpm
|
<60db
|
|
900#
|
900mmx900mmx350mm
|
16000CFM
|
370 W
|
80~90㎡
|
450rpm
|
<55db
|
|
1000#
|
1000mmx1000mmx350mm
|
17650CFM
|
550 W
|
90~100㎡
|
450rpm
|
<60db
|
|
1060#
|
1060mmx1060mmx350mm
|
19000CFM
|
550 W
|
100~120㎡
|
450rpm
|
<60db
|
|
1100#
|
1100mmx1100mmx350mm
|
20000CFM
|
550 W
|
110~130㎡
|
450rpm
|
<60db
|
|
1220#
|
1220mmx1220mmx350mm
|
22000CFM
|
750 W
|
120~140㎡
|
450rpm
|
<60db
|
|
1380#
|
1380mmx1380mmx350mm
|
26000CFM
|
1100 W
|
140~160㎡
|
450rpm
|
<65db
|
|
1530#
|
1530mmx1530mmx400mm
|
32800CFM
|
1500W
|
160~200㎡
|
450rpm
|
<70db
|
|
1750#
|
1750mmx1750mmx450mm
|
40000CFM
|
1800W
|
180~220㎡
|
350rpm
|
<70db
|
Packing&Shipping
The exhaust fans can either be shipped in unassebled way to save space and shipping cost, or shipping the assembled exhaust fans to save trouble and time.
Unassembled Exhaust Fan Parts
The unassembled fan parts can be shipped to customers for assembly, it will help to save shipping cost.
Assembled Exhaust Fans
The assembled exhaust fans can be sent to customers for immediate installation.
Why Chose Us
Long Standing History
10 years' OEM experience of industrial exhaust fans, over 200 skilled employees.
Well Equipped
Equipped with over 100 automatic machines and 10 production lines, lower product cost for our customers
Fully Customizable
Full customization on voltage, materials, dimensions, design and private labeling to meet your unique request.
Most Complete Fan Sizes
10 years' OEM experience of industrial exhaust fans. Exhaust fans sizes range from 200mm to 1750mm, ventilation capacity ranges from 600CFM to 40000CFM
Fast Delivery
Highest production capacity in China, our daily output is 3,000pcs. Most of our customer can be delivered within 7 days, some can be delivered some day or 3 days
Complete Product Line
95% of the fan parts are produced in our own facility, we handle from coil sliding and folding, laser welding, die casting and stamping, motor cooper coil winding, CNC machining and assembly to ensure high precision of each part and higher performance of
the exhaust fans
the exhaust fans
Company Introduction
MINXIN INDUSTRIAL is well known for its most complete production line for industrial exhaust fans, evaporative air conditioners, and mobile air coolers.
Our Services & Strength
Minxin Industrial was founded in 2015, since then Minxin has been specialized in manufacturing industrial exhaust fans and evaporative air coolers of all sizes, such as:
1. Minxin Belt drive ventilating exhaust fans
2. Minxin Direct drive ventilating exhaust fans
3. Yihoo Water-cooling evaporative air conditioner
4. Yihoo Mobile evaporative air cooler
1. Minxin Belt drive ventilating exhaust fans
2. Minxin Direct drive ventilating exhaust fans
3. Yihoo Water-cooling evaporative air conditioner
4. Yihoo Mobile evaporative air cooler
MINXIN Headquater
Space: 20,000㎡
Production: Fan parts production, motor production
MINXIN Plant 2
Space: 6,000㎡
Production:
Air cooler and cooling pad production and assembly
MINXIN Plant 3
Space: 6,000㎡
Production: Exhaust fan and circulation fan assembly
MINXIN Plant 4
Space: 5,000㎡
Production: Exhaust fan and circulation fan assembly
Our Production Lines
Supporting 120 employees, our 20,000 square meter factory is top-notch, Minxin Industrial equipped itself with all the production equipment processes in house for better control of the quality and delivery time:
1. Steel coil sliding and cutting line, steel pipe cutting line
2. Aluminum Die Cast Tooling & Casting
3. Plastic Molding & Injection workshop
4. Metal Stamping & Laser Cutting
5. Motor Copper Coil Winding Line
6. Motor Assembly Workshop
7. Exhaust Fan Assembly Workshop
8. Water Air Cooler Assembly Workshop
1. Steel coil sliding and cutting line, steel pipe cutting line
2. Aluminum Die Cast Tooling & Casting
3. Plastic Molding & Injection workshop
4. Metal Stamping & Laser Cutting
5. Motor Copper Coil Winding Line
6. Motor Assembly Workshop
7. Exhaust Fan Assembly Workshop
8. Water Air Cooler Assembly Workshop
