Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
OEM
-
Model Number:
-
JHY-750GF
-
Speed:
-
1500/1800rpm
-
Product Name:
-

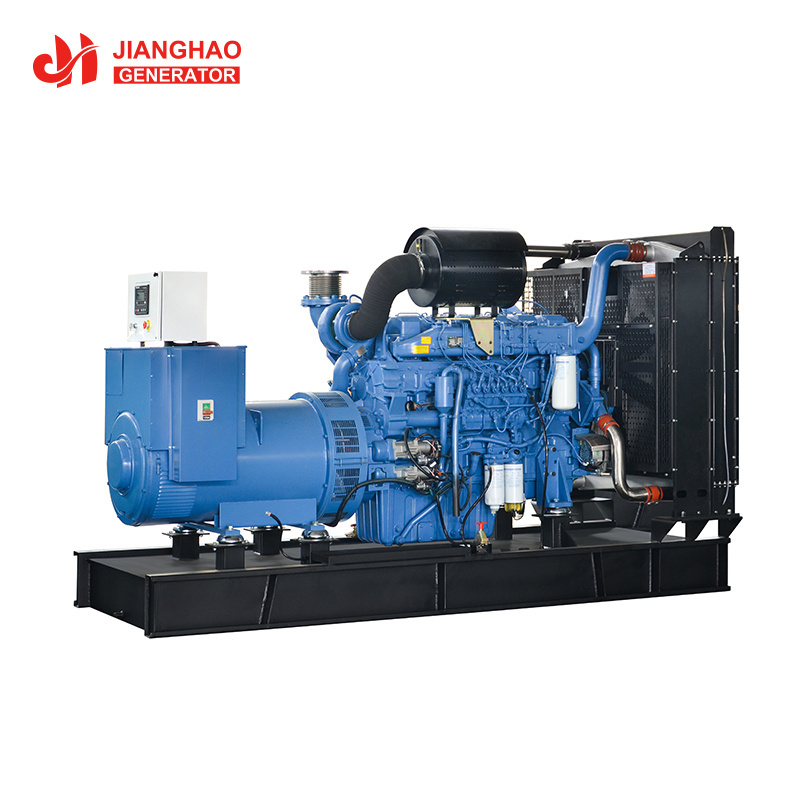

750kva chinese Yuchai electric generator engine model
-
Diesel engine:
-
Yuchai YC6TD900-D31
-
Alternator:
-
Marathon/Mecc alte/Stamford/Hengsheng
-
Controller:
-
Smartgen/Deepsea
-
Type:
-
open/silent/mobile/container
-
Certificate:
-
CE/ISO9001
-
Warranty:
-
1 Year
-
Options 1:
-
Automatic Transfer Switch
-
Options 2:
-
Customer's Logo
-
Options 3:
-
silent canopy color
Quick Details
-
Rated Voltage:
-
400/230V
-
Rated Current:
-
1080A
-
Frequency:
-
50/60HZ
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
OEM
-
Model Number:
-
JHY-750GF
-
Speed:
-
1500/1800rpm
-
Product Name:
-
750kva chinese Yuchai electric generator engine model
-
Diesel engine:
-
Yuchai YC6TD900-D31
-
Alternator:
-
Marathon/Mecc alte/Stamford/Hengsheng
-
Controller:
-
Smartgen/Deepsea
-
Type:
-
open/silent/mobile/container
-
Certificate:
-
CE/ISO9001
-
Warranty:
-
1 Year
-
Options 1:
-
Automatic Transfer Switch
-
Options 2:
-
Customer's Logo
-
Options 3:
-
silent canopy color
JIANGSU JIANGHAO GENERATOR CO.,LTD
Jiangsu Jianghao generator Co.,Ltd, located in Taizhou city, Jiangsu Province, which is near Shanghai port. We have modern assembly workshop to produce diesel generator sets. Jianghao devote itself into researching ,manufacturing and installing superb diesel generator sets ,power range from 2kva to 4000kva,include silent type, container type, mobile power station, multiple parallel, remote control and so on. As the ideal emergency standby power equipment, diesel generator sets are widely used in industrial and mining enterprises, communication, army, ports, highway, railway, hotels etc places. With the compelling quality and service, Jianghao has built a good reputation with customers in the area of diesel generator sets, our products are exported to over eighty countries and regions, over 40 millions USD in the year 2017.
| Diesel generator Details | |
| Model | JHY-600GF |
| Power |
600kw/750kva |
| Frequency | 50Hz/60Hz |
| Voltage | 380/220v(voltage can be customized) |
| Optional Type | Open/soundproof/trailer |
| Size of Open type | 3750*1650*2000mm |
| Weight of Open type | 4500kg |
| With Diesel Engine | |
| Brand&model | Yuchai YC6TD900-D31 |
| Standby Power | 665kw |
| Cylinders | 6 in line arrangement |
| Bore*Stroke | 152*180mm |
| Displacement | 19.6L |
| Lubrication Oil Capacity | 52L |
| Fuel Consumption at 100% Load | 205g/kw.h |
| Speed Governor | Electronic |
| With Alternator | |
| Optional Brands | Stamford/Leroy Somer/Mecc Alte/Marathon |
| Exciter type | Single bearing,brushless,Self-excited |
| Power factor | 0.8 |
| Voltage adjust range | ≥5% |
| Insulation Grade | H |
| Protection Grade | IP23 |
| With Controller | |
| Optional brands | Deepsea/ComAp/Smartgen |
| Standard equipment | |
| · Diesel engine | · 50℃ water cooled radiator |
| · Alternator | · Silencer and flexible exhaust hose |
| · Starting batteries and battery connect wires | · Digital control panel |
| · Output circuit breaker | · Steel base frame |
| Optional equipment | |
| · Sound proof | · Water heater |
| · Automatic parallel synchronizing control system | · ATS |
| · 50℃ water cooled radiator | |
