1.High performance: speed factor up to 780 ( Speed range: Up to 23RPM-26RPM, affected by factors such as yarn, gauge and others )
2.Wide range of different sinker heights
3.Available for regular plating and reverse-plating ONLY by changing sinker cammes
4.Selection of imported Italian gears and transmission
5.Central centralized stitch length adjusting system
6.Distinguished from the four - track steel wire drive conventional equipment,using its own patented dual steel wire runway , reduce
friction , smooth operation , greatly enhance the speed.
7.Five QUAP pulleys in three groups
8.Large pattern range with up to 3 needles tracks in cylinder cam and a wide gauge spectrum
- Product Details
- {{item.text}}
Quick Details
-
Knitting Method:
-
Single
-
Computerized:
-
NO
-
Gauge:
-
18-28gg
-
Knitting width:
-
68 inch
-
Product Type:
-
Knitting machine
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Leadsfon
-
Power:
-
5.5 W
-
Weight:
-
2800 KG
-
Dimension(L*W*H):
-
338*229*217cm
-
Product Name:
-
Terry machine
-
Application:
-
Fabric Knitting
-
Keywords:
-
Knitting Machine
-
Color:
-
Green&white
-
Speed:
-
High Speed
-
Quality:
-
Guaranteed
-
Brand:
-
Pilotelli Odm
-
After-sales Service Provided:
-
Field maintenance and repair service
-
Showroom Location:
-
Turkey,Viet Nam,Brazil,Indonesia,etc
Quick Details
-
Type:
-
Terry
-
Production Capacity:
-
High Speed
-
Knitting Style:
-
Weft
-
Knitting Method:
-
Single
-
Computerized:
-
NO
-
Gauge:
-
18-28gg
-
Knitting width:
-
68 inch
-
Product Type:
-
Knitting machine
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Leadsfon
-
Power:
-
5.5 W
-
Weight:
-
2800 KG
-
Dimension(L*W*H):
-
338*229*217cm
-
Product Name:
-
Terry machine
-
Application:
-
Fabric Knitting
-
Keywords:
-
Knitting Machine
-
Color:
-
Green&white
-
Speed:
-
High Speed
-
Quality:
-
Guaranteed
-
Brand:
-
Pilotelli Odm
-
After-sales Service Provided:
-
Field maintenance and repair service
-
Showroom Location:
-
Turkey,Viet Nam,Brazil,Indonesia,etc
Products Description
|

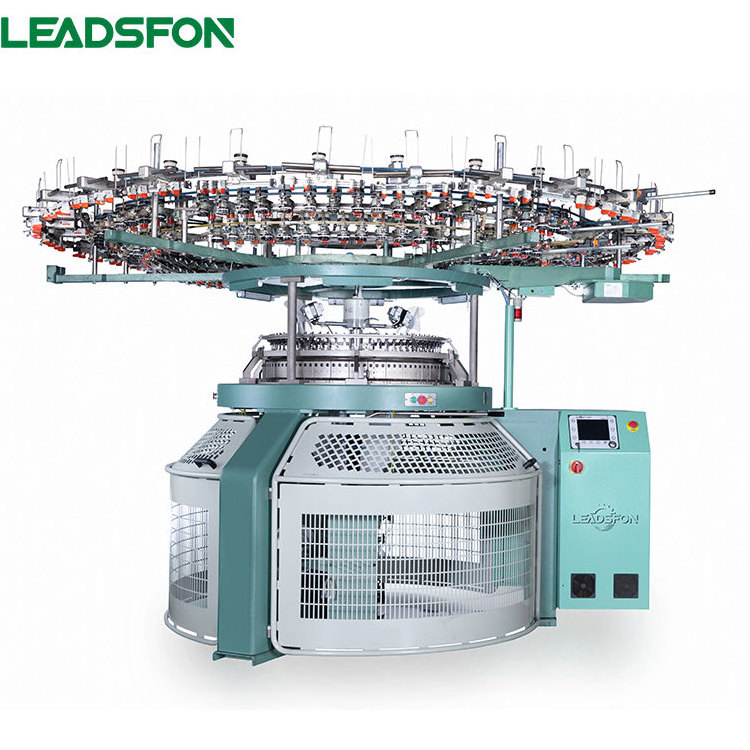

JSP Terry Machine
|
Terry Machine JSP Available for regular plating and reverse-plating ONLY by changing Sinker Cammes.
|
|
|
Available for regular plating and reverse-plating ONLY by changing sinker cammes
|
JSP
|
|
|
PRODUCTION EXAMPLE
|
|
|
|
|
||||
|
JSP for 30 inch, 26rpm [Efficiency, 85%]
|
|
|
|
|
||||
|
Structure
|
Gauges (E)
|
Yarn
|
Weight (g/m2)
|
Production kg/h
|
||||
|
Terry
|
22
|
Cotton 30/1 Ne
Polyester 75 D |
280
|
23
|
||||
|
TECHNICAL DETAILS
|
|
|
|
Type
|
JSP
|
|
|
Diameter [inch]
|
30”, 32”, 34”
|
|
|
No. Of feeders
|
30” 45F , 32”46F, 34”50F
|
|
|
Speed factor [max]
|
780 (Example : 26rpm at 30” )
|
|
|
Gauges [E]
|
14GG-24GG
|
|
PRODUCT FEATURE
