Quick Details
-
Panel Size:
-
960*960
-
Place of Origin:
-
China
-
Model Number:
-
TV-OH500-YX
-
Model:
-
K5.0 K6.67 K10
-
Lamp/IC:
-
NATIONSTAR / PWM
-
Pixel Composition:
-
1R1G1B
-
Panel Dimension (mm):
-
960*960
-
Panel Weight:
-
≤30Kg/m²
-
Brightness Uniformity:
-
≥97%
-
Protection Level:
-
Front IP65/ Rear IP54
-
Pixel Pitch:
-
6mm, 5mm 6.67mm 10mm
Quick Details
-
Application:
-

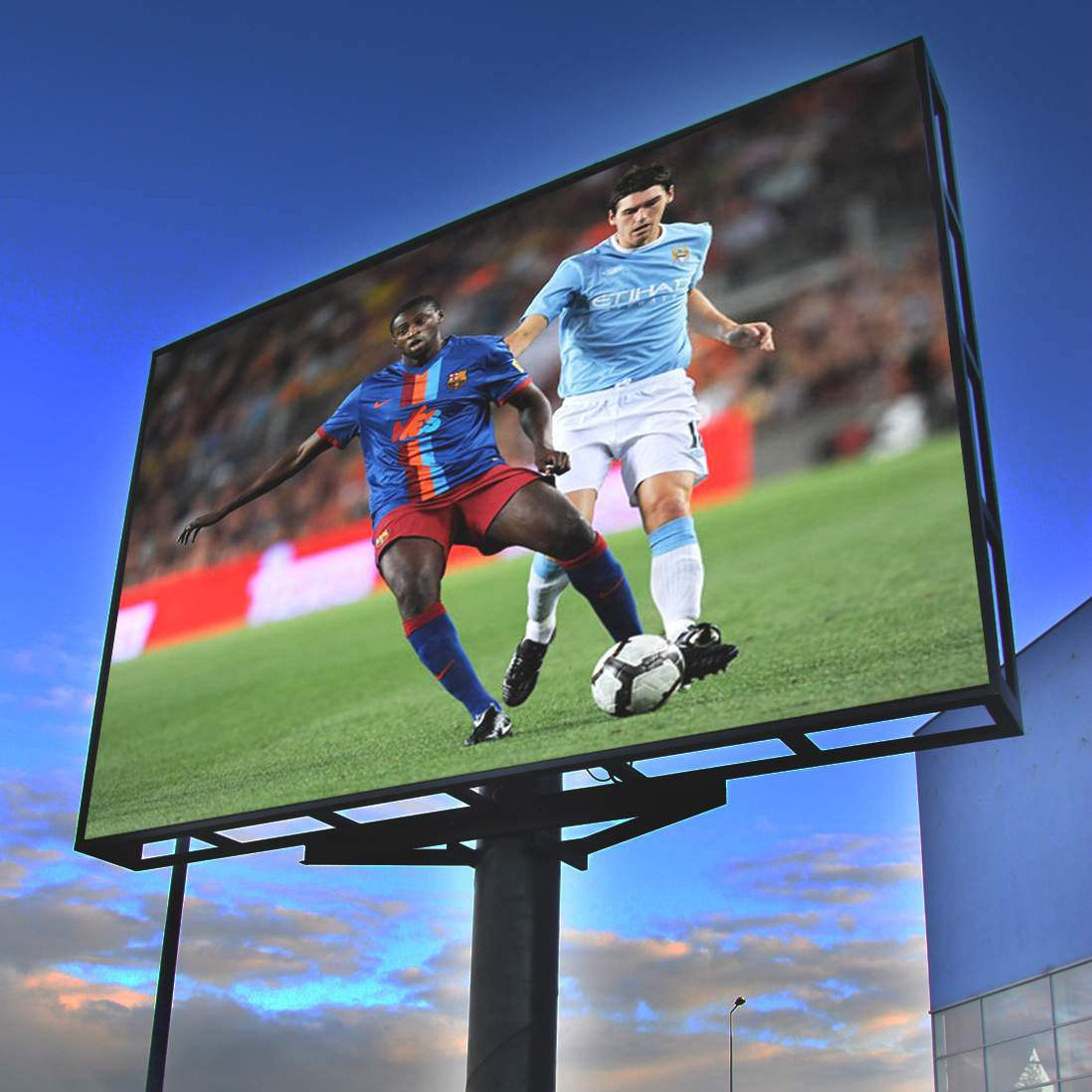

Outdoor, Outdoor advertising
-
Brand Name:
-
ITC
-
Color:
-
Full Color
-
Panel Size:
-
960*960
-
Place of Origin:
-
China
-
Model Number:
-
TV-OH500-YX
-
Model:
-
K5.0 K6.67 K10
-
Lamp/IC:
-
NATIONSTAR / PWM
-
Pixel Composition:
-
1R1G1B
-
Panel Dimension (mm):
-
960*960
-
Panel Weight:
-
≤30Kg/m²
-
Brightness Uniformity:
-
≥97%
-
Protection Level:
-
Front IP65/ Rear IP54
-
Pixel Pitch:
-
6mm, 5mm 6.67mm 10mm
Specification
|
Model
|
K5.0
|
K6.67
|
K10
|
||
|
LED Encapsulation
|
SMD2727
|
SMD2727
|
SMD3535
|
||
|
Pixel Pitch
|
5mm
|
6.67mm
|
10mm
|
||
|
Resolution
|
40000 pixel / m²
|
22500 pixel / m²
|
10000 pixel / m²
|
||
|
Lamp/IC
|
NATIONSTAR / PWM
|
|
|
||
|
Pixel Composition
|
1R1G1B
|
|
|
||
|
Module Resolution
|
64*32
|
48*24
|
32*16
|
||
|
Module Dimension (mm)
|
320*160
|
|
|
||
|
Panel Resolution
|
192*192
|
144*144
|
96*96
|
||
|
Panel Dimension (mm)
|
960*960
|
|
|
||
|
Panel Weight
|
≤30Kg/m²
|
|
|
||
|
Operating Voltage
|
DC +4.2V~+5V
|
|
|
||
|
Best Viewing Distance
|
≥15m
|
≥20m
|
≥30m
|
||
|
Horizontal Viewing Angle
|
140°
|
|
|
||
|
Vertical Viewing Angle
|
140°
|
|
|
||
|
Maintenance Method
|
Rear maintenance
|
|
|
||
|
Graphics Card
|
DVI/HDMI/DP
|
|
|
||
|
Video Signal
|
Compatible with PAL/NTSC/SECAM system, support S-Video; VGA; RGB; Composite Video; SDI; DVI; RF; RGBHV; YUV; YC etc
|
|
|
||
|
Control Method
|
Synchronous control
|
|
|
||
|
Drive device
|
Constant current
|
|
|
||
|
Refresh Rate
|
3840HZ
|
|
|
||
|
Refresh Frame Frequency
|
≥60Hz
|
|
|
||
|
Scanning Method
|
8S
|
6S
|
4S
|
||
|
Brightness
|
5500CD/m²(Adjustable)
|
5500CD/m2(Adjustable)
|
≥4200CD/m²(Adjustable)
|
||
|
Grayscale
|
281 trillion
|
|
|
||
|
Contrast
|
3000:01:00
|
|
|
||
|
Attenuation Rate (after working for 3 years)
|
≤15%
|
|
|
||
|
Brightness Adjustment Method
|
Software 0 to 255 stepless adjustment
|
|
|
||
|
Computer Operating System
|
WIN98/2000/WIN XP/WIN Vista/WIN7
|
|
|
||
|
MTBF
|
≥10000H
|
|
|
||
|
Lifespan
|
≤100000H
|
|
|
||
|
Failed Rate
|
≤1/100000 and no continuous failed pixel
|
|
|
||
|
Operating Temperature
|
Storage -35 ℃ ~ + 85 ℃, operating -20 ℃ ~ + 50 ℃
|
|
|
||
|
Ambient Temperature
|
10% ~ 80% no condensation
|
|
|
||
|
Operating Voltage (AC)
|
220V±10%/50Hz or 110V±10%/60Hz
|
|
|
||
|
Average Power Consumption
|
≤330W/m²
|
|
|
||
|
Maximum Power Consumption
|
≤990W/m²
|
≤900W/m²
|
<990W/m²
|
||
|
Mounting Cabinet Specifications
|
Die-cast aluminum cabinet
|
|
|
||
|
Brightness Uniformity
|
≥97%
|
|
|
||
|
Protection Level
|
Front IP65/ Rear IP54
|
|
|
||
