Quick Details
-
Voltage:
-
100V-240V
-
Place of Origin:
-
Korea
-
Brand Name:
-
HONGJIN
-
Dimension(L*W*H):
-
163*152*231mm
-
Weight:
-
3.3 KG
-
Aplicable Label Width::
-
15-120mm
-
Aplicable Label Length::
-
10-999mm
-
Max. OD of Roll::
-
250mm
-
feeding speed:
-
100mm/sec-200mm/sec ( 6 different speed)
-
Input voltage range:
-
10%
-
Adjustable range of tag holder:
-
20mm-180mm
-
Material:
-
ABS Resin
-
Accessory:
-
hexagon wrench
Quick Details
-
Application:
-
Machinery & Hardware
-
Packaging Type:
-
Cartons
-
Packaging Material:
-
Metal
-
Voltage:
-
100V-240V
-
Place of Origin:
-
Korea
-
Brand Name:
-
HONGJIN
-
Dimension(L*W*H):
-
163*152*231mm
-
Weight:
-
3.3 KG
-
Aplicable Label Width::
-
15-120mm
-
Aplicable Label Length::
-
10-999mm
-
Max. OD of Roll::
-
250mm
-
feeding speed:
-
100mm/sec-200mm/sec ( 6 different speed)
-
Input voltage range:
-
10%
-
Adjustable range of tag holder:
-
20mm-180mm
-
Material:
-
ABS Resin
-
Accessory:
-
hexagon wrench

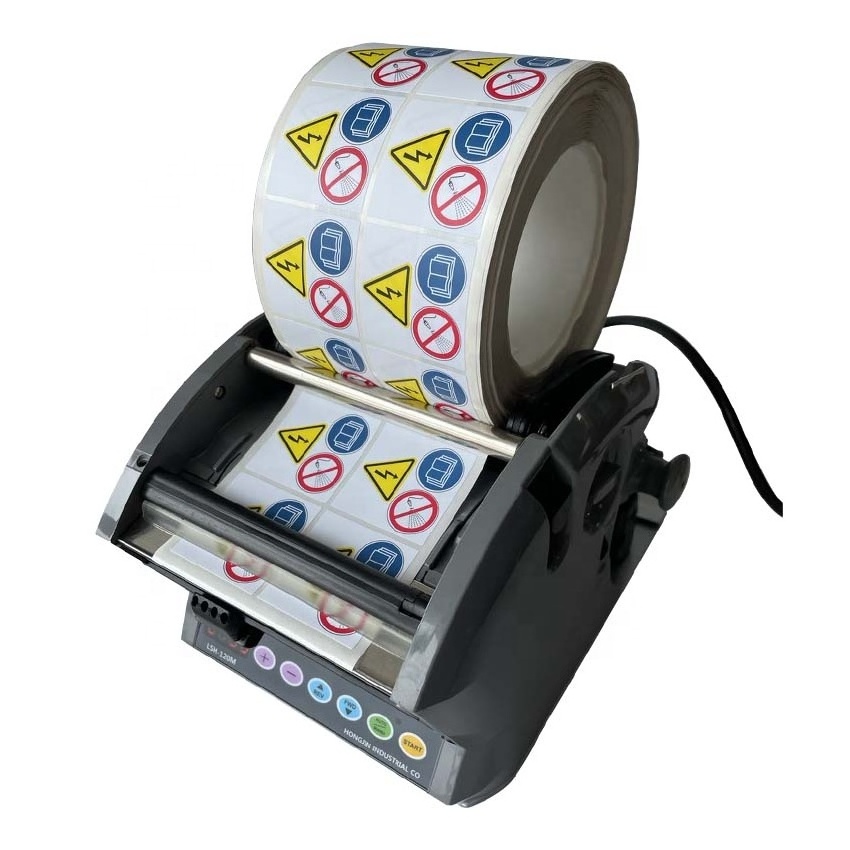

Auto label separator/automatic lable dispenser LSH-120
Features
* Ideal for small labels and small work areas
* Will dispense labels and die-cut parts
* Photosensor Accuracy and Reliability
* Electrically removes paper, vinyl,acetate, polyester, foil, etc. from its liner
* Electrically rewinds liner scrap for acleaner working environment
* No tools required for adjusting to different size labels
* No maintenance required
* High Torque Motor for large diameter label rolls
* Freature: LCD counter can show how many labels has been dispensed.
Specifications
|
Type |
LSH-60 |
LSH-120 |
LSH-180 |
|
Power requirement |
Free Volt(AC100-240) |
||
|
Input voltage range |
5% |
||
|
Power consumption |
40W |
45W |
50W |
|
Dimension (mm) |
103(W)*140(H)*216(D) |
163(W)*152(H)*231(D) |
223(W)*157(H)*241(D) |
|
Weight(kg) |
2.1 |
3.3 |
4.6 |
|
Material |
Special ABS resin |
||
|
Width of label(mm) |
15~60 |
15~120 |
15~180 |
|
Length of label(mm) |
10~999 |
||
|
Feeding speed |
Min: 100mm/sec Max: 200mm/sec *6step |
||
|
Diameter of roll |
∅200 |
∅250 |
∅300 |
|
Accessories |
L-wrench |
||
