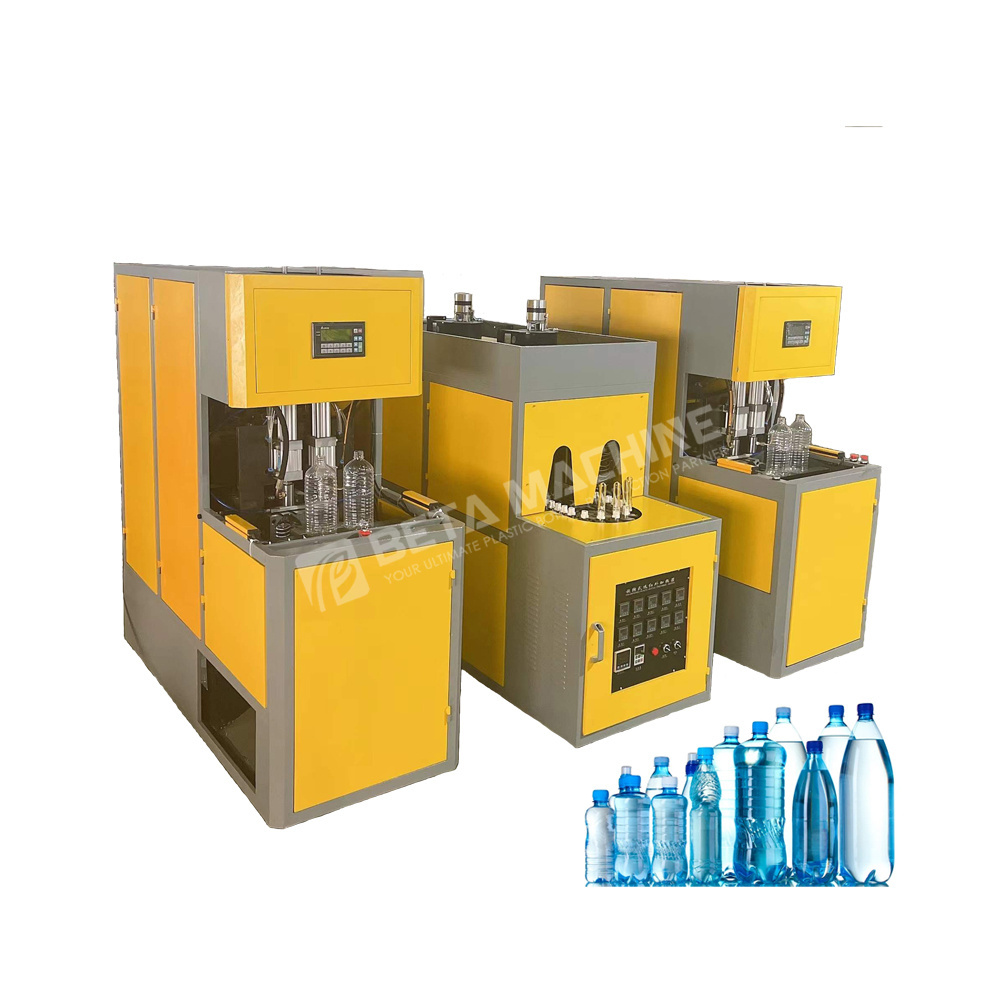

Semi Automatic PET Bottle Blowing Machine is suitable for producing PET plastic containers and bottles from
10-2000ml. It is widely used to produce the carbonated bottle ,mineral water,carbonated drink bottle, pesticide bottle oil bottle,cosmetics,wide-mouth bottle etc.
● Adopting double crank to adjust mould ,heavy locking mould, stable and fast ,Adopt infrared oven to heat the perform ,the
perform rotated and heated equally.
● The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements
for the action and blow .It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
● The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
● The machine can be operated in the step-by-step mode and the semi-auto mode.
● The machine is small with low investment, easy and safe to operate .
- Product Details
- {{item.text}}
Quick Details
-
Bottle Volume(ml):
-
1500 ml
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
BETA
-
Year:
-
2023
-
Voltage:
-
380V/50HZ or Customized
-
Dimension(L*W*H):
-
1.63*0.62*1.59M
-
Hollow part volume:
-
2000ML
-
Power (kW):
-
11
-
Weight (KG):
-
1000 KG
-
Keywords:
-
Semi Automatic Bottle Blowing Machine
-
Suitable bottle:
-
PET Bottle Size 0.2-2L
-
Blowing Type:
-
Stretch Blowing
-
Machine type:
-
PET Blowing
-
Bottle material:
-
PET / PP / PLA
-
Bottle type:
-
Round Square Bottle
-
Function:
-
Semi Auto Blow Molding
-
PLC:
-
MITISUBISHI
-
Product name:
-
Semi Automatic PET Bottle Blow Moulding Machine
Quick Details
-
Neck Diameter(mm):
-
38 mm
-
Max.Bottle Diameter(mm):
-
110 mm
-
Max.Bottle Height(mm):
-
365 mm
-
Bottle Volume(ml):
-
1500 ml
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
BETA
-
Year:
-
2023
-
Voltage:
-
380V/50HZ or Customized
-
Dimension(L*W*H):
-
1.63*0.62*1.59M
-
Hollow part volume:
-
2000ML
-
Power (kW):
-
11
-
Weight (KG):
-
1000 KG
-
Keywords:
-
Semi Automatic Bottle Blowing Machine
-
Suitable bottle:
-
PET Bottle Size 0.2-2L
-
Blowing Type:
-
Stretch Blowing
-
Machine type:
-
PET Blowing
-
Bottle material:
-
PET / PP / PLA
-
Bottle type:
-
Round Square Bottle
-
Function:
-
Semi Auto Blow Molding
-
PLC:
-
MITISUBISHI
-
Product name:
-
Semi Automatic PET Bottle Blow Moulding Machine
Product Description
Semi Automatic PET Bottle Blowing Machine Plastic Bottle Making Machine
Product Details
Blower
● Unique heating system, accurate temperature control and easy adjustment.
● Unique air storage unit.
● The cooling system achieves the desired cooling effect.
● Each action is driven by a cylinder instead of an oil pump, without contamination.
● Unique air storage unit.
● The cooling system achieves the desired cooling effect.
● Each action is driven by a cylinder instead of an oil pump, without contamination.
New Heating System
● The drying tunnel and the blowing platform are separated, which shortens the time for mold opening, increases the blowing speed
and increases the output.
● Compact design saves space, reduces investment costs and increases competitiveness.
● Advanced PLC control system, light and simple control panel.
and increases the output.
● Compact design saves space, reduces investment costs and increases competitiveness.
● Advanced PLC control system, light and simple control panel.
Preform heater temperature control
● Adopting double crank to adjust mould ,heavy locking mould, stable and fast ,Adopt infrared oven to heat the perform ,the
perform rotated and heated equally.
● The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements
for the action and blow .It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
perform rotated and heated equally.
● The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements
for the action and blow .It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
Electrical parts
● The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
● The machine can be operated in the step-by-step mode and the semi-auto mode.
● The machine is small with low investment, easy and safe to operate .
● The machine can be operated in the step-by-step mode and the semi-auto mode.
● The machine is small with low investment, easy and safe to operate .
Product Paramenters
|
Model
|
NB-100
|
NB-500
|
NB-1000A
|
NB-1000B
|
|
Cavities
|
1
|
1-2
|
2
|
2*2
|
|
Capacity
|
80-220
|
400-800
|
800-1000
|
1600-2000
|
|
Bottle volume
|
10-25L
|
3-5L
|
0.2-1.5L
|
0.2-1.5L
|
|
Bottle diameter
|
350mm
|
170mm
|
50-110mm
|
50-110mm
|
|
Max bottle height
|
520mm
|
380mm
|
365mm
|
365mm
|
|
Preform inner diameter
|
45-65mm
|
28-48mm
|
26-38mm
|
26-38mm
|
|
Installation power
|
35kw
|
45kw
|
35kw
|
30kw
|
|
Machine size(M)
|
2.19*0.74*1.9
|
1.9*0.8*1.7
|
1.63*0.62*1.59
|
1.63*0.62*1.59
|
|
Machine weight
|
1200kg
|
750kg
|
650kg
|
650kg
|
