Quick Details
-
Model Number:
-
k2
-
Product Name:
-
BLE access control
-
Sizes:
-
L 125MM *W 79MM* H 15.55mm
-
Material:
-
Zinc alloy and Aryclic keypad
-
Power supply:
-
DC12V
-
Unlock method:
-
app, code , card
-
Card capacity:
-
20,000 pcs
-
Fingerprint Capacity:
-
120pcs
-
Accessories included:
-
reader only
-
Feature:
-
Waterproof
-
Color:
-
Black
Quick Details
-
Door Type:
-
Glass door, Wood door
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ZIYUE
-
Model Number:
-
k2
-
Product Name:
-
BLE access control
-
Sizes:
-
L 125MM *W 79MM* H 15.55mm
-
Material:
-
Zinc alloy and Aryclic keypad
-
Power supply:
-
DC12V
-
Unlock method:
-
app, code , card
-
Card capacity:
-
20,000 pcs
-
Fingerprint Capacity:
-
120pcs
-
Accessories included:
-
reader only
-
Feature:
-
Waterproof
-
Color:
-
Black

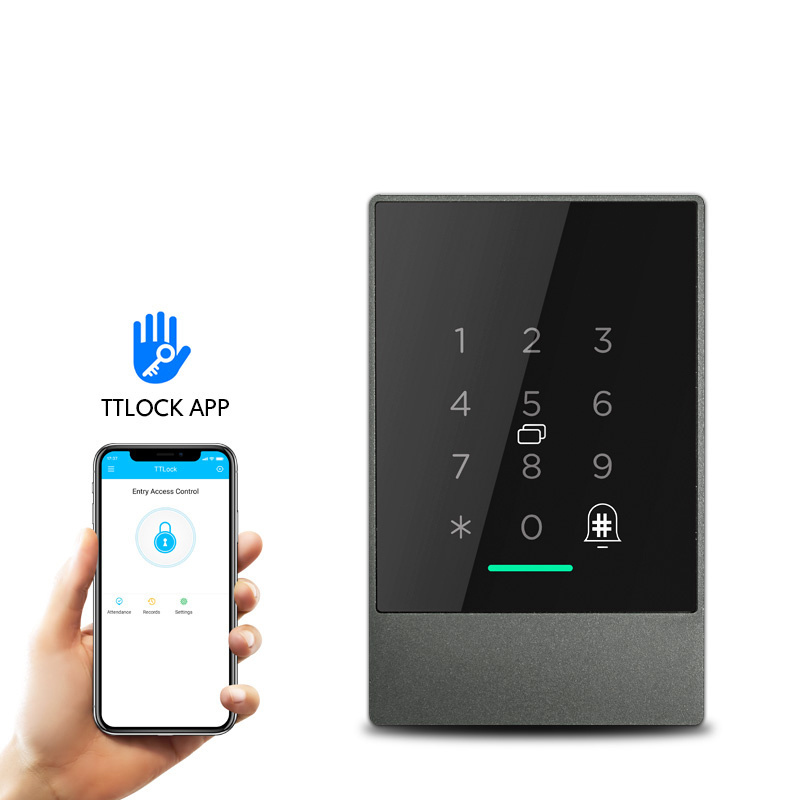

Waterproof TTLock APP Security WiFi Keypad BLE Smart Card Access Control Reader
Technicial Specification:
Sizes: L 125MM *W 79MM* H 15.55mm
Material: Zinc alloy and Aryclic keypad
Power supply: DC12V
Unlock method: app, code , card
Card capacity: 10,000 pcs
Please noted that we sell reader only, other magnetic parts are not included.
Features
1. Unlocking :App+ Password+card
2. App management,password are generated from app and can be setted to limited by time
3. Date starage in cloud service
User can be added or deleted remotely
4 Attendace records can be checked remotely
History can be checked remotely
5. One app can manage many systems
Easy to upgradte from normal door access system to BLE smart door access system
6. Share eKeys via APP with different levels of authorization.
7 Keypad protection:Keypad is locked for 5 minutes after 5 times entry of wrong passcode.
Psuedo passcode:Key in any digits, the lock is unlocked if the last digits comprise of the real passcode.
8. Auto-lock:Auto lock within 5 seconds of unlocking.
9. Real time monitoring: Administrator receives a push notification when a user unlocks with App.
Log in with a different mobile: When log in with a different mobile, the previous one logs out automatically.
10. Message notification: A message is pushed to the previous Administrator when the lock is reset.
TECHNICAL SPECIFICATION:
| Model | K2. K3 |
| Dimension | W79mm*H125mm*T15.5mm |
| Material | Aluminum frame/tempered glass panel |
| Communication mode | BLE 4.1 |
| Support system | IOS 7.0 or above, Android 4.3 or above |
| Standby current | 5mA |
| Operationg current | 1A |
| Unlocking time | 1.5S |
| Waterproof level |
IP66 |
| Card capacity |
20,000 |
| Fingerprint capacity (optional) | 120 |
| OEM/ODM Serivces | yes |
| MOQ for Logo | 100 |
| MOQ for package | 500 |
| Inner Single box sizes | 145*85*4mm |
| Outer Carton box | 435*335*285mm |
| Single lock gross weight | 0.5kg |
| Packing quantity of each carton | 12pcs |
| Package details | Carton box with EPE inside |
