Quick Details
-
Processor Core:
-
6 Core
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Yanling
-
Model Number:
-
N3322
-
Power:
-
15W
-
RAM Type:
-
DDR5
-
Chipset Type:
-
NO
-
Video Memory:
-
NO
-
Video Card:
-
Intel(R) UHD Graphics
-
Material:
-
High quality all aluminium
-
Processor:
-
Intel Core i5-1235U
-
Display port:
-
3*HD 4K display port
-
Network:
-
3*Intel i225-V 2.5G Lan
-
RAM:
-
1*DDR5 4800 memory slot,Max. 32 GB
-
COM:
-
2*COM(support 2*RS232/RS485 )
-
USB Port:
-
4*USB 3.1 Port
-
Working Temp.:
-
-20℃ -- +50℃
-
Dimension:
-
170 * 140 * 58 mm
-
Type:
-
mini pc with sim card
Quick Details
-
Use:
-
For Business
-
Hard Drive Type:
-
SSD+HDD
-
Video Memory Type:
-
NO
-
Processor Core:
-
6 Core
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Yanling
-
Model Number:
-
N3322
-
Power:
-
15W
-
RAM Type:
-
DDR5
-
Chipset Type:
-
NO
-
Video Memory:
-
NO
-
Video Card:
-
Intel(R) UHD Graphics
-
Material:
-
High quality all aluminium
-
Processor:
-
Intel Core i5-1235U
-
Display port:
-
3*HD 4K display port
-
Network:
-
3*Intel i225-V 2.5G Lan
-
RAM:
-
1*DDR5 4800 memory slot,Max. 32 GB
-
COM:
-
2*COM(support 2*RS232/RS485 )
-
USB Port:
-
4*USB 3.1 Port
-
Working Temp.:
-
-20℃ -- +50℃
-
Dimension:
-
170 * 140 * 58 mm
-
Type:
-
mini pc with sim card
This link's price is barebone system price,doesn't include ram and hard disk, WiFi and BT, if you need them, please contact us, we will give you the best price.

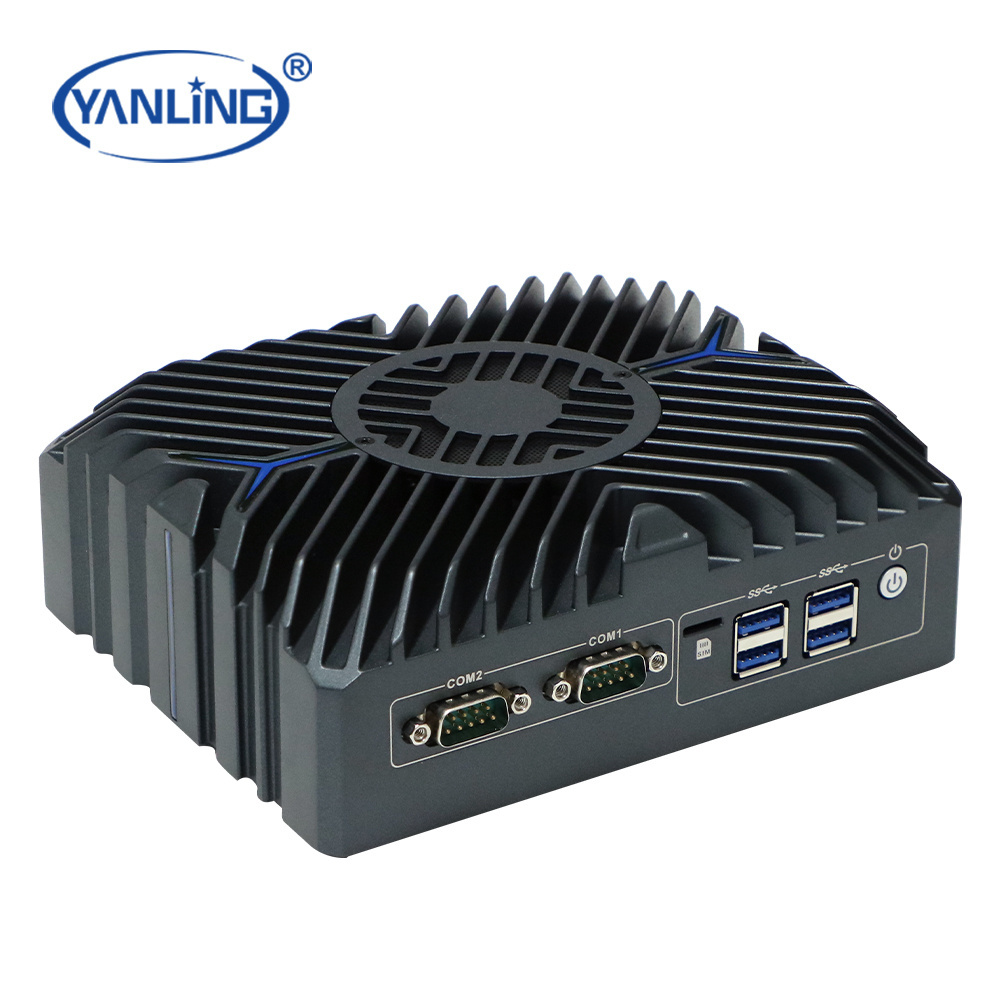

Powerful 12th gen mini pc i5 1235U usb 2 and usb3 m.2 nvme ssd micro computer with sim card slot
|
Model
|
N3322
|
|
Color
|
Metallic Black (color can be customized)
|
|
Material
|
High-quality all aluminum
|
|
Processor
|
Intel
Core i3 1215U
（Six core Eight threads，Turbo. 4.4 GHz）
|
|
|
Intel
Core i5 1235U
（Ten core Twelve threads，Turbo. 4.4 GHz）
|
|
|
Intel
Core i7 1255U
（Ten core Twelve threads，Turbo. 4.7 GHz）
|
|
Memory
|
1*DDR5 4800 SODIMM memory slot，Max. 32 GB
|
|
BIOS
|
AMI EFI BIOS
|
|
Chipset
|
Intel(R) UHD Graphics
|
|
Display port
|
3*HD with 4K ，Support Synchronous or asynchronous display，Max.4096x2160@Hz
|
|
Front I/O
|
2*COM support RS232/RS485 ,1*SIM slot,4*USB3.1,1*Power button
|
|
Rear I/O
|
1*DC port，3*HD，3*Intel 2.5G Lan，1*audio interface(2-in-1),4 Antenna holes
|
|
Expansion Port
|
Support 1*M.2 2280 M-Key slot（NVME）
|
|
|
1*M.2 3052 B-key slot（USB3.0 signal，support 4G/5G），External SIM card slot
|
|
|
Support 1*M.2 2230 E-key slot（support WIFI,BT）
|
|
Network
|
3*Intel i225-V 2.5G Lan
|
|
Power Supply
|
DC 12V
|
|
Storage
|
1*M.2 2280 slot，1*2.5inch HDD
|
|
Other Function
|
Power-on, timed startup, network wake up, PXE startup, watchdog (level 0-255), TPM2.0 security encryption
|
|
Work Temp
|
0℃ -- +40℃（business HDD），-20℃ -- +50℃（industrial SSD），Surface air flow
|
|
Work Humidity
|
5% ～ 95% non-condensing
|
|
Dimension
|
170 * 140 * 58 mm
|
|
Weight
|
1.1 kg
|
|
Application
|
Industrial Control, Industrial Automation, Robot, IoT gateway, Edge computing, Machine Vision, AGV/ARM, etc.
|
