Quick Details
-
Model Number:
-
SC-77W
-
Place of Origin:
-
Jiangsu, China
-
Power:
-
5HP/5.5HP/6HP
-
Dimension(L*W*H):
-
880X530X670mm
-
Weight:
-
80 kg
-
Engine:
-
Gasoline, Diesel, EY20/GX160/G160F
-
Product name:
-
Excalibur plate compactor
-
Plate Size:
-
560X475mm
-
Centrifugal force:
-
13.5kn
-
Vibrating frequency:
-
5600hz
-
Compaction depth:
-
30cm
-
Travel Speed:
-
15-20m/min
-
Color:
-
Clients Requirements
-
Starting System:
-
Recoil Starter
-
Usage:
-
Flat Plate Vibratory Tamping
Quick Details
-
Marketing Type:
-
Hot Product 2022
-
Application:
-
Compaction
-
Brand Name:
-
Excalibur
-
Model Number:
-
SC-77W
-
Place of Origin:
-
Jiangsu, China
-
Power:
-
5HP/5.5HP/6HP
-
Dimension(L*W*H):
-
880X530X670mm
-
Weight:
-
80 kg
-
Engine:
-
Gasoline, Diesel, EY20/GX160/G160F
-
Product name:
-
Excalibur plate compactor
-
Plate Size:
-
560X475mm
-
Centrifugal force:
-
13.5kn
-
Vibrating frequency:
-
5600hz
-
Compaction depth:
-
30cm
-
Travel Speed:
-
15-20m/min
-
Color:
-
Clients Requirements
-
Starting System:
-
Recoil Starter
-
Usage:
-
Flat Plate Vibratory Tamping
Application

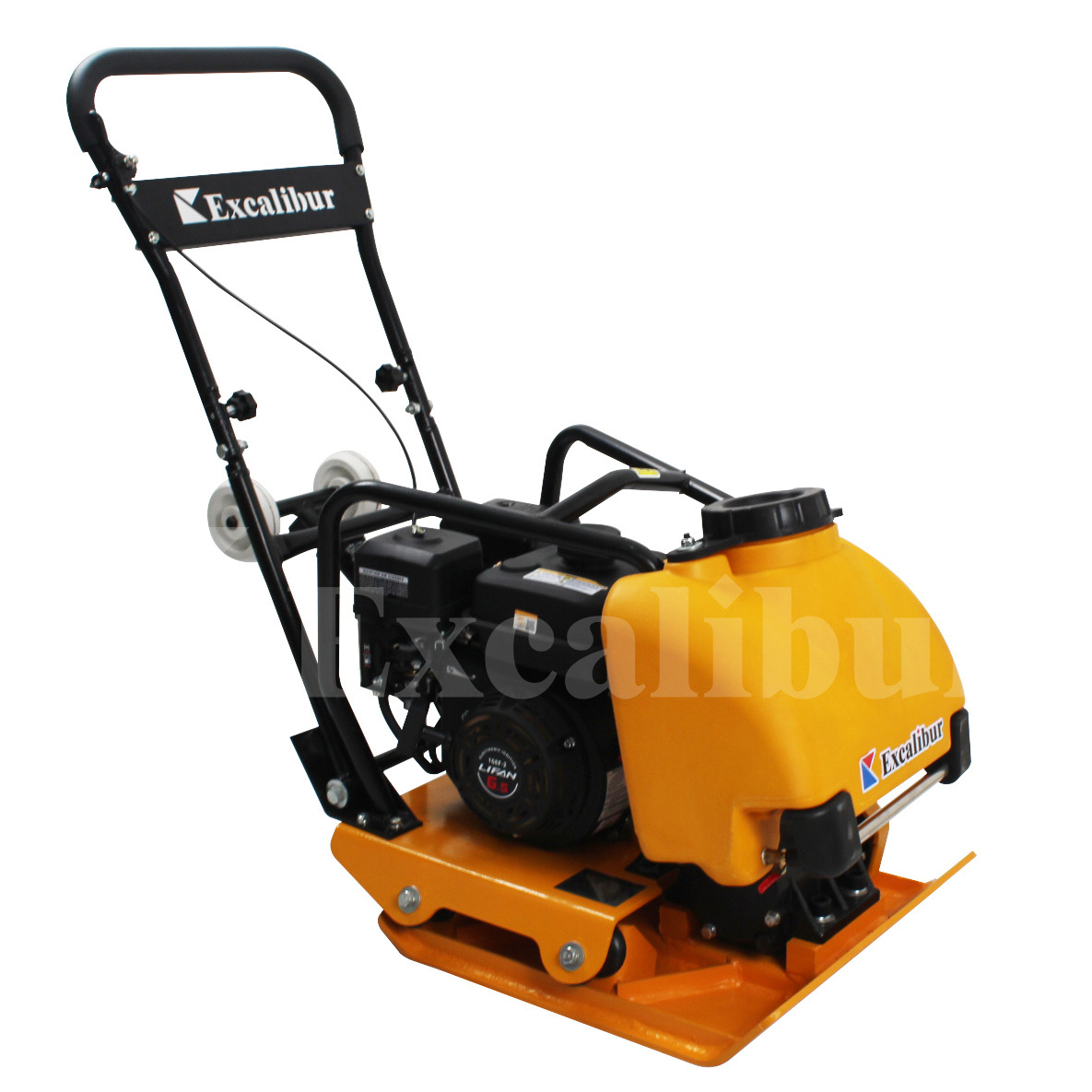

Excalibur Construction Forward Plate Compactor with water tank
The plate compactor is widely used in the compaction of soil, asphalt roads, sidewalks, bridges, and narrow fields.
Product Overview
Product Description for Plate Compactor
◆ The Plate Compactor is made of high strength steel, the bottom plate with curved edges guarantees the stable operation
◆ Hardened and enclosed pulley cover design protects the clutch and belt
◆ The strong protecting framework not only prevents the engine frame from impact, but also makes easier carry
◆ The foldable handle with unique design saves more storage space.The humanization design of the shock pad dramatically reduces
the of operation vibration of the handle,which increases the comfort
◆ Hardened and enclosed pulley cover design protects the clutch and belt
◆ The strong protecting framework not only prevents the engine frame from impact, but also makes easier carry
◆ The foldable handle with unique design saves more storage space.The humanization design of the shock pad dramatically reduces
the of operation vibration of the handle,which increases the comfort
Product Paramenters
|
Plate Compactor Model
|
SC-50
|
SC-60
|
SC-77
|
SC-77W
|
SC-90
|
SC-100
|
SC-140
|
|||||
|
Plate size L*W (mm)
|
535*290
|
570*370
|
570*370
|
560*475
|
570*450
|
708*450
|
630*500
|
|||||
|
Travel speed (m / min)
|
15-20
|
20-25
|
15-20
|
15-20
|
15-20
|
15-20
|
15-20
|
|||||
|
Limited grade ability
|
20
|
20
|
20
|
20
|
20
|
20
|
20
|
|||||
|
Vibration Frequency vpm(Hz)
|
5600
|
5600
|
5600
|
5600
|
5600
|
5600
|
5600
|
|||||
|
Centrifugal force (KN)
|
10
|
10
|
10.5
|
13.5
|
13
|
20
|
30
|
|||||
|
Engine model Option
|
Lifan 154F @ 1.4kW (3HP) 4 cycle Gasoline Engine
|
Honda GX160@4.1kW (5.5HP) 4 cycle Gasoline Engine
Robin EY20-3C @3.7KW (5HP) 4 cycle Gasoline Engine
Lifan G160F @4.1kW (5.5HP) 4 cycle Gasoline Engine
Diesel Engine D173F @4.4kW (6.0HP)
|
|
|
|
|
|
|||||
|
Starting system
|
Recoil starter
|
Recoil starter
|
|
|
|
|
|
|||||
|
Packing size (L*W*H) mm
|
740*360*550
|
890*430*660
|
850*530*670
|
880*530*670
|
580*470*650
|
700*480*580
|
670*500*800
|
|||||
|
Net weight (KG)
|
51
|
69
|
75
|
80
|
80
|
97
|
110
|
|||||
Recommend Products
Excalibur HOT Plate Compactor Models
Packing & Shipping
All Excalibur Plate Compactors are packed in strong
7-layer cartons.
For reversible plate compactors, we use
iron frame
packing together with 7-layer cartons.
