Aluminium alloy Enclosure, high voltage electrostatic powder coated after shot blasted.
High strength toughened glass cover. BPY easy maintenance Explosion proof LED lamp
Exposed fasteners are of stainless steel with function of high corrosion-proof.
With grids to adjust lighting effect and reduce the glare.
Modular plug structure design, only need disconnect end cover draw out core to change tubes.
For fitting with emergency unit, It will automatically turn to emergency lighting when power circuit failed.
Inside the emergency unit designed with over charging and over discharging protection circuit.
Screw connection type, for easy installation and maintenance.
Power factor can be over 0.95.
Steel conduit or cable wiring.
- Product Details
- {{item.text}}
Quick Details
-
Input Voltage(V):
-
90-265V
-
CRI (Ra>):
-
85
-
Working Temperature(℃):
-
-30 - 45
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
HKV
-
Model Number:
-
HKV-FBY006
-
Model:
-
T8 single tube
-
Light Efficiency:
-
110lm/w
-
CCT:
-
2700K-6500K
-
Lifespan:
-
50000hours
-
PF:
-
0.96
-
Power:
-
1x9W, 1X10W, 1x18W,1x20W
-
Battery charging time:
-
≤24h
-
Emergency Start time:
-
≤0.3s
-
Emergency lighting duration:
-
≥90min
Quick Details
-
Warranty(Years):
-
2
-
Lamp Luminous Efficiency(lm/w):
-
100
-
Lamp Body Material:
-
Aluminum
-
Input Voltage(V):
-
90-265V
-
CRI (Ra>):
-
85
-
Working Temperature(℃):
-
-30 - 45
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
HKV
-
Model Number:
-
HKV-FBY006
-
Model:
-
T8 single tube
-
Light Efficiency:
-
110lm/w
-
CCT:
-
2700K-6500K
-
Lifespan:
-
50000hours
-
PF:
-
0.96
-
Power:
-
1x9W, 1X10W, 1x18W,1x20W
-
Battery charging time:
-
≤24h
-
Emergency Start time:
-
≤0.3s
-
Emergency lighting duration:
-
≥90min

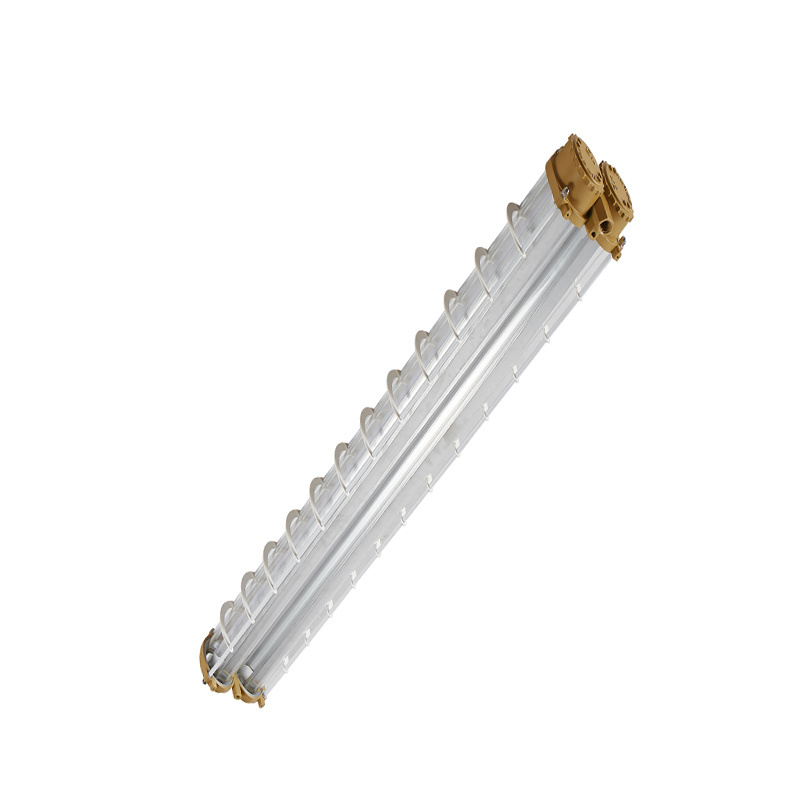

2x18w double tube explosion-proof fluorescent lamp T8 Led Tube Light 1.2M Light
|
Power
|
1x9W
|
1x10W
|
1x18W
|
1x20W
|
|
Input Voltage
|
AC90-265V
|
AC90-265V
|
AC90-265V
|
AC90-265V
|
|
Power Factor
|
≥0.96
|
≥0.96
|
≥0.96
|
≥0.96
|
|
Luminous Flux (LM)
|
>810
|
>900
|
>1620
|
>1800
|
|
Luminous Efficiency
|
90-110lm/w
|
90-110lm/w
|
90-110lm/w
|
90-110lm/w
|
|
CCT
|
3000-6000K
|
3000-6000K
|
3000-6000K
|
3000-6000K
|
|
CRI
|
Ra ≥ 85
|
Ra ≥ 85
|
Ra ≥ 85
|
Ra ≥ 85
|
|
Operating Temperature
|
-30°C ~ +45°C
|
-30°C ~ +45°C
|
-30°C ~ +45°C
|
-30°C ~ +45°C
|
|
IP Rating
|
IP54, IP65, IP66
|
IP54, IP65, IP66
|
IP54, IP65, IP66
|
IP54, IP65, IP66
|
|
Lifespan
|
>50000 hours
|
>50000 hours
|
>50000 hours
|
>50000 hours
|
|
Cable outer dia
|
6mm~10mm
|
6mm~10mm
|
6mm~10mm
|
6mm~10mm
|
|
Charging time
|
≤ 24 h
|
≤ 24 h
|
≤ 24 h
|
≤ 24 h
|
|
Emergency Start time
|
≤0.3s
|
≤0.3s
|
≤0.3s
|
≤0.3s
|
|
Emergency lighting duration
|
≥90min
|
≥90min
|
≥90min
|
≥90min
|
Feature:
Aluminium alloy Enclosure, high voltage electrostatic powder coated after shot blasted.
High strength toughened glass cover. BPY easy maintenance Explosion proof LED lamp
Exposed fasteners are of stainless steel with function of high corrosion-proof.
With grids to adjust lighting effect and reduce the glare.
Modular plug structure design, only need disconnect end cover draw out core to change tubes.
For fitting with emergency unit, It will automatically turn to emergency lighting when power circuit failed.
Inside the emergency unit designed with over charging and over discharging protection circuit.
Screw connection type, for easy installation and maintenance.
Power factor can be over 0.95.
Steel conduit or cable wiring.
Suitable for explosive gas environment Zone1 and Zone2.
Suitable for IIA,IIB,IIC explosive gas environment.
Suitable for Hazardous dust area: Zone20, Zone21, Zone22.
Can be used in the environment of temperature group for T1~T6.
Lighting source: T8 tube.
Designed for petroleum explosion, refinery, storage, chemistry, medicine, military etc. sites with potential explosive atmosphere.
