Round cattle pen cattle panels cattle yard portable livestock panels for sale

Round cattle pen cattle panels cattle yard portable livestock panels for sale

FOB Reference Price: Get Latest Price

≥1 Pieces

US $28.47

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: XM

Model Number:: XMM-CP

Metal Type:: iron&steel

Name::: Round cattle pen

sample::: free

Certifications::: ISO 9001:2008, BV, CE

Popular size::: 1.8m x2.07m,1.8m x2.09m,1.6m x2.09m

Oval rails:: 30x60mm,40x80mm, 115x42mm

Fence post:: 40x40mmRHS ,50x50mmRHS

Caps:: fully welded

Lugs:: U and L lugs

Surface treatment:: Hot-dip galvanzied

Main Market:: Australia ,New Zealand,American,etc

Quick Details

Frame Material:: Metal

Feature:: Easily Assembled, ECO FRIENDLY, Rot Proof, Waterproof

Place of Origin:: Hebei, China

Brand Name:: XM

Model Number:: XMM-CP

Metal Type:: iron&steel

Name::: Round cattle pen

sample::: free

Certifications::: ISO 9001:2008, BV, CE

Popular size::: 1.8m x2.07m,1.8m x2.09m,1.6m x2.09m

Oval rails:: 30x60mm,40x80mm, 115x42mm

Fence post:: 40x40mmRHS ,50x50mmRHS

Caps:: fully welded

Lugs:: U and L lugs

Surface treatment:: Hot-dip galvanzied

Main Market:: Australia ,New Zealand,American,etc

Round cattle pen cattle panels cattle yard portable livestock panels for sale

Application of cattle fence panel,

The fence panel is widely used in the pasture, especially for the horse, cattle and other large animals. It can be used to separate the animals and make square and round pen.

Product Description

Cattle Panel Specification

Material	Pre hot dipped galvanized steel pipe
Zinc coating	More than 15 microns
Welding	Fully welded post & brackets, heavy duty hinges
Welds	Each rail/bar is fully welded, and protected with epoxy paint
Accessories	Steel caps, lugs, feet and 2 pins

1. Oval Pipe Style Specification:

Material	Pre hot dipped galvanized steel pipe
Zinc coating	More than 15 microns
Size	Height: 1.6m, 1.8m, etc. Length: 2.07m, 2.09m, 2.1m, etc.
Vertical pipe	50 x 50mm RHS x 1.6mm thickness 40 x 40mm RHS x 1.6mm thickness
Horizontal rails	30x60mm oval rail x 1.6mm thickness 40x80mm oval rail x 1.6mm thickness 40x120mm oval rail x 1.6mm thickness
Rails	1.8m height with 6 bars/rails 1.6m height with 5 bars/rails

Panel oval pipe

2. Round Pipe Style Specification:

Size	Height: 1.6m, 1.8m, etc. Length: 2.07m, 2.09m, 2.1m, etc.
Vertical pipe	32mm O.D x 1.6mm thickness 42mm O.D x 1.6mm thickness
Horizontal rails	32mm O.D x 1.6mm thickness 42mm O.D x 1.6mm thickness
Rails	1.8m height with 6 bars/rails 1.6m height with 5 bars/rails

Panel round pipe

3. Square Pipe Style Specification:

Material	Pre hot dipped galvanized steel pipe
Zinc coating	More than 15 microns
Size	Height: 1.6m, 1.8m, etc. Length: 2.07m, 2.09m, 2.1m, etc.
Vertical pipe	50 x 50mm RHS x 1.6mm thickness 40 x 40mm RHS x 1.6mm thickness
Horizontal rails	50 x 50mm RHS x 1.6mm thickness 40 x 40mm RHS x 1.6mm thickness
Rails	1.8m height with 6 bars/rails 1.6m height with 5 bars/rails

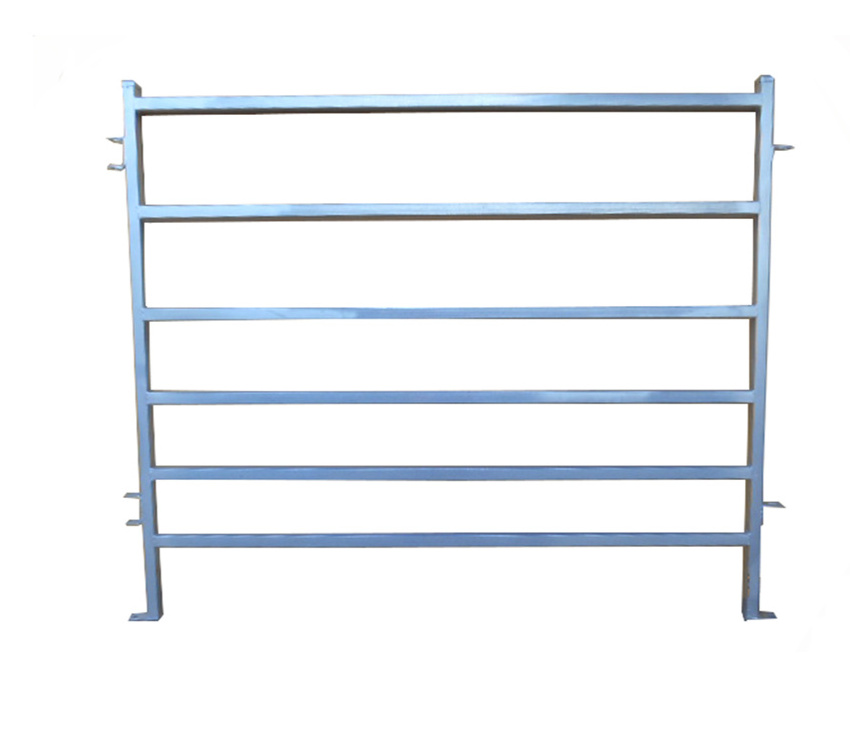

Panel square pipe

4. Gate Specification:

Cattle Panel Gate	2200mm x 2000mm (Height x Length)
Frame	Horizontal & Vertical pipe: 50 mm x 50 mm RHS x 1.8mm thickness with fully welded caps
Cattle Gate Horizontal Rails	40mm x 80mm x 1.6mm thickness, 6 pieces oval rails
Man Gate	Size: 2200mm x 750mm (Height x Inner Width) Pipe: 50 x 50 x 2mm
Finishing	Pre hot dipped galvanized material Zinc coating: more than 15 microns Fully welded oval pipes, post & brackets, heavy duty hinges

Features of cattle panels,

Portable: simple and fast to install make the panel quite flexible.
Strong:
- High quality steel pipe and 360 degree fully welded make the fence very strong.
- High zinc or PVC coated makes the fence durable.
- Chain lock can make the fence panel together stable.
- Highly stand the crash of horse.
Protection:
- Connected with welded bracket lugs and join pins. No need to dig holes and lay foundations, protect the grassland.
- No sharp spearhead, smoothly welded. Different spacing of each horizontal rail avoids the horse fence head and feet damaged.
Anti-rust: hot galvanized pipe makes the fence difficult to rust and the vertical rails are welded with metal cap to prevent rust inside.
Maintenance: our hot dipped galvanized horse fence panel can apply for 10-15 years. During the application, if the fence panel paint is removed carelessly you can recover it simply and quickly. Besides the fence panel is not easy to be damaged by horse. The fence panel should keep away the chemistry and alkaline materials and the acid rain.

Image details:

Pins and lugs: lugs includes double lug and single lug.
Double lug size: 40mm wide × 120mm high with two 16 × 25mm holes.
Single lugs size:Pins size: 14mm diameter and 170mm long.
- 40mm wide and 60mm high.
- with two 16 × 25mm holes.

Other related products for cattle horse yard

Production process of cattle panels

Galvanized pipes cutting----welding the pipe together----polishing welds---painting anti-rust paint on the welds----sparying silver painted- steel pallets packed

Package and Shipping of cattle yard panels

Package on steel pallets for easy unloading.

Shipping by sea from Tianjin Xin'gang port to any port of you prefer
