Quick Details
-
Application:
-
Building
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Youxintong
-
Dimension(L*W*H):
-
1400*750*1300
-
Weight:
-
720 kg
-
Power:
-
5.5/7.5KW
-
Product name:
-

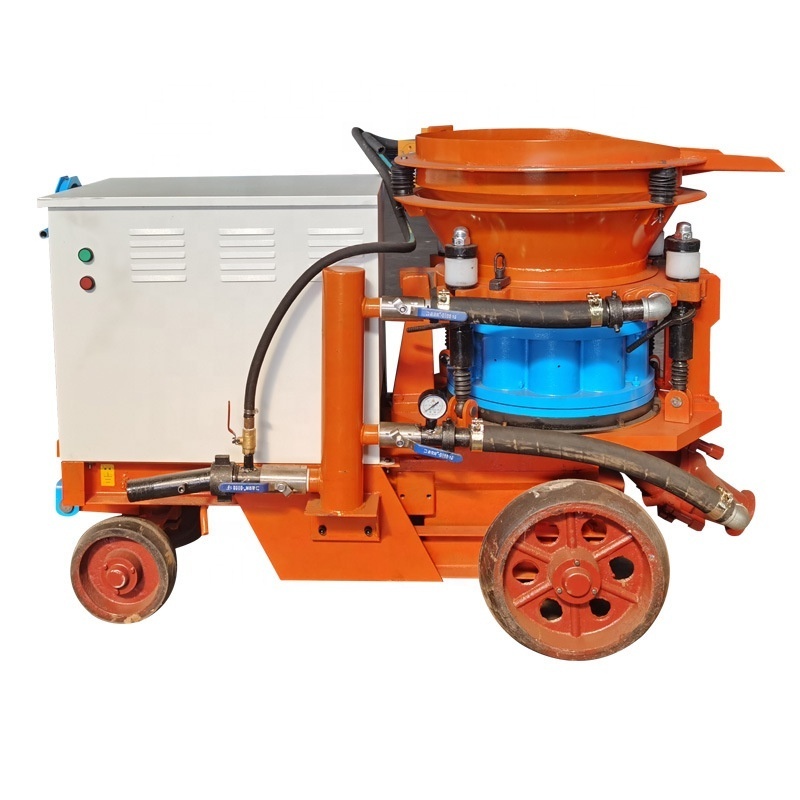

Shotcrete Concrete Spraying Machines
-
Weight (kg):
-
850
-
Capacity (cubic m/h):
-
5
-
Tube Diameter (mm):
-
51
-
Discharge Head (Horizontal):
-
200m
-
Max Aggregate (mm):
-
20
-
Compressed Air Consumption:
-
10-15m3/min
-
Air Pressure (mpa):
-
0.4-0.6
-
Motor Power(kw):
-
5.5
-
Rotor Diameter (mm):
-
438
Quick Details
-
Max. vertical conveying distance:
-
200M
-
Max. horizontal conveying distance:
-
20MM
-
Hopper Capacity:
-
100L
-
Application:
-
Building
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Youxintong
-
Dimension(L*W*H):
-
1400*750*1300
-
Weight:
-
720 kg
-
Power:
-
5.5/7.5KW
-
Product name:
-
Shotcrete Concrete Spraying Machines
-
Weight (kg):
-
850
-
Capacity (cubic m/h):
-
5
-
Tube Diameter (mm):
-
51
-
Discharge Head (Horizontal):
-
200m
-
Max Aggregate (mm):
-
20
-
Compressed Air Consumption:
-
10-15m3/min
-
Air Pressure (mpa):
-
0.4-0.6
-
Motor Power(kw):
-
5.5
-
Rotor Diameter (mm):
-
438
Product Description
Concrete jet is a kind of mechanical equipment that sprays concrete mixture directly to the surface or structure of a building, so that the surface of the building is strengthened or a new structure is formed.
Specification
|
Dry Shotcrete Machine(Engineering oriented shotcrete machine)
|
|
|
|
|||
|
Model
|
Yxt-D5
|
Yxt-D6
|
Yxt-D7
|
|||
|
Product capacity
|
3m³/h
|
6m³/h
|
7m³/h
|
|||
|
Maximum delivery distance
|
200m
|
200m
|
200m
|
|||
|
Practical material water-cement ratio
|
<0.4
|
<0.4
|
<0.4
|
|||
|
Biggest bone grain size of fire
|
20mm
|
20mm
|
20mm
|
|||
|
Rotor block
|
350mm
|
440mm
|
480mm
|
|||
|
Working pressure
|
0.4-0.6mpa
|
0.4-0.6mpa
|
0.4-0.6mpa
|
|||
|
Blast consumption
|
3-4m³/h
|
6-8m³/h
|
7-8m³/h
|
|||
|
Motor power
|
3kw
|
5.5kw
|
7.5kw
|
|||
|
Dimension
|
1040*550*950
|
1300*705*1300
|
1600*750*1200
|
|||
|
Weight
|
260kg
|
600kg
|
700kg
|
|||
|
Wet Shotcrete Machine (Engineering oriented shotcrete machine)
|
|
|
||
|
Model
|
Yxt-W5
|
Yxt-W7
|
||
|
Product capacity
|
5m³/h
|
7m³/h
|
||
|
Lift
|
Horizontal 30m, vertical 20m
|
Horizontal 30m, vertical 20m
|
||
|
Maximum particle diameter
|
15mm
|
15mm
|
||
|
Motor power
|
5.5kw
|
7.5kw
|
||
|
Weight
|
700kg
|
800kg
|
||
|
Dimension
|
1280*700*1280mm
|
2000*800*1300mm
|
||
The advantages of concrete shotcrete machine analysis:
1, the resilience of concrete shotcrete machine is low, dry spraying, concrete resilience can reach 15%-50%, and the resilience rate can be reduced to less than 10%.
2, the wet spraying of concrete shotcrete machine, because the water-cement ratio is easy to control, the degree of hydration of concrete is high, it can greatly improve the quality of shotcrete, improve the uniformity of concrete, and dry spraying, the water-cement ratio of concrete is adjusted by the spray hand according to experience and visual inspection, the quality of concrete depends on the correct operation of the machine to a large extent.
3, the concrete shotcrete machine greatly reduces the dust concentration beside the machine and outside the nozzle, eliminating the harm to the health of workers.
4, concrete shotcrete machine productivity is high, dry concrete shotcrete machine generally does not exceed 5m3/h. While using wet concrete jet, manual operation can reach 10m3/h; When the manipulator is used, it can reach 20m3/h.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
