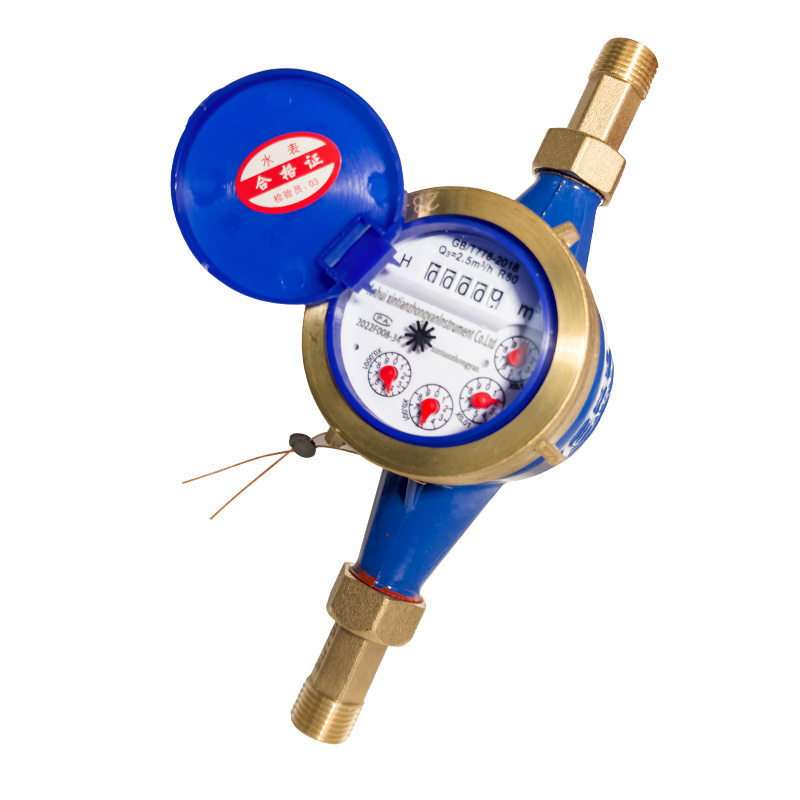

Original design mechanical Wet water meter
Original design mechanical Wet water meter
Original design mechanical Wet water meter
Original design mechanical Wet water meter
Original design mechanical Wet water meter
Original design mechanical Wet water meter
Original design mechanical Wet water meter
Original design mechanical Wet water meter

Original design mechanical Wet water meter

FOB Reference Price: Get Latest Price
≥5 Pieces
US $30
≥50 Pieces
US $28
≥100 Pieces
US $26
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Model Number:
LXSY
Material:
Brass Body
Standard:
ISO-9001
Color:
White
Name:
XTZY
Accuracy:
class 1
Communication mode:
RF Card
Nominal Diameter:
DN15-DN500
Product name:
Rotary wing wet water meter
Size:
DN15 20 25

Quick Details

Warranty:
3 years
Place of Origin:
Anhui, China
Brand Name:
XTZY
Model Number:
LXSY
Material:
Brass Body
Standard:
ISO-9001
Color:
White
Name:
XTZY
Accuracy:
class 1
Communication mode:
RF Card
Nominal Diameter:
DN15-DN500
Product name:
Rotary wing wet water meter
Size:
DN15 20 25
Product Overview

Rotary wing wet water meter

manufactuer‘s direct sales work guarantees processing customization
FEATURES AT A GLANCE
1. Traffic calculation
The main function of the ordinary mechanical water meter is to measure the amount of water flowing through the meter, and convert the water flow into mechanical movement through the internal mechanism and transmission device, and finally show it through the display device. Its accuracy is high, the error is small, generally about plus or minus 5%. Users can know their water consumption according to the reading on the water meter, and arrange the water time and water use accordingly.
2. Display the cumulative water consumption
Ordinary mechanical water meters can also show the cumulative water consumption, the water consumption per unit time will be added up, and returned to the mechanism part, calculate the total water consumption, displayed on the water meter. Users can judge their actual water use by this value and make reasonable savings
Figure 1
Figure 2
Figure 3
PRODUCT SPECIFICATIONS
Project
Technical Parameter
Data
Nominal diameter DN
15
20
25
32~150
Minimum flow Q1 (m³/h)
0.03
0.05
0.07
0.12~16
Boundary flow Q2 (m³/h)
0.048
0.08
0.28
0.48~64
Common flow rate Q3 (m³/h)
2.5
4
6.3
12~400
Overall dimensions (mm) (Long × wide × High)
110×83×112
130×83×112
160×83×112
See actual size
Connecting thread
G1/2
G1
G1 1 /4
DN32:G1 1 /2DN40:G1 3 /4
DN50 and above are flange connections
Maximum reading of flow rate (m³)
99999.9
60kN
Accuracy Class
Class 1
6750ml
Pressure Loss
<25kPa
500N.m
Working Pressure (Mpa)
≤1MPa
Conditions of Use
Medium temperature of cold water meter: 0 ℃~40 ℃; Medium temperature of hot water meter: 0-90 ℃; Relative temperature
Battery type and voltage
Lithium battery: 3.0V - small caliber meter; 3.6V - Electric water meter; 7.2V-large caliber alkaline battery: 4.5V-3 No. 5batteries
Installation method
Horizontal installation (horizontal meter) or vertical installation (vertical meter)
Display number of digits
6 Digits
PRODUCT CONFIGURATION
All copper based meter
All copper joint
Water-tight watch case
