Quick Details
-
Sail Finishing:
-
PVDF Coated
-
Frame Finishing:
-
Powder Coated
-
Sail Material:
-
PVC
-
wind load:
-
80-100 KM/H
-
Tent characteristic:
-
Anti-fire,waterproof,UV-resistant
-
Color:
-
White
-
Flame retardant:
-
DIN4102 B1, M2 .
Quick Details
-
Brand Name:
-
WT
-
Place of Origin:
-
Jiangsu, China
-
Frame Material:
-
Metal
-
Sail Finishing:
-
PVDF Coated
-
Frame Finishing:
-
Powder Coated
-
Sail Material:
-
PVC
-
wind load:
-
80-100 KM/H
-
Tent characteristic:
-
Anti-fire,waterproof,UV-resistant
-
Color:
-
White
-
Flame retardant:
-
DIN4102 B1, M2 .

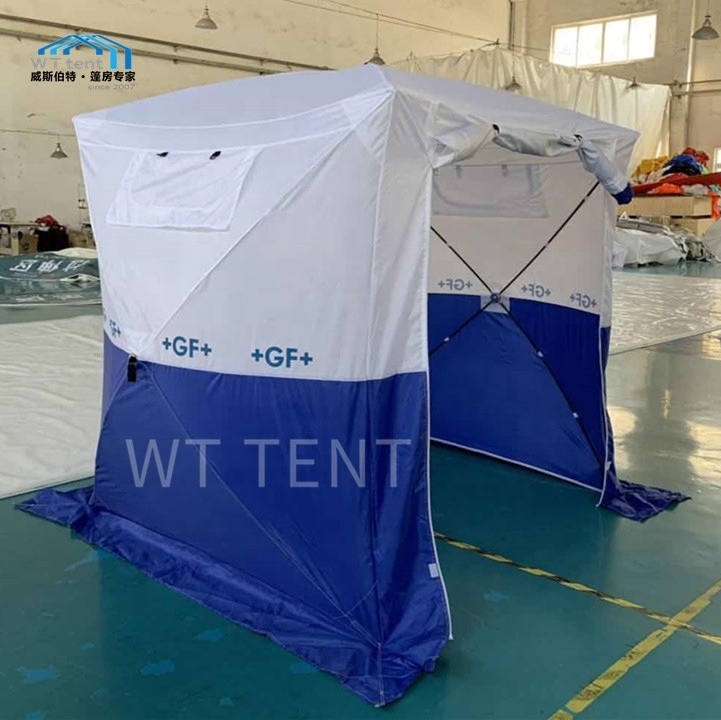

Easy carry up work tent finishing camping tent for travelling
Industry steel warehouse Tent with customized size
The Superiority of the air-filled/Inflatable warehouse tent:
1. When you are in the tent, you will feel cool in summer and warm in winter. So it is not only used for warehouse, but also party, wedding, exhibition and so on.
2. Stable enough, when the wind push the tent, it will not feel noisy. Keep a quiet environment.
3. Small angle of the roof, look like normal building, like living in your home.
Specification:
1, The clear-span of WAREHOUSE TENT is 15m to 60m
2, The length of WAREHOUSE TENT could be 20m, 25m, 30m and +5m more.
3, Frame use hard pressed extruded aluminium 6061 /T6(13HW).
4, The fabric is 850g/sqm double PVC coated polyester textile. It is high quality at waterproof, flame retardant to DIN4102 B1, M2, U V resistant.
5, The maximum allowed wind speed is 100KM/h. The security and variability of our products have reached the standard of similar products abroad.
6, The optional accessories are: wooden floor, galss door, glass wall, PVC hard wall, ground anchors, sidewalls with PVC-clear window, rain gutters, decoration ceilings and inside curtain.
7, Widely used for party, outdoor exhibition, outdoor wedding, trade fair, celebration, sports event, military solution, temporary warehouse and workshop.
8. Sandwich hard wall, automatical rolling door and color steel plate are your best choices for tent permanent use.
|
Big Tent--- Warehouse Tent Series |
|||||||||
|
Model No. |
Width (m) |
Length(m) |
Eave height (m) |
Ridge height (m) |
Bay distance (m) |
Roof pitch |
Longest component (m) |
Wind load |
Aluminum main profile |
|
LH 30m/40 0 |
30 |
20m +5m more |
4 |
8.9 |
5 |
18° |
10.64 |
100km/h 0.5kn/sqm |
350x120x5mm |
|
LH 40m/400 |
40 |
20m +5m more |
4 |
10.5 |
5 |
18° |
10.64 |
||
|
LH 50m/400 |
50 |
20m +5m more |
4 |
12 |
5 |
18° |
10.24 |
||
|
General Package: 1. Aluminum Frame--membrane film 2.Hardware--solid carton box 3. Tent cover--PVC carry bag. |
|||||||||
|
Note: The longest parts determine the kinds of containers you use to transport the cargo. |
|||||||||
|
20 feet container: Inner size: 5.69x2.13x2.18m; Usable Volume: 24-26CBM; Allowed Weight: 17.5 ton |
|||||||||
|
40 feet container: Inner size: 11.8x2.13x2.18m; Usable Volume: 54CBM; Allowed Weight: 22 ton |
|||||||||
|
40 feet high cube container: Inner size: 11.8x2.13x2.72m; Usable Volume: 68CBM; Allowed Weight: 22 ton |
|||||||||
Optional accessories:
wooden floor, glass door, glass wall, PVC hard wall, ground anchors, sidewalls with PVC-clear window, rain gutters, decoration ceilings and inside curtain.
