Features:
12V/24V DC permanent magnet motor (Option)
Load Capacity: 6000N
Speed: 6mm/s(6000N)
42mm/s(No load)
Stroke length: 50mm to 1000mm (Option)
Min. Install dimension: Stroke+175mm(Option)
Duty cycle: 10%
Color: Black or Gray
Certification: CE
Ambient temperature: -26℃ to +65℃
Built-in end stop signal switches (not adjustable)
- Product Details
- {{item.text}}
Quick Details
-
Warranty:
-
2 years
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
RISESAT
-
Model Number:
-
RS-D
-
Torque:
-
Standard
-
Voltage:
-
12v/24v DC
-
Stroke length:
-
50~1000mm
-
Load capacity:
-
6000N
-
Speed:
-
5~30mm/s
-
Installation length:
-
Stroke + 175mm
-
Limited Switch:
-
Inner
-
Noise:
-
<55dB
-
Duty Cycle:
-
10% Max 2 Minutes Continuous
Quick Details
-
Speed(RPM):
-
High Speed
-
Continuous Current(A):
-
<5A
-
Efficiency:
-
m
-
Warranty:
-
2 years
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
RISESAT
-
Model Number:
-
RS-D
-
Torque:
-
Standard
-
Voltage:
-
12v/24v DC
-
Stroke length:
-
50~1000mm
-
Load capacity:
-
6000N
-
Speed:
-
5~30mm/s
-
Installation length:
-
Stroke + 175mm
-
Limited Switch:
-
Inner
-
Noise:
-
<55dB
-
Duty Cycle:
-
10% Max 2 Minutes Continuous
Products Description
We are factory. We can OEM and ODM.
Product Paramenters
|
Model
|
RS-D
|
Power
|
50W
|
|
Brand
|
RISESAT
|
Color
|
Black, Grey
|
|
IP Grade
|
IP54
|
Limit switch
|
Built-In
|
|
Duty cycle
|
10%
|
Stroke
|
Customized Stroke Available
(10~1000mm)
|
|
Noise level
|
<=50dB
|
Minimum installation distance
|
Stroke+175mm
|
|
Feedback signal options
|
Hall sensor
|
Operation temperature
|
-30℃~+65℃
|
|
Type
|
Max. Force(N)
|
|
Max. Speed(mm/s)
|
|
Stroke
(mm) |
Voltage
(V DC) |
Protection
|
Weight
(kg) |
||
|
|
push
|
pull
|
no Load
|
full load
|
|
|
|
|
||
|
RS-D01
|
500
|
400
|
42
|
35
|
10-1000
|
12/24
|
IP54
|
2.5
|
||
|
RS-D02
|
1000
|
600
|
32
|
25
|
10-1000
|
12/24
|
IP54
|
2.5
|
||
|
RS-D03
|
2000
|
1500
|
20
|
13
|
10-1000
|
12/24
|
IP54
|
2.5
|
||
|
RS-D04
|
3000
|
2500
|
10
|
8
|
10-1000
|
12/24
|
IP54
|
2.5
|
||
|
RS-D05
|
4000
|
3000
|
8
|
6
|
10-1000
|
12/24
|
IP54
|
2.5
|
||
|
RS-D06
|
6000
|
4000
|
6
|
4
|
10-1000
|
12/24
|
IP54
|
2.5
|
||
Details Images

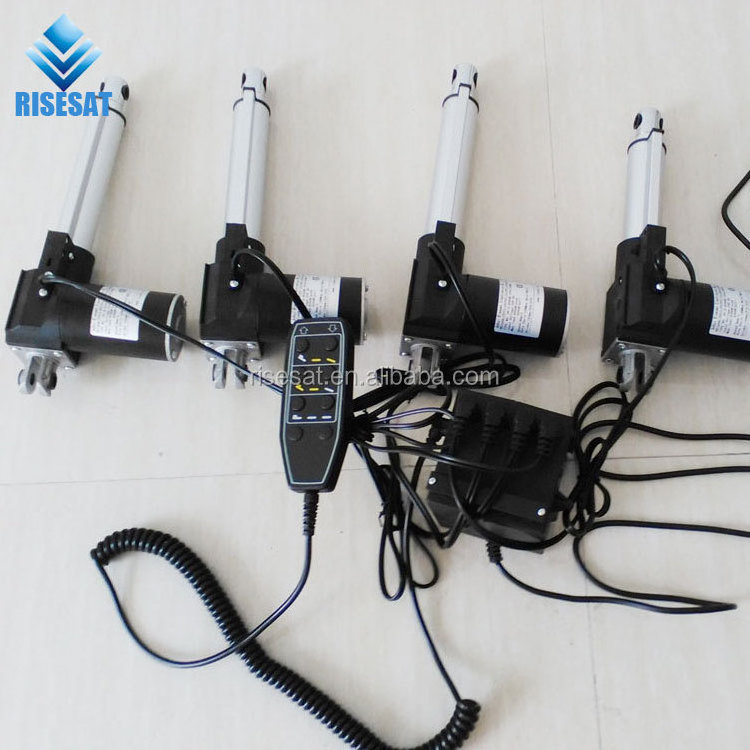

Controller:
There are different controllers for you to choose.
we can supply the brackets if you need.
