Quick Details
-
Brand Name:
-
Lema
-
Model Number:
-
KW7-0L1
-
Max. Current:
-
8A
-
Operating Temperature:
-
-25℃ to +85℃
-
Protection Level:
-
IP40
-
Contact Type:
-
SPDT
-
Application:
-
Home appliance,electronic device,auto electronic,automation equipment
-
Color:
-
Grey
-
mounting size:
-
22.2*10.3mm
-
Size:
-
27.8*10.3*15.9mm
-
Opearting force:
-
50g(0.245N)-400g(3.92N)
-
Material:
-
Plastic
-
Packing:
-
Carton
-
Mechanical Life:
-
1,000,000 operations
-
Electrical life:
-
50,000 operations
-
Certification:
-
CQC,CE
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
125/250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Lema
-
Model Number:
-
KW7-0L1
-
Max. Current:
-
8A
-
Operating Temperature:
-
-25℃ to +85℃
-
Protection Level:
-
IP40
-
Contact Type:
-
SPDT
-
Application:
-
Home appliance,electronic device,auto electronic,automation equipment
-
Color:
-
Grey
-
mounting size:
-
22.2*10.3mm
-
Size:
-
27.8*10.3*15.9mm
-
Opearting force:
-
50g(0.245N)-400g(3.92N)
-
Material:
-
Plastic
-
Packing:
-
Carton
-
Mechanical Life:
-
1,000,000 operations
-
Electrical life:
-
50,000 operations
-
Certification:
-
CQC,CE

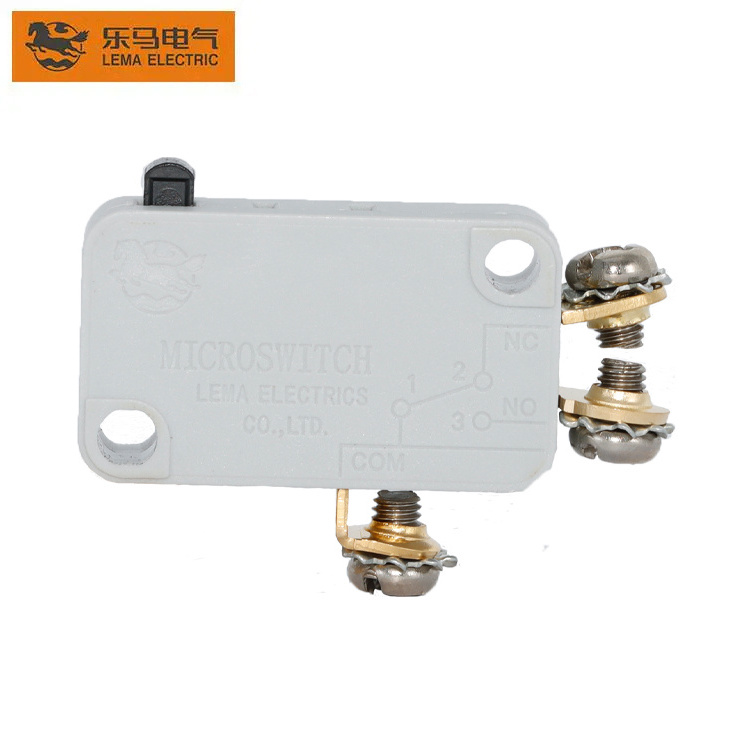

Product Description
|
Brand
|
LEMA
|
|
Model
|
KW7-0L1
|
|
Voltage
|
250V
|
|
Electric Current
|
16A
|
|
Protection level
|
IP40
|
|
Package
|
CARTON
|
|
Size
|
37.2*15.9*10.3mm
|
|
Certification
|
CQC CE
|
|
Operating speed
|
|
0.1mm-1m/s
|
|
|
|||
|
Operating life
|
|
Mechanical: 1,000,000 operations/min
Electrical: 10,000 operations/min
|
|
|
|||
|
Initial insulation resistance
|
|
100MΩmin.(at 500VDC)
|
|
|
|||
|
Initial contact resistance
|
|
25MΩmax.
|
|
|
|||
|
Dielectric strength
|
Between non-consecutive terminals
|
1,000Vrms, 50/60Hz for 1 min
|
|
|
|||
|
|
Between non-current carrying
metal parts and each terminal |
1,500Vrms, 50/60Hz for 1 min
|
|
|
|||
|
|
Between ground and each
terminal |
1,500Vrms, 50/60Hz for 1 min
|
|
|
|||
|
Vibration resistance
|
|
10-55Hz,1.5mm double amplitude
|
|
|
|||
|
Max.shock resistance
|
|
Destruction: O.F.>0.5N: 1000m/s²
Malfunction: O.F.>0.5N: 200m/s² |
|
|
|||
FAQ
|
Q: How do you control the products’ quality?
A: 100% Auto inspection machine and manual testing together before packing. |
|
|
|
|
||||
|
Q: What's your payment term?
A: We usually accept T/T. Samples cost can be paid by PayPal, Western Union. |
|
|
|
|
||||
|
Q: Would you accept to use our logo?
A: If you have good quantity, we can make OEM and ODM, customized specification. |
|
|
|
|
||||
|
Q: Can I get a sample for reference?
A: We are glad to send samples for your testing. Samples are free, but you may need to pay the express cost. |
|
|
|
|
||||
|
Q: What is your delivery time?
A: Usually it takes 15-20 working days for productions. |
|
|
|
|
||||
