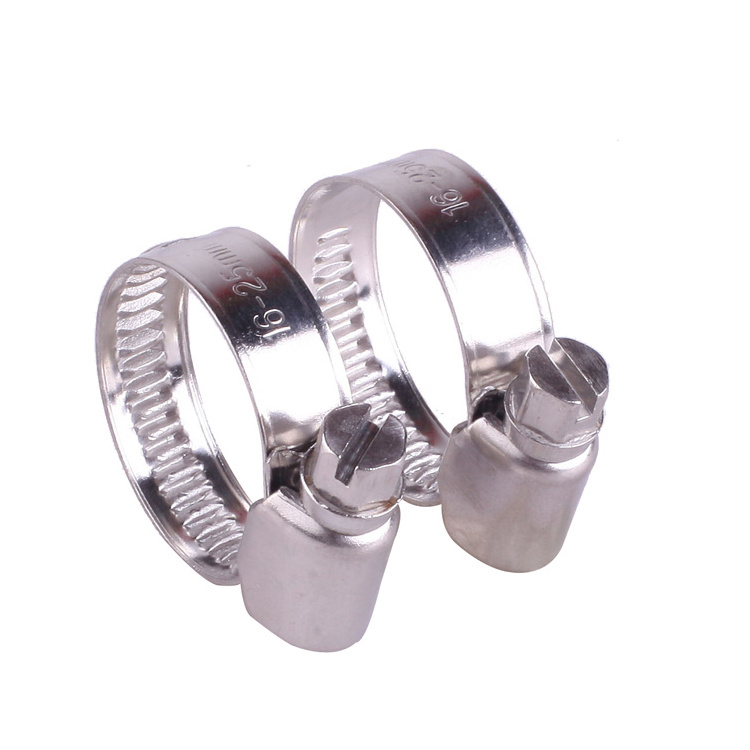

Stainless Steel German type Worm Drive Hose Clamp

Stainless Steel German type Worm Drive Hose Clamp

FOB Reference Price: Get Latest Price

≥500 Pieces

US $0.09

≥3000 Pieces

US $0.08

≥10000 Pieces

US $0.06

≥100000 Pieces

US $0.04

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Band Thickness:: 0.6mm/0.7mm

Standard:: DIN3017

Material:: stainless steel / carbon steel

Parts:: band, housing and screw

Structure:: Swivel Clamp

Free Torque:: ≤ 1N.m

Loading Torque:: ≥ 6N.m

Moq:: 500pcs

Delivery Time:: 5days

Quick Details

Warranty:: 3 years

Application:: Heavy Industry, General Industry

Band Width:: 9mm/12mm

Band Thickness:: 0.6mm/0.7mm

Standard:: DIN3017

Material:: stainless steel / carbon steel

Parts:: band, housing and screw

Structure:: Swivel Clamp

Free Torque:: ≤ 1N.m

Loading Torque:: ≥ 6N.m

Moq:: 500pcs

Delivery Time:: 5days

Product Description

Product Name	Germany Type Worm Gear Hose Clamp
Band Specification	912mm0.6/0.7mm
Parts	band,housing and screw
Material	w1: all parts are galvanized steel
		w2: band and housing are stainless streel , screw is galvanized steel
		w4: all parts are stainless steel 200 or 300
		w5: all parts are stainless steel 316
Screw	w1: "+"
		w2:"+"
		w4& w5: ''-"
Connection	welding

Product performance description

DIN 3017 German Type Worm Drive Hose Clamp consist of a band, often galvanized or stainless steel, into which a screw thread
pattern has been cut or pressed.One end of the band contains a captive screw. The clamp is put around the hose or tube to be
connected, with the loose end being fed into a narrow space between the band and the captive screw. When the screw is turned, it
acts as a worm drive pulling the threads of the band, causing the band to tighten around the hose (or when screwed the opposite
direction, to loosen). Screw clamps are normally used for hoses 1/2 inch diameter and up, with other clamps used for smaller
hoses.

Drawing

Product Usage

- Product usage introduction

German Type Hose Clamps is widelyusedin automobiles, tractors, forklifts, locomotives, ships,mines, petroleum, chemicals, pharmaceuticals,agriculture,and other water,oil,steam, dust,etc.The hose clamp is tightly locked,tight and has a wide adjustment range.It is suitable for fasteners with soft and hard pipe connections.

◆ easy to operate ◆ sturdy lock ◆ pressure resistance ◆ torque balanced ◆ big adjustable range
