Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
minglight
-
Model Number:
-
ML-WPD-80W
-
Input Voltage(V):
-
AC100-277V
-
Product Weight（kg）:
-
5
-
IP Rating:
-
IP65
-
Color Temperature:
-
3000K-6000K
-
Certification:
-
ETL DLC
-
Angle:
-
90
-
Product name:
-

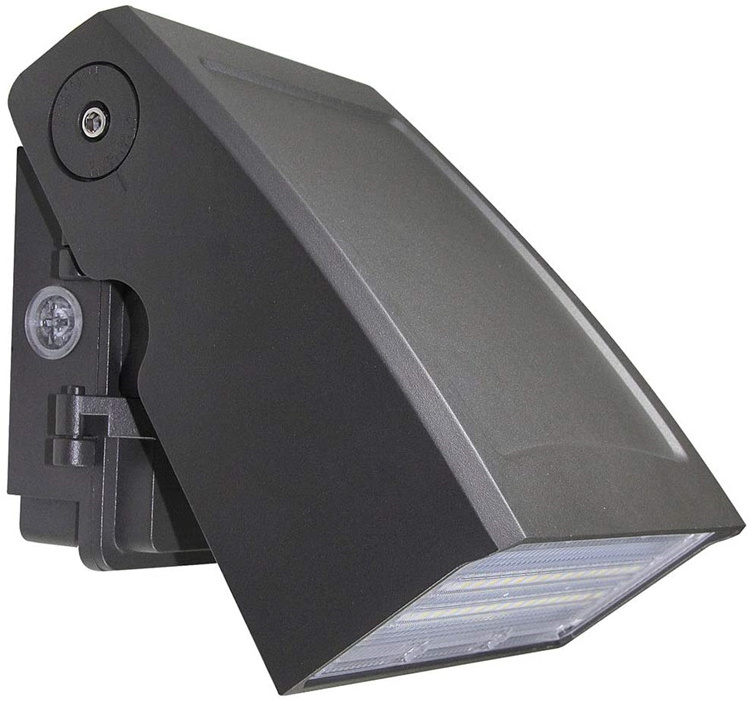

LED Wall Pack
-
Material:
-
Aluminum+Tempered Glass
-
Sensor:
-
Photocell Sensor
-
Avaliable Watt:
-
30/60/80w/100W/120W
-
Beam Angle(°):
-
120
-
Working Temperature(℃):
-
-25 - 55
Quick Details
-
Color Temperature(CCT):
-
5000k
-
Warranty(Year):
-
5-Year
-
Power Supply:
-
general driver
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
minglight
-
Model Number:
-
ML-WPD-80W
-
Input Voltage(V):
-
AC100-277V
-
Product Weight（kg）:
-
5
-
IP Rating:
-
IP65
-
Color Temperature:
-
3000K-6000K
-
Certification:
-
ETL DLC
-
Angle:
-
90
-
Product name:
-
LED Wall Pack
-
Material:
-
Aluminum+Tempered Glass
-
Sensor:
-
Photocell Sensor
-
Avaliable Watt:
-
30/60/80w/100W/120W
-
Beam Angle(°):
-
120
-
Working Temperature(℃):
-
-25 - 55
wholesale DLC ETL full cut-off wall packs adjustable angle 80w wallpack light led
| Model Num. | ML-WPD-20W | ML-WPD-30W | ML-WPD-60W | ML-WPD-80W |
| Wattage | 20W | 30W | 60W | 80W |
| Input Voltage |
100-277V AC
50/60Hz |
100-277V AC
50/60Hz |
100-277V AC c
50/60Hz |
100-277V AC
50/60Hz |
| Power Factor (PF) | > 0.95 | > 0.95 | > 0.95 | > 0.95 |
| Power Efficiency | >85% | >85% | >85% | >85% |
| Lumen Output(+/-5%) | 2400LM | 3600LM | 7200LM | 9600LM |
| CRI | >80 | >80 | >80 | >80 |
| CCT |
3000K 4000K
5000K 5700K |
3000K 4000K
5000K 5700K |
3000K 4000K
5000K 5700K |
3000K 4000K
5000K 5700K |
| Rating | IP65 IK07 | IP65 IK07 | IP65 IK07 | IP65 IK07 |
| Driver | Driver | Driver | Driver | Driver |
| Lamp Shell Color | Brown | Brown | Brown | Brown |
| Beam Angel | 100° | 100° | 100° | 100° |
| Working Lifetime | 50000hrs | 50000hrs | 50000hrs | 50000hrs |
| Certification | ETL | DLC ETL | DLC ETL | DLC ETL |
| Warranty | 5 Years | 5 Years | 5 Years | 5 Years |
♦
Factories Lights
♦
Walkway Lights
♦
Parking Structures Lights
♦
Building Perimeters Lights
♦
Security Lights
