Quick Details
-
Model Number:
-
GW1100
-
Product name:
-
Portable WiFi Weather Station Sensor Gateway
-
Application:
-
For Weather Station
-
Type:
-
Wireless
-
Material:
-
ABS
-
Weight:
-
0.15kg
-
Certificate:
-
CE FCC ROHS
-
Power supply:
-
DC 5V 1A
-
Feature:
-
High Precision
-
MOQ:
-
500 PCs
-
Color:
-
Blue
Quick Details
-
Warranty:
-
1 Year, 1 Year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Ecowitt
-
Model Number:
-
GW1100
-
Product name:
-
Portable WiFi Weather Station Sensor Gateway
-
Application:
-
For Weather Station
-
Type:
-
Wireless
-
Material:
-
ABS
-
Weight:
-
0.15kg
-
Certificate:
-
CE FCC ROHS
-
Power supply:
-
DC 5V 1A
-
Feature:
-
High Precision
-
MOQ:
-
500 PCs
-
Color:
-
Blue

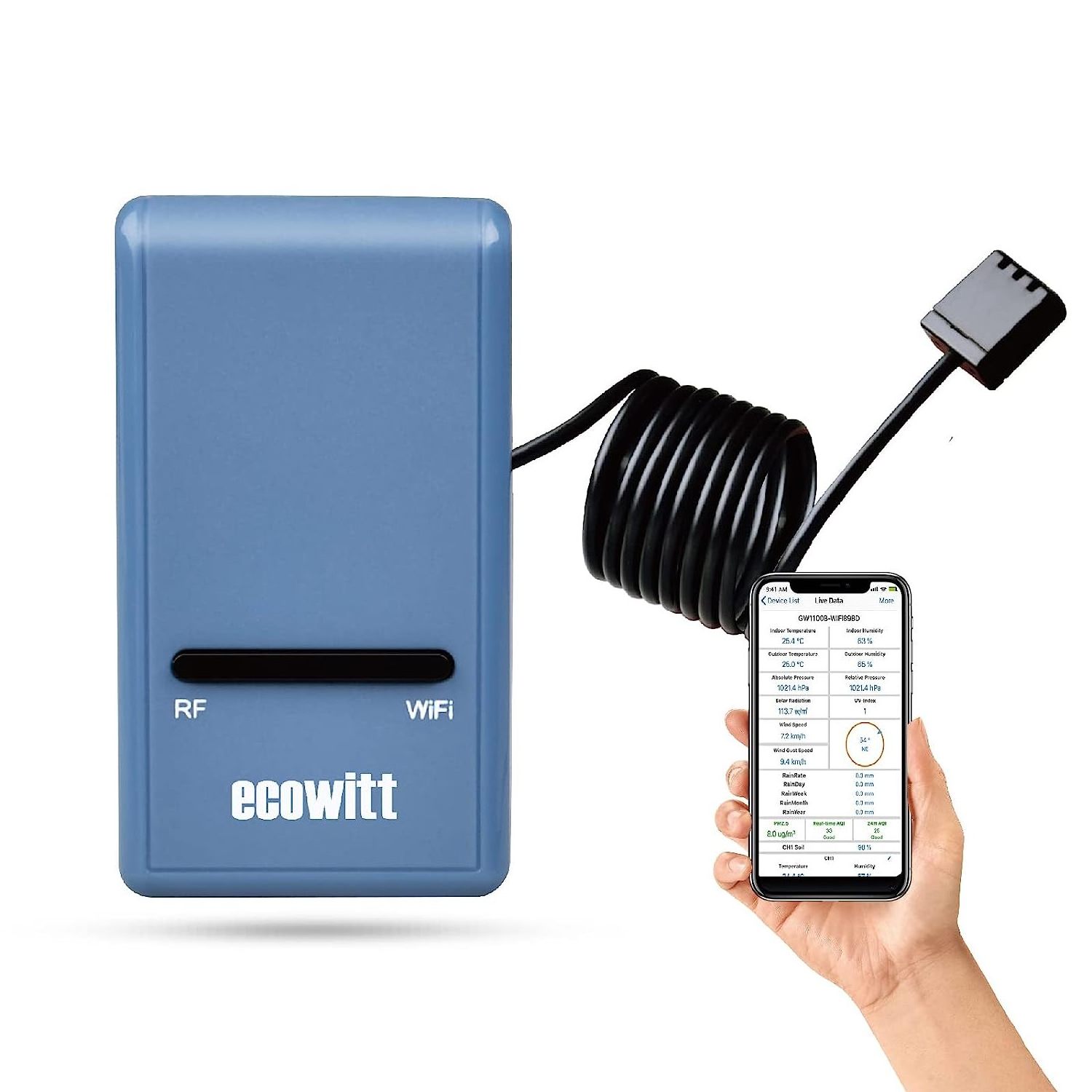

Portable WiFi Weather Station Sensor Gateway with Temperature Humidity and Atmospheric Pressure 3-in-1 Probe Sensor
[Wi-Fi Weather Station Gateway]: GW1100 WiFi Weather Station Gateway comes with advanced temperature & humidity & atmospheric pressure 3-in-1 probe sensor and with additional 1.5m/3ft USB extension cable for powering the gateway, allowing you to measure more accurate values at any location.
[Upgraded Gateway & Easy Wi-Fi Configuration] :
Comparing with the old version gateway GW1000, simplifies the GW1100 Wi-Fi configuration procedure, allowing you easily to finish Wi-Fi configuration and get more accurate data. The GW1100 quick start manual will guide you to complete the Wi-Fi configuration in detail. Say goodbye to the complicated wifi configuration procedure.
[Various Sensors Supported]:
GW1100 WiFi weather station gateway can collect sensor data from various Ecowitt wireless sensors(sold separately), such as WN32(WH32) outdoor temperature and humidity sensor, WH40 rain gauge sensor, WS68 wireless anemometer, up to 8 WN31(WH31) multi-channel temperature and humidity sensors, up to 8 WH51 soil moisture sensors, up to 4 WH41/WH43 PM2.5 air quality sensors, WH45 air quality sensor, WH55 Water leak sensors and WH57 Lightning sensor.
[Upgrade Firmware]:
According to your needs to decide whether to set automatically update the firmware. With the firmware update, so that you can use the latest function of GW1100. Besides, the original data can be retained. This option is unchecked as a default setting, which means the device will not upgrade firmware by itself. If this option is enabled, it will upgrade firmware automatically (precondition: gateway GW1100 connected to your router with internet access from the network).
[View Live Data & Publish to Internet Weather Services]:
You can use mobile application (WS View Plus/Ecowitt APP) view collected live data, manage sensor calibration setup, manage sensor selection. Besides, the GW1100 Wi-Fi gateway support uploading all the sensors data to Weather Underground, WOW, Weather Cloud, Ecowitt Weather and other custom sites(using either Wunderground or Ecowitt protocol)
Specifications
| Power Supply | DC 5V 1A |
| Size | 62 x 35 x 12 mm / 2.44 x 1.38 x 0.47 inch |
| Cable Length | 1m / 3ft |
| Frequency | 915 / 868 / 433 MHz depending on location |
| Wireless Range | 300FT/100M in open areas when linked to external sensors |
| Temperature Range | -10°C to 60°C (14°F to 140°F) |
| Temperature Resolution | 0.1°C or 0.1°F |
| Temperature Accuracy | ± 1°C |
| Humidity Range | 1% ~ 99% |
| Humidity Resolution | 1% |
| Humidity Accuracy | ± 5% |
| Barometric Pressure Range | 300 – 1100 hPa (8.85 – 32.5 inHg) |
| Barometric Pressure Accuracy | ±3 hPa in 700 – 1100 hPa range |
| Barometric Pressure Resolution | 0.1 hPa (0.01 inHg) |
Package Content
1 * GW1100 Wi-Fi Gateway
1 * USB extension cable for powering the gateway
1 * Cable clip
1 * GW1100 Quick Start
1 * Manual
Publish to Internet Weather Services
Weather Underground
WOW
Weather Cloud
Ecowitt Weather
Custom sites (using either Wunderground or Ecowitt protocol.)
