Quick Details
-
Brand Name:
-
ACNTRUCK
-
Engine Capacity:
-
6 - 8L
-
Drive Wheel:
-
6x4
-
After-sales Service Provided:
-
Video technical support, Field installation, commissioning and training, Field maintenance and repair service
-
Size:
-
8500*2550*3860mm
-
Cabin:
-
Flat-roof Cab, with AC
-
Rated Payload:
-
12,780kg
-
Dump Box Volume:
-
16cbm
-
Engine Output:
-
380/340hp
-
Max Speed:
-
85km/h
-
Tire size:
-
12.00R20
-
Oil tank capacity:
-
350L
-
Wheel base:
-
3,800+1,400mm
-
Color:
-
Purple, red, green, etc
Quick Details
-
Condition:
-
New
-
Horsepower:
-
351 - 450hp
-
Emission Standard:
-
Euro 3
-
Brand Name:
-
ACNTRUCK
-
Engine Capacity:
-
6 - 8L
-
Drive Wheel:
-
6x4
-
After-sales Service Provided:
-
Video technical support, Field installation, commissioning and training, Field maintenance and repair service
-
Size:
-
8500*2550*3860mm
-
Cabin:
-
Flat-roof Cab, with AC
-
Rated Payload:
-
12,780kg
-
Dump Box Volume:
-
16cbm
-
Engine Output:
-
380/340hp
-
Max Speed:
-
85km/h
-
Tire size:
-
12.00R20
-
Oil tank capacity:
-
350L
-
Wheel base:
-
3,800+1,400mm
-
Color:
-
Purple, red, green, etc

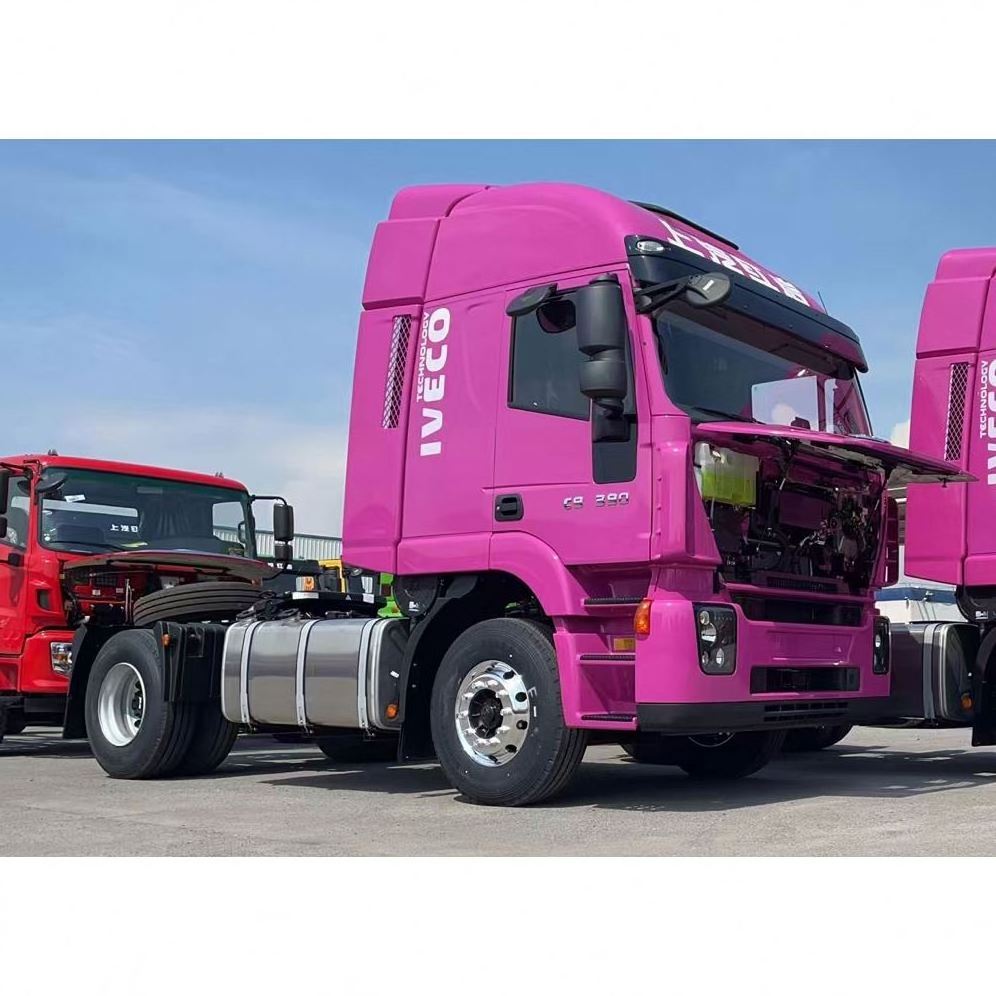

Tractor Trailer Truck Head 380hp Dump Tipper Truck
Acntruck International is a leading Chinese construction machinery exporter, located in the downtown of Shanghai City.
Since our company was founded, we continually introduce top Chinese construction machinery enterprises and their products to international markets. We not only make more international customers know and approbate our products, but also gradually build up friendship with construction machinery customers all over the world.
With a balanced and diversified approach towards the ever changing market scenario in perfect combination with strategic management and organic growth, Acntruck International has emerged as a renowned exporter of a wide range of top Chinese Construction Machinery.
↓↓↓ Details Parameter ↓↓↓
| TECHNICAL SPECIFICATION | ||||
| Model | CQ3254HTG384 | |||
| Cab | Flat-roof Cab, Left Hand Drive, with AC | Yellow/red/white | ||
| Drive | 6×4 | |||
| Rated Payload(kg) | 12,780 | |||
| Kerb Weight(kg) | 12,090 | |||
| Gross Vehicle Weight(kg) | 25,000 | |||
| Overall Dimension(mm) | 8,475×2,500×3,510(L*W*H) | |||
| Dump Box Dimension(mm) | 5,600×2,300×1,250(L*W*H) | |||
| Dump Box Volume (m 3 ) | 16 | |||
| Thickness of Track Bed | Bottom 8mm,side 6mm | |||
| Lifting Cylinder | Middle lift Φ220/HYVA 150 | T-lift/Front lift | ||
| Max Speed(km/h) | 85 | |||
| Wheelbase(mm) | 3,800+1,400 | |||
| Engine | Cursor9 380/Cursor9 340 FIAT TECH | Euro III | ||
| Engine Output(HP) | 380/340 | |||
| Gearbox | 12JSD160T/RT-11509C | technology | ||
| Steering gear | Germany Technology steering gear | |||
| Frame | outside width 865mm, longeron cross section 317x(8+8)mm | |||
| Front Axle | Iron Cast I-Shaped Axle, Capacity: 7,000 kg | |||
| Driving axle | Full floating, double reduction with differential Steyr cast steel driving axle, Capacity:18,000 kg | |||
| Tyre | 12.00R20 | |||
| Oil Tank | 350L | Aluminum | ||
