Quick Details
-
Model Number:
-
HLT15-11
-
Specification:
-
Customized
-
Length:
-
Customized
-
Thickness:
-
0.6-1.5mm
-
Standard:
-
2mm 4mm 6mm 8mm
-
Product name:
-
High Quality Flexible SS Braided Corrugated PTFE Hose with Flange
-
Braid Material:
-
ss304
-
Working Temperature:
-
-65℃ ~+260℃
-
Usage:
-
Delivery Water
-
Feature:
-
High Temperature Resistance
-
Application:
-
Industry
-
Package:
-
Carton Wooden Box
-
Certification:
-
CE,ISO
-
Connection:
-
Flange Joint
-
OEM:
-
Accept Requirment
Quick Details
-
Processing Service:
-
Moulding, Cutting
-
Place of Origin:
-
China,Jiangsu
-
Brand Name:
-
HLT
-
Model Number:
-
HLT15-11
-
Specification:
-
Customized
-
Length:
-
Customized
-
Thickness:
-
0.6-1.5mm
-
Standard:
-
2mm 4mm 6mm 8mm
-
Product name:
-
High Quality Flexible SS Braided Corrugated PTFE Hose with Flange
-
Braid Material:
-
ss304
-
Working Temperature:
-
-65℃ ~+260℃
-
Usage:
-
Delivery Water
-
Feature:
-
High Temperature Resistance
-
Application:
-
Industry
-
Package:
-
Carton Wooden Box
-
Certification:
-
CE,ISO
-
Connection:
-
Flange Joint
-
OEM:
-
Accept Requirment
Ptfe Braided Flexible Corrugated Hose/Tube/Pipe, PTFE Braided Fuel Line Hose For Automobile~
Product Description
The pipe has changed the characteristics that the pipe can not be bent by special processing methods. It can be used to connect the lower graphite and ceramic glass pipes, and can be used as the feeding and discharging pipe for tank trucks, tanks, containers or reaction still. It can be used for pipe misalignment or to balance pipe displacements, dimensional changes caused by climate or other reasons, or to eliminate high-frequency mechanical vibrations. Can also be used in special occasions such as tubular reactor or heat exchanger.
PTFE braided hose performance: PTFE stainless steel wire braided hose is a new product developed by our factory according to market demand, which is mainly used in various automobiles, machine tools, vulcanizing machines, foaming machines, machinery, diesel engines, shipbuilding In other industries, we can make soft connections for hydraulic pressure, steam pressure, steam transportation, etc.
PTFE Hose
Smooth Bore PTFE Hose With Braids
The Model type PTFE Hose is a smooth bore PTFE hose with a stainless steel braiding, available up to 1-1/4" diameters. The diameters listed reflect nominal sizing.
It is lightweight, and handles a very broad range of chemicals at relatively high temperatures and pressures, and will not deteriorate in service. It is used in countless tough industrial applications where continual large bending is not required. Commonly provided with JIC, NPT or many other fittings.
Also available with a convoluted PTFE core for tighter bends
Corrugated PTFE Hose With Braids
The Model type PTFE Hose is a convoluted PTFE hose with a stainless steel braiding, available up to 4" diameters.The convolutions provide a far tighter bend radius than most smooth bore alternatives.It is lightweight, and handles a very broad range of chemicals at relatively high temperatures and pressures, including full vacuum.
It is used in countless tough industrial applications where a smooth bore is not required. Also available in conductive PTFE.
Commonly provided with JIC, NPT or many other fittings.
Technical Parameter
Braided PTFE Hose
Construction:
Tube: smooth bore PTFE
Cover: SS304 / SS316 Braided
Shape of hose:
Smooth bore or corrugated
Temperature:
-65ºC to +260ºC
Application:
Mainly used for conveying various chemicals, ships, automobiles, Marine industry machinery hydraulic system etc
Coil length:
20m-100m (Random Length).
Standard:
SAE100 R14
Connector: JIC,NPT,BSPFitting, flange etc.
The Advantages of PTFE hose:
In addition to having the same characteristics as the metal software, it has the advantages of light weight, good flexibility, high temperature resistance, corrosion resistance, aging resistance, high pressure resistance, long service life, no time limit, and good shock resistance.
※ High temperature resistance-the highest temperature up to 250 degrees
※ Low temperature resistance-has good mechanical toughness, -54 degrees can also maintain 5% elongation.
※ Excellent anti-sticking--it is not easy to adhere any substance on the inner wall of the tube
※ Resistance to strong alkalis--Almost good inertness to almost all chemicals and solvents.
※ Climate resistance-excellent aging resistance, can be used outdoors for a long time.
※
Excellent electrical insulation performance: the dielectric constant is about 2.0, Class C electrical insulation material.
|
NO.
|
Specification
|
ID
(mm)
|
OD
(mm)
|
Thickness
(mm)
|
Working Pressure
(bar)
|
Burst Pressure
(bar)
|
|
1
|
1/8
|
3.5
|
6.6
|
1
|
326
|
1007.76
|
|
2
|
3/16
|
4.8
|
8
|
0.85
|
247
|
740.52
|
|
3
|
1/4
|
6.4
|
9.2
|
0.85
|
214.2
|
666.06
|
|
4
|
5/16
|
8
|
11
|
0.85
|
191.76
|
598.74
|
|
5
|
3/8
|
9.7
|
12.8
|
0.85
|
188.7
|
567.12
|
|
6
|
1/2
|
12.7
|
15.9
|
1
|
156
|
470.22
|
|
7
|
5/8
|
16
|
19.2
|
1
|
129.54
|
389.64
|
|
8
|
3/4
|
19
|
22.7
|
1.2
|
79.56
|
274.38
|
|
9
|
7/8
|
22.2
|
26
|
1.2
|
61.2
|
198.9
|
|
10
|
1
|
25
|
29.3
|
1.5
|
40.8
|
156.06
|
|
11
|
2
|
50
|
55.6
|
2
|
30.6
|
122.4
|
Detailed Images

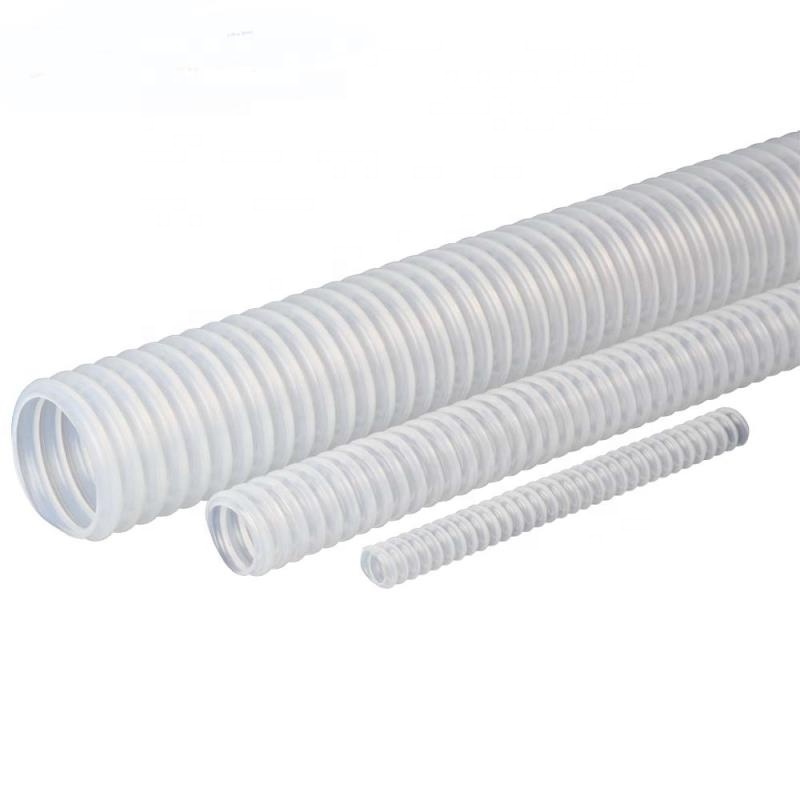

Corrugated PTFE Hose
Smooth Bore PTFE Hose
Testing of PTFE hose
Most PTFE hose manufacturers only use the naked eye for appearance control and simple measurement tools to control the size, the purpose of which is to save costs. However, it is impossible to rule out the trachoma and broken points in the PTFE hose, nor can it detect the technical problems that the F4 hose is not cooked or burnt in production. This quality product is very dangerous for conveying strong acids and bases. Our company uses professional testing equipment to control the quality of F4 hoses. Test the crystallinity of the F4 hose to confirm the softness of the product, the pressure burst tester tests the internal pressure resistance of the PTFE hose, and the air tightness tester detects the sand holes and break points in the hose.
Packing & Delivery
Our Company & Factory
Our factory
We make all kinds of flex-related products, such as flexible metal hoses, PTFE hoses,expansion joints, braidings, hose fittings, and related machines,such as elastomer hose forming machine,hydraulic forming machine,wire braiding machine,rewinding machine,bellow forming machine, etc..We are lead manufacturer of flex-related products in China.
We supply metal hose and braid with the widest selection of products ranging from braided hose for value oriented customers to super flexible hoses to ultra-high pressure and high temperature hoses that satisfy industry's most demanding applications. Working closely with customers and suppliers helps us build quality products that meet or exceed compatibility and functional requirements, safety and environmental standards and deliver dependable, repeatable performance and value.
FAQ
Q1.
Who is COMFLEX?
COMFLEX is a reliable manufacturer and exporter of flexible metal hose,PTFE hose etc. in China for more than 30 years in the market.
Q2.
What are you offering?
All kinds of metal hoses and PTFE hoses
Q3.
How Can I get to COMFLEX?
COMFLEX is close to Shanghai, you can fly to Shanghai Pudong Airport, then we will pick you up.
Q4.
What is the delivery time for one 20ft container?
Usually, it is 20 days after receipt of the deposit.
Q5.
What is your payment term?
L/C, T/T, Western Union.
Q6.
What is your price term?
The price is base on FOB, CFR or CIF.
Q7.
What is your port?
Shanghai
Q8.
Quality control, warranty and guarantee
We control the quality of raw material. We only work with stated enterprise and their quality is stable; Our workers have rich experience, our production machinery is advanced; Before packaging, we make very strictly test and inspection by QC.
We need to know following information to give you our best quotation for the PTFE hoses:
A:Size range
B:Shape of the PTFE hose,corrugated or flat
C:Working pressure
D:Connection type, please send us technical drawing or picture
E:Length
F:Quantity
