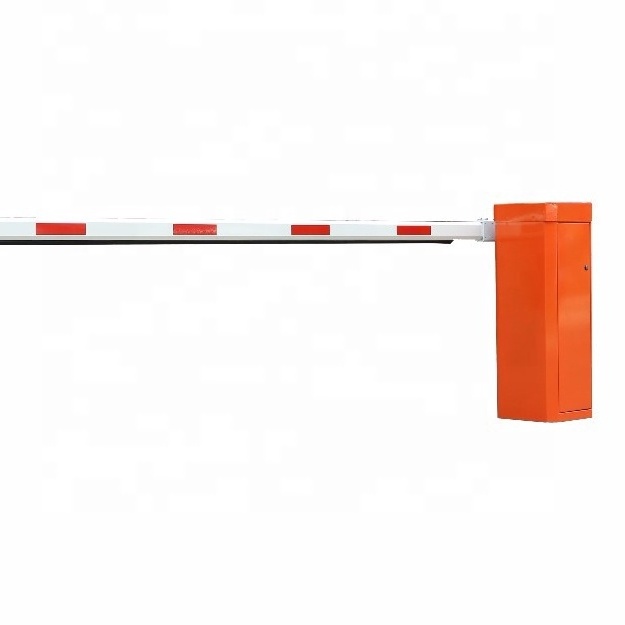

JOYTECH Servo Motor Automatic Barrier Gate for Freeway and Parking Lot
JOYTECH Servo Motor Automatic Barrier Gate for Freeway and Parking Lot
JOYTECH Servo Motor Automatic Barrier Gate for Freeway and Parking Lot
JOYTECH Servo Motor Automatic Barrier Gate for Freeway and Parking Lot
JOYTECH Servo Motor Automatic Barrier Gate for Freeway and Parking Lot
JOYTECH Servo Motor Automatic Barrier Gate for Freeway and Parking Lot
JOYTECH Servo Motor Automatic Barrier Gate for Freeway and Parking Lot
JOYTECH Servo Motor Automatic Barrier Gate for Freeway and Parking Lot

JOYTECH Servo Motor Automatic Barrier Gate for Freeway and Parking Lot

FOB Reference Price: Get Latest Price
≥1 Pieces
US $390
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Motor:
Servo Motor
Drive method:
Planetary gear
Feature:
High Durable
Function:
high speed
Certificate:
CE Approved
Length:
4m
Housing color:
Orange
Power supply:
AC100-240V

Quick Details

Place of Origin:
Zhejiang, China
Product name:
Barrier Gate
Usage:
Road Traffic Safety
Motor:
Servo Motor
Drive method:
Planetary gear
Feature:
High Durable
Function:
high speed
Certificate:
CE Approved
Length:
4m
Housing color:
Orange
Power supply:
AC100-240V
Product Description
Barrier Gate
BG2506
BG3009
BG4014
BG5025
BG6035
Boom Length

≤ 2.5m
φ75mm Round Bar boom length
≤ 3m

φ75mm Round Bar/Octagonal Bar 80×46mm
≤ 4m

φ75mm Round Bar /Octagonal Bar 80×46mm
≤ 5m

Octagonal Bar 80×46mm
≤ 6m Octagonal Bar

80×46mm
Open/Close Time
0.6 sec
0.9 sec
1.4 sec
2.5 sec
3.5 sec
Power Consumption
150w
100w
Max. Power Consumption
150w
100w
Power Supply
AC110-264V/47-63Hz
Operating Temperature Range
-40~+80 ℃
Driving Method
Servo Motor + Planetary Reducer
Protection Class IP
54
Insulation Class
F
Relative Humidity
≤ 90%
Motor No-load Speed
3000r/min
Service Life
5-10 million times
Remote Control Distance
≤100m (wide open area, sunny weather)
Running Noise
<50dB
Surface Treatment
Outdoor metal powder electrostatic spraying
1. Efficient and precise planetary reducer drive with mechanical and electrical integrated. More convenient operation, safe and reliable, completely maintenance free during its service.

2. The moving parts and balance spring devices which are in their optimal function enable the boom work with soft start slow stop in fast and stable, without impact, which reduces the driving power in maximum, extends its service lift.

3. No clutch devices, no position sensor, the gate automatically open when the power is off. When the power is on, the gate automatically reset, and the gate returns to being closed, which realizes the truly unattended parking system; Special requirements can be met through setting up the DIP switch on the control board to manually operate the boom.

4. Humanized anti-collision boom protection, when the vehicle accidently hits the gate boom, boom can be swung out to avoid damage to the vehicle and the barrier gate.

5. Advanced servo control system, with fast speed and high accuracy, it genuinely realized the PID closed loop control between running speed and acceleration. It'll automatically adapt to the load changes.

6. The dedicated controller system has high integration and strong logic performance. It can be connected to any highway and bridge, intelligent parking systems.

7. 485 communication interface makes it easy to remote control the barrier gate and feedback its state.

8. Through setting up the DIP switch, users can choose operation mode and operation parameters, which will meet different customer's requirements in maximum for different functions.

9. High-sensitivity arm auto reverse function. To prevent incorrect operation and other accidents like crash or hitting.

10. High-strength precision cast steel, with outdoor metal powder electrostatic spraying surface treatment, IP class up to 54

11. This product uses the DC 24V low voltage servo motor, adjusts to the global voltage, compatibles with solar system, wind power generation, moveable work anywhere anytime.
Detailed Images
