Quick Details
-
Place of Origin:
-
Guangdong, China
-
Panel Dimensions:
-
1068x696x2.5mm
-
Panel Efficiency:
-
22%
-
Wafer type:
-
Single crystal, polycrystalline
-
Encapsulation Material:
-
PET(matte/smooth) or ETFE
-
Panel size:
-
1068x696x2.5 Or customized
-
conversion efficiency:
-
22%
-
Number of batteries:
-
72
-
maximum power:
-
120W
-
Maximum operating voltage:
-
12v 18v 24v 36v
-
Maximum operating current:
-
6.67A
-
Open circuit voltage:
-
22.8V
-
short-circuit current:
-
7.2V
Quick Details
-
Cell size:
-
156.75mmx52.25mm
-
Brand Name:
-
see light
-
Model Number:
-
xryg0301
-
Place of Origin:
-
Guangdong, China
-
Panel Dimensions:
-
1068x696x2.5mm
-
Panel Efficiency:
-
22%
-
Wafer type:
-
Single crystal, polycrystalline
-
Encapsulation Material:
-
PET(matte/smooth) or ETFE
-
Panel size:
-
1068x696x2.5 Or customized
-
conversion efficiency:
-
22%
-
Number of batteries:
-
72
-
maximum power:
-
120W
-
Maximum operating voltage:
-
12v 18v 24v 36v
-
Maximum operating current:
-
6.67A
-
Open circuit voltage:
-
22.8V
-
short-circuit current:
-
7.2V
|
Model
|
Power
|
Vmp/V
|
Imp/A
|
Voc/V
|
Isc/A
|
Size
|
|
XRYG-FL-7
|
7W
|
6V
|
1.17A
|
7.4V
|
1.26A
|
275*170mm
|
|
XRYG-FL-10
|
10W
|
18V
|
0.56A
|
22V
|
0.6A
|
360*190mm
|
|
XRYG-FL-20
|
20W
|
18V
|
1.12A
|
22V
|
1.2A
|
530*240mm
|
|
XRYG-FL-30
|
30W
|
18V
|
1.67A
|
22.4V
|
1.8A
|
500*390mm
|
|
XRYG-FL-40
|
40W
|
18V
|
2.22A
|
22.4V
|
2.4A
|
640*398mm
|
|
XRYG-FL-50
|
50W
|
18V
|
2.78A
|
22.4V
|
3A
|
580*530mm 840*375mm
|
|
XRYG-FL-60
|
60W
|
18V
|
3.34A
|
22.4V
|
3.6A
|
910*400mm 630*408mm
|
|
XRYG-FL-80
|
80W
|
18V
|
4.45A
|
22.4V
|
4.8A
|
1020*450mm
|
|
XRYG-FL-100
|
100W
|
18V
|
5.56A
|
22.4V
|
6A
|
1200*540mm
830*710mm 1080*540mm
|
|
XRYG-FL-125
|
125W
|
18V
|
6.95A
|
22.4V
|
7.5A
|
900*775mm 1180*580mm
|
|
XRYG-FL-170
|
170W
|
18V
|
9.45A
|
22.4V
|
10.2A
|
1020*890mm 1345*670mm
|
|
XRYG-FL-200
|
200W
|
18V/30V
|
11.12A/6.67A
|
22.4V/37.4V
|
12A/7.2A
|
1580*710mm 1065*1045mm
1460*775mm 1140*990mm |
|
XRYG-FL-250
|
250W
|
36V
|
6.95A
|
44.9V
|
7.5A
|
1730*775mm 1080*1145mm
|
|
XRYG-FL-285
|
285W
|
30V
|
9.5A
|
37.4V
|
10.2A
|
1665*890mm
|
|
XRYG-FL-330
|
330W
|
36V
|
9.17A
|
44.9V
|
9.9A
|
1990*890mm 1345*1310mm
|

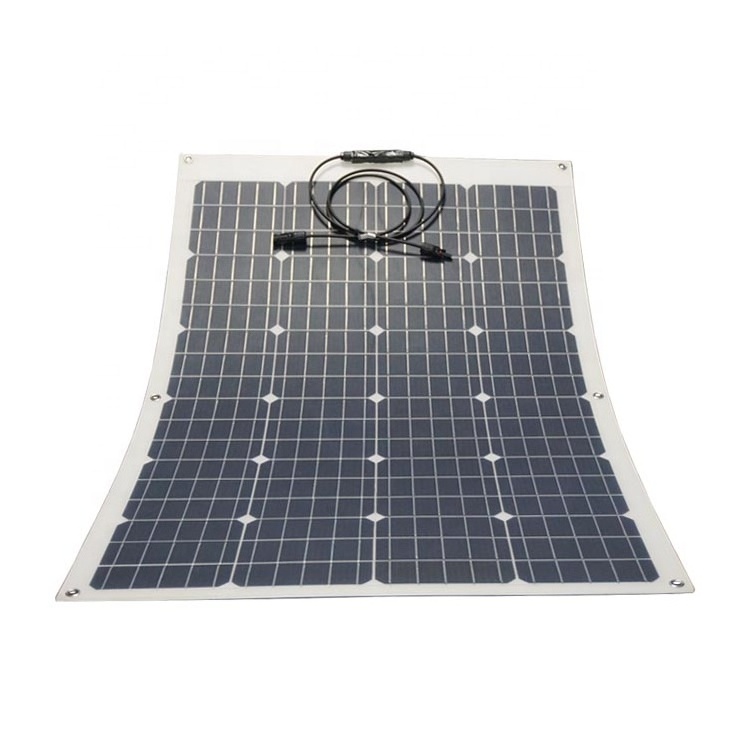

Monocrystalline Flexible Solar Panel
Features
1. Green energy
2. Energy saving and environmental protection
3. Easy to install
4. Easy battery life
±2.7 MM Thickness. Weight is 1/3 of the glass component
A variety of material for lamination. Allowing components to last up to 20 years.
