Quick Details
-
Screw Speed (rpm):
-
60 rpm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
ACC
-
Voltage:
-
220/380 V
-
Dimension(L*W*H):
-
3.6*1.5*1.8 meters
-
Power (kW):
-
30
-
Weight:
-
1500 KG
-
Name:
-
mini extruder
-
Keywords:
-
extruder machine price
-
Application Field:
-
small plastic extruder
-
Usage:
-
Hot melt
-
Raw material:
-
plastic Granules
-
Inverter:
-
ABB
-
Motor:
-
SIEMENS Brand
-
Contactor:
-
SIEMENTS
-
Temperature control:
-
Omron Brand
-
Tenperature range:
-
0-450
Quick Details
-
Screw Design:
-
Single-screw
-
Screw L/D Ratio:
-
28:1
-
Screw diameter (mm):
-
25
-
Screw Speed (rpm):
-
60 rpm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
ACC
-
Voltage:
-
220/380 V
-
Dimension(L*W*H):
-
3.6*1.5*1.8 meters
-
Power (kW):
-
30
-
Weight:
-
1500 KG
-
Name:
-
mini extruder
-
Keywords:
-
extruder machine price
-
Application Field:
-
small plastic extruder
-
Usage:
-
Hot melt
-
Raw material:
-
plastic Granules
-
Inverter:
-
ABB
-
Motor:
-
SIEMENS Brand
-
Contactor:
-
SIEMENTS
-
Temperature control:
-
Omron Brand
-
Tenperature range:
-
0-450
High quality SJ-65 hot melt plastic Single screw extruder machine for PE PP PA PC PVC PEEK PEI PVA.
Application: This single screw extruder is specially designed for plastic products. .It can processes all kinds of plastic products with auxiliary machines concerned.such as PP/PE/ABS film ,pipe ,bar,plate ,thread ,ribbon ,insulating layer of cable .hollow products and so on .It is also used in graining .
The machine design is advanced .Its production capacity is high plasticization is good,and its energy consumption is low .It adopts hard tooth face of gear for transmission.It has advantages of low noise ,smooth operation ,large loading ,long use-life and so on
Raw material: PE PP PA PC PVC PEEK PEI PVA ETC
Capacity: 30~80 kg/h. (Depends on raw material and finial product)

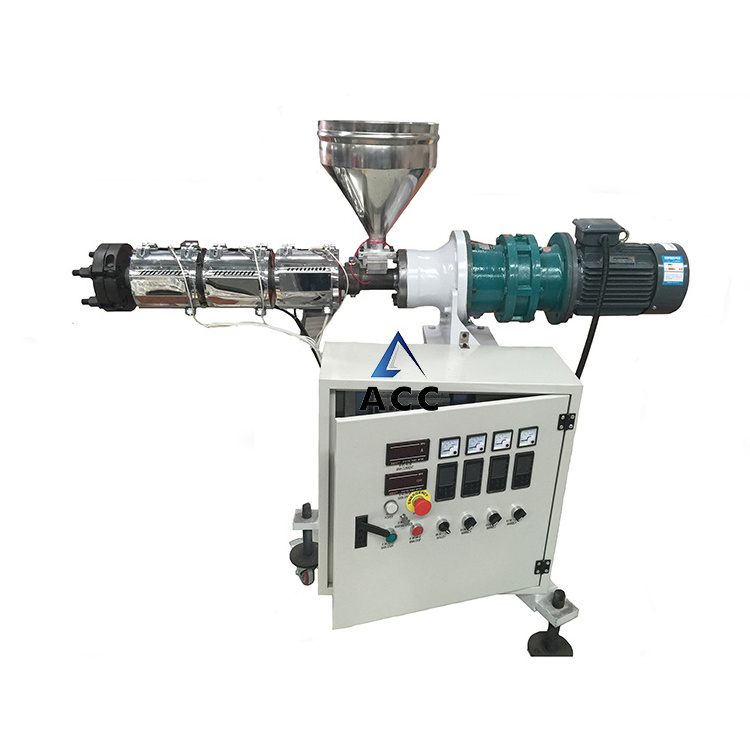

SJ 25 Mini Plastic Extruder
1. Simple description of Mini Plastic Extruder :
The SJ25 Mini Plastic Extruder is mainly used for experiment, that used for testing and extruding thermo-plastic such as soft hard polyvinyl chloride (PVC) and polystyrene(PE) coordinated with the appropriate auxiliary machine,(including the die).
This Mini Plastic Extruder is advanced in design, good in plasticization and low in energy consumption. The extruder is
characterized by low noise, stable working, big bearing capacity and long service life.
2. Mini Plastic Extruder Main Technical Standards:
The SJ25 Mini Plastic Extruder is mainly used for experiment, that used for testing and extruding thermo-plastic such as soft hard polyvinyl chloride (PVC) and polystyrene(PE) coordinated with the appropriate auxiliary machine,(including the die).
This Mini Plastic Extruder is advanced in design, good in plasticization and low in energy consumption. The extruder is
characterized by low noise, stable working, big bearing capacity and long service life.
2. Mini Plastic Extruder Main Technical Standards:
|
Model No.
SJ25 Mini Plastic Extruder
|
|
25 mm
|
|
30:1
|
|
38CrMoAlA
|
|
HV900-1000
|
|
0.4-0.7 mm
|
|
<0.015 mm
|
|
1.1KW
|
|
Casting Aluminum Heater
|
|
3Periods(Screw Barrel 2periods,Head Piece 1 Periods)
|
|
1.5KW*3=4.5KW
|
|
Forced Air Cooling
|
|
60W*2=0.12KW
|
|
60 rpm
|
|
3Kg/h
|
|
187:1
|
|
2,Main Parts:
|
|
Manufacturer:
|
|
AC Motor
|
|
Jinjiu Screw
|
|
Siemens Contactor
RKC Temperature Control Meter |
|
ABB Frequency Converter
|
|
Machine model
|
L/D
|
Motor power
|
Capacity
|
|
SJ-25
|
28：1
|
1.5 kw
|
0.5~1 kg/h
|
|
SJ-30
|
28：1
|
3 kw
|
3~5 kg/h
|
|
SJ-35
|
28：1
|
5.5 kw
|
8~12 kg/h
|
|
SJ-45
|
28：1
|
11~15 kw
|
20~25 kg/h
|
|
SJ-50
|
28：1
|
15~22 kw
|
25~40 kg/h
|
|
SJ-65
|
28：1
|
18.5~30 kw
|
40~60 kg/h
|
Q1: If I need more information, how to contact you?
A: Send me your demands, we will send back detailed machine specifications with working video.
Q2: How to buy your machine？
A: We send detailed machine quotation to you, if you are satisfied, we will make PROFORMA INVOICE for you.
Payment terms: T/T, L/C, TRADE ASSURANCE
Q3: What about the machine warranty?
A: In some countries, we have agent. We have one-year warranty.
Q4: How can I believe your factory and company?
A: You are welcomed to ask authority agency to visit our factory and machine, we are real factory.
Q5: Do you have other service?
We can send engineer to your factory to install the machine and offer training. Each year, if we have machine technical improvements, we will inform customer.
Q6: Where is your factory located?
Our factory is located in Zhangjiagang city which is nearby Shanghai port, about 2.5 hours car driving. If you want to visit our factory, we can come to pick you up.
A: Send me your demands, we will send back detailed machine specifications with working video.
Q2: How to buy your machine？
A: We send detailed machine quotation to you, if you are satisfied, we will make PROFORMA INVOICE for you.
Payment terms: T/T, L/C, TRADE ASSURANCE
Q3: What about the machine warranty?
A: In some countries, we have agent. We have one-year warranty.
Q4: How can I believe your factory and company?
A: You are welcomed to ask authority agency to visit our factory and machine, we are real factory.
Q5: Do you have other service?
We can send engineer to your factory to install the machine and offer training. Each year, if we have machine technical improvements, we will inform customer.
Q6: Where is your factory located?
Our factory is located in Zhangjiagang city which is nearby Shanghai port, about 2.5 hours car driving. If you want to visit our factory, we can come to pick you up.
