Quick Details
-
Brand Name:
-
Lukes
-
Voltage:
-
380V 3-Phase 50Hz (if special,please info us)
-
Power:
-
6KW
-
Dimension(L*W*H):
-
2700x1300x1700mm
-
Weight:
-
2500 kg
-
Marketing Type:
-
New Product 2021
-
Model:
-
LKS-X12
-
Paper Glass Size:
-
3OZ-12OZ
-
Speed:
-
80-90Pcs/min
-
Total Weight:
-
2500KG
-
Package Size(LxWxH):
-
2700x1300x1700mm
-
Working Power:
-
3.5KW
-
Total Power:
-
6KW
-
Power Source:
-
380V 3-Phase 50Hz (if special,please info us)
-
Material:
-
160~350gsm One-side or Two-side PE(polyethylene)film coated paper
-
Air Requirement(Buy Comperssor):
-
0.4Mpa(4bar)/Air pressure:0.4Mpa(4bar) Air out-put:0.6m3/min
Quick Details
-
Production Capacity:
-
80-90Pcs/min
-
Processing Type:
-
Paper Cup Machine
-
Place of Origin:
-
China
-
Brand Name:
-
Lukes
-
Voltage:
-
380V 3-Phase 50Hz (if special,please info us)
-
Power:
-
6KW
-
Dimension(L*W*H):
-
2700x1300x1700mm
-
Weight:
-
2500 kg
-
Marketing Type:
-
New Product 2021
-
Model:
-
LKS-X12
-
Paper Glass Size:
-
3OZ-12OZ
-
Speed:
-
80-90Pcs/min
-
Total Weight:
-
2500KG
-
Package Size(LxWxH):
-
2700x1300x1700mm
-
Working Power:
-
3.5KW
-
Total Power:
-
6KW
-
Power Source:
-
380V 3-Phase 50Hz (if special,please info us)
-
Material:
-
160~350gsm One-side or Two-side PE(polyethylene)film coated paper
-
Air Requirement(Buy Comperssor):
-
0.4Mpa(4bar)/Air pressure:0.4Mpa(4bar) Air out-put:0.6m3/min
China Factory High Speed Paper Cup Machine Production Line Paper Bowl Coffee Tea Paper Cup Making Machine Price
Products Description

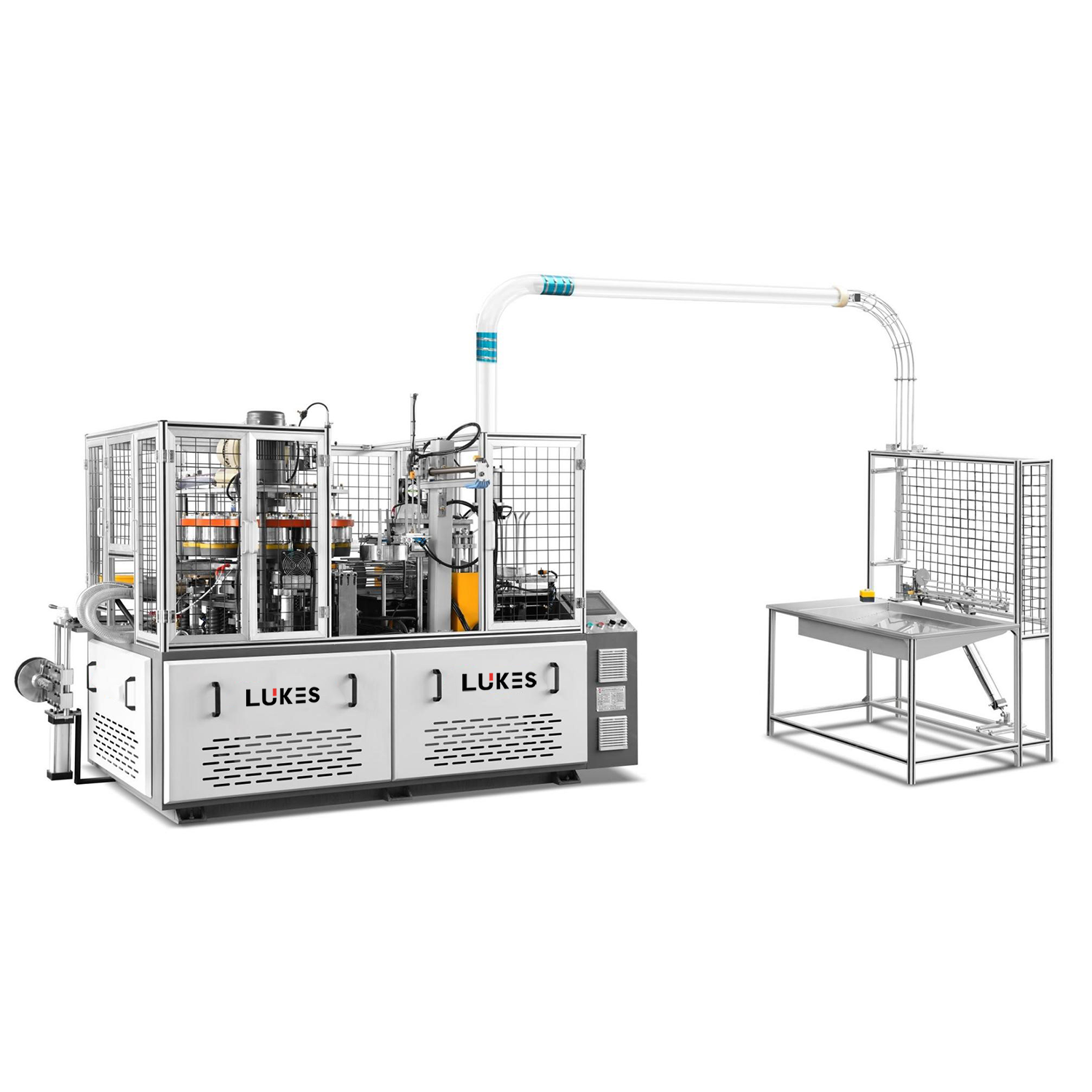

Automatic Paper Cup Machine
LKS-Z12 intelligent paper cup machine adopts a desktop layout, with double-layer separation of transmission and forming. The transmission part adopts the horizontal and vertical axis connection transmission structure, the gears are transmitted in stages, and the mechanical lubrication is continuously supplied with oil. They are all installed in the frame under the table. The forming mold is assembled above the table to avoid cross-contamination and facilitate cleaning and maintenance. Double turntable structure, the middle turntable can realize the functions of cup mouth silicone oil and waste discharge. The machine adopts PLC and touch screen control, servo feeding and photoelectric detection. It is suitable for the production of 2.5-16oz cold & hot drink cup.
Product Paramenters
|
Model
|
LKS-Z12
|
|
Paper Glass Size
|
3OZ-12OZ
|
|
Raw Material
|
One-side PE(polyethylene)film coated/laminated paper
|
|
|
Ultrasonic machine can be produce single and double pe paper
|
|
Speed
|
80-90Pcs/min
|
|
Total Weight
|
2500KG
|
|
Package Size(LxWxH)
|
2700x1300x1700mm
|
|
Working Power
|
3.5KW
|
|
Total Power
|
6KW
|
|
Power Source
|
380V 3-Phase 50Hz (if special,please info us)
|
|
Material
|
160~350gsm One-side or Two-side PE(polyethylene)film coated paper
|
|
Air Requirement(Buy Comperssor)
|
0.4Mpa(4bar)/Air pressure:0.4Mpa(4bar)
|
|
|
Air out-put:0.6m3/min
|
