Quick Details
-
Brand Name:
-
LEFOO
-
Model Number:
-
LFDS65
-
Max. Current:
-
10A
-
Max. Working Pressure:
-
1.6MPa
-
Product Name:
-

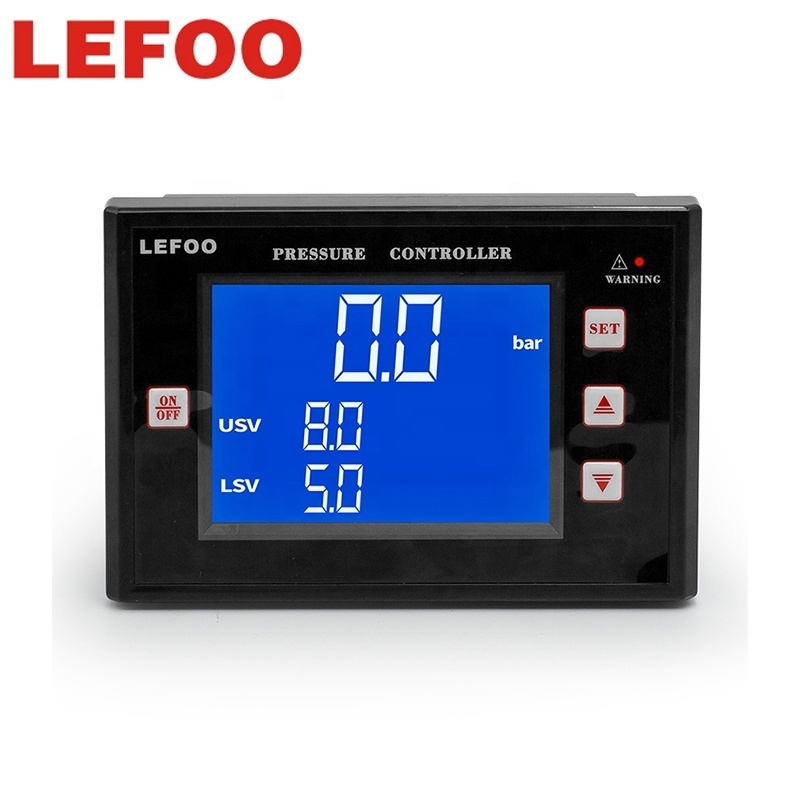

Automatic Pressure Control switch
-
Pressure range:
-
-101-0Kpa; 0-1.6MPa
-
Output Mode:
-
Relay Switch Output / AC output
-
Power supply:
-
220VAC/110VAC
-
Accuracy:
-
±1.0%FS
-
Medium:
-
Non-corrosivedry gas; Gas or liquid compatble with ceramics and copper
-
Operating Temperature:
-
-10℃~50℃
-
Storage Temperature:
-
-40℃~85℃
-
Load Capacity:
-
2200W(Single Route)
-
Installation Interface:
-
NPT1/4 external thread, G1/4, R1/4(optional)
Quick Details
-
Whether the smart:
-
Yes
-
Max. Voltage:
-
220V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
LEFOO
-
Model Number:
-
LFDS65
-
Max. Current:
-
10A
-
Max. Working Pressure:
-
1.6MPa
-
Product Name:
-
Automatic Pressure Control switch
-
Pressure range:
-
-101-0Kpa; 0-1.6MPa
-
Output Mode:
-
Relay Switch Output / AC output
-
Power supply:
-
220VAC/110VAC
-
Accuracy:
-
±1.0%FS
-
Medium:
-
Non-corrosivedry gas; Gas or liquid compatble with ceramics and copper
-
Operating Temperature:
-
-10℃~50℃
-
Storage Temperature:
-
-40℃~85℃
-
Load Capacity:
-
2200W(Single Route)
-
Installation Interface:
-
NPT1/4 external thread, G1/4, R1/4(optional)
PRODUCT DESCRIPTION
SPECIFICATIONS
|
Product Name
|
Digital Pressure Switch
|
|
Medium
|
Non-corrosive dry gas; Gas or liquid compatible with ceramics and copper
|
|
Display Mode
|
LCD
|
|
Pressure Form
|
Gauge pressure
|
|
Warranty
|
1 Year
|
|
Certification
|
CE
|
|
Customized support
|
OEM, ODM
|
|
Place of Origin
|
China
|
|
Brand Name
|
LEFOO
|
|
Model Number
|
LFDS65
|
|
Measurement range
|
-101~0KPa, 0 ~ 1.6Mpa
|
|
Accuracy
|
±1.0%F.S
|
|
Output Mode
|
Relay switch output / AC output
|
|
Rated Operating Voltage
|
220VAC/110VAC
|
|
Load Capacity
|
2200W(Single Route)
|
|
Protection Grade
|
IP54
|
|
Installation Interface
|
NPT1/4 external thread, G1/4, R1/4(optional)
|
|
Working temperature
|
-10℃ ~ 50℃
|
|
Storage temperature
|
-40℃ ~ 85℃
|
APPLICATIONS
RELATED PRODUCTS
WHY CHOOSE US
ABOUT LEFOO
PACKING & DELIVERY
FAQ
Q:What kind of products do you offer ?
A:Lefoo Industrial Co.,Ltd is focusing on RO booster pump, peristaltic pump and rotary vane pump, has became one of the leading micro pump brands in China and even in the world. Zhejiang Lefoo Sensing Technology Co., Ltd is specializing in pressure sensors, pressure transmitters, differential pressure transmitters, pressure switches, pressure
controllers, temperature & pressure integrated transmitters and other pressure Sensing and control products, as well as temperature and humidity transmitters, CO2 transmitters, air speed transmitters, hydrogen sulphide transmitters, ammonia transmitters and other environmental gas products.
Q: Are you manufacturer ?
A: Yes, we are manufacturer with 3 factories.
Q: Can I get samples?
A:Yes, we have materials in stock to help you to get the samples as soon as we can.
Q: Can you make customized products ?
A: Yes, customized is accept, please contact us for specific requirements.
Q: Can I to be your distributor ?
A: Please contact us directly for details.
Q: What's your warranty ?
A:Normally one year warranty.
