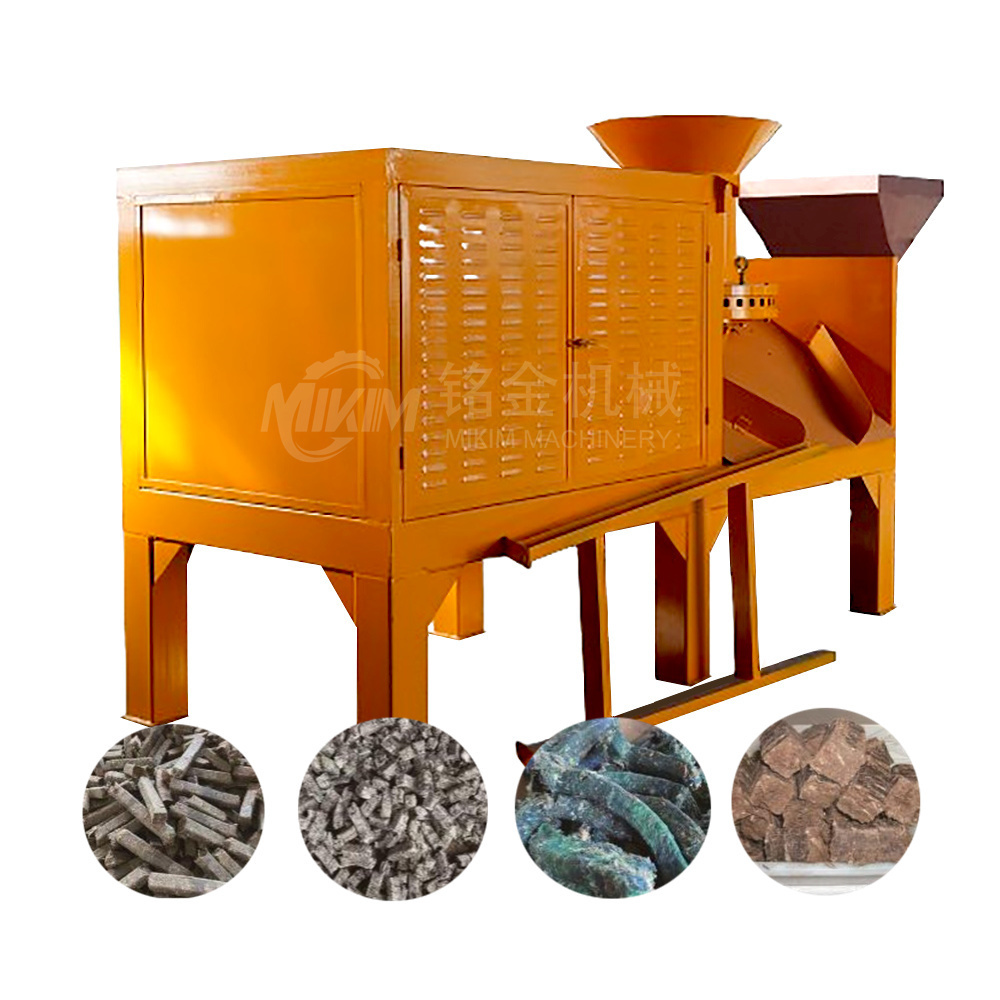

Automatic Alfalfa Hay Cube Briquette Press Machine Wheat Straw Cube Pellet Making Machine

Automatic Alfalfa Hay Cube Briquette Press Machine Wheat Straw Cube Pellet Making Machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $12000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Voltage:: 380V

Dimension(L*W*H):: 3040*1400*1970mm

Weight:: 5000 KG

Features:: Cube Briquette Press Machine

Keywords:: sawdust Cube Briquette Press Machine

Function:: Make Fuel Briquettes

Briquette size:: 8-75mm

Final Briquette Shape:::: solid briquette

Raw Material humidity:: 20~35%

Final Products humidity:: ≤15%

Forming density(g/cm3):::: 0.8-1.4

Briquette shape:: Cube,round

Raw Material:: Straw, sawdust, rice husk, palm fiber, corn straw,hay

Key words:: biomass Briquette Press Machine

Quick Details

Application:: making biomass cube briquette

Place of Origin:: China

Brand Name:: mikim

Voltage:: 380V

Dimension(L*W*H):: 3040*1400*1970mm

Weight:: 5000 KG

Features:: Cube Briquette Press Machine

Keywords:: sawdust Cube Briquette Press Machine

Function:: Make Fuel Briquettes

Briquette size:: 8-75mm

Final Briquette Shape:::: solid briquette

Raw Material humidity:: 20~35%

Final Products humidity:: ≤15%

Forming density(g/cm3):::: 0.8-1.4

Briquette shape:: Cube,round

Raw Material:: Straw, sawdust, rice husk, palm fiber, corn straw,hay

Key words:: biomass Briquette Press Machine

Fuel Solid Waste RDF Briquette Press Machine

The fuel briquetting machine can compress agricultural and forestry waste into coal through high-speed compression. Increase the proportion of biomass, extend the burning time, and facilitate storage and transportation. The machine consists of a forming system, a discharge port, a heating ring, a control cabinet, etc. The raw materials for making rods can be straw, sawdust, rice husks, peanut shells, seed shells, palm fiber, corn stalks, alfalfa, hay, grass, animals, etc. Manure, domestic waste and other biomass waste, RDF, plastic waste, etc.

The finished briquettes are easy to store and transport. It is widely used in heating furnaces, power plants, biogas and other fermentations.

Product introduction

The straw briquetting machine is an efficient and environmentally friendly equipment that pulverizes biomass raw materials such as straw into compressed fuel and feed. Crushed forage can be used as fodder or fuel. After practice and improvement, the briquetting machine has become more and more perfect. The machine has high degree of automation, large output, low price, low energy consumption, simple operation and no environmental pollution. Rice straw tablet press is widely used to crush raw materials such as various crop straws and twigs. The briquetting machine has high degree of automation, high output, low price, low power consumption and simple operation. If there is no electric equipment, a diesel engine can be used instead.

The briquetting machine has strong material adaptability: it is suitable for the molding of various biomass energy raw materials. The briquetting machine can process straw from powder to 50mm in length. Automatic adjustment function of the pressure wheel of the briquetting machine: It uses the principle of bidirectional rotation of the thrust bearing to automatically adjust the pressure angle, so that the material does not squeeze into groups and the machine becomes stuffy, ensuring the stability of the discharging and molding. The briquetting machine is simple to operate and easy to use: it has a high degree of automation and requires less labor. It can be fed manually or automatically by a conveyor.

Specification

Model	2600	3500	4500	6000
Main motor	75kw	110kw	132kw	185kw
Voltage	380v 50hz	380v 50hz	380v 50hz	380v 50hz
Capacity(straw)	1500-2500kg/h	2500-3500kg/h	3000-4500kg/h	4000-6000kg/h
Moisture	14%-25%	14%-25%	14%-25%	14%-25%
Hole quantity	52pcs	72pcs	88pcs	120pcs
Briquette size	32*32mm	32*32mm	32*32mm	32*32mm
Dimension	8000 3400 2800mm	800035001900mm	350022002280mm	403026802380

The working principle of the briquetting machine consists of a feeding conveyor, a compressor and a discharging machine.

The compressor consists of a frame, motor, feed port, transmission system, pressure roller, ring die, electric heating ring, discharge port and other parts.

The working principle of the grass press: cutting or kneading the forage and pasture to be pressed, the length of the forage is less than 50mm, the moisture is controlled at 10~25, the material is sent to the feed port through the feed conveyor, the main shaft bearing operates, pushing the pressure The roller is running, and the pressure roller is running, the material is forced to be extruded from the die hole into a block, and the material falls from the feed port (the moisture content does not exceed 14), and is bagged.

The structural characteristics of the straw briquetting machine are: first, the motor drives the reducer to drive the main shaft bearing to operate, and then the main shaft bearing drives the pressure roller to operate. The structure is simple and is conducive to maintenance; secondly, the radial gap between the pressure roller and the mold is easy to adjust. , which can ensure the gap between the two pressure rollers and the mold; third, by adding upper and lower electric heating rings, the ring mold can be heated, which is beneficial to material molding.
