Quick Details
-
Brand:
-
Brogen
-
Rated power:
-
3KW
-
Input voltage range:
-
200V~750V DC
-
Output voltage:
-
DC 14V(1.5KW/2KW,10~16V); DC 27V(3KW)
-
Voltage stabilizing accuracy:
-
≤2%
-
Level of protection:
-
IP67
-
Control mode:
-
CAN/Digital level enablement
-
Cooling method:
-
Water-cooled
-
External dimension:
-
225*125*55mm(1.5KW/2KW Single mode )/235*120*58.5mm(3KW Single mode)
-
Application:
-
Electric Bus
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Model Number:
-
3KW
-
Brand Name:
-
Brogen
-
Brand:
-
Brogen
-
Rated power:
-
3KW
-
Input voltage range:
-
200V~750V DC
-
Output voltage:
-
DC 14V(1.5KW/2KW,10~16V); DC 27V(3KW)
-
Voltage stabilizing accuracy:
-
≤2%
-
Level of protection:
-
IP67
-
Control mode:
-
CAN/Digital level enablement
-
Cooling method:
-
Water-cooled
-
External dimension:
-
225*125*55mm(1.5KW/2KW Single mode )/235*120*58.5mm(3KW Single mode)
-
Application:
-
Electric Bus
Products Description
Brogen 3KW Input Voltage 200V-750V Output 27V Step Down DC/DC Converters for Electric Bus
|
Rated power
|
1.5KW/2KW/3KW
|
|
Input voltage range
|
200V~750V DC
|
|
Output voltage
|
DC 14V(1.5kw/2kw, 10~16V) / DC 27V(3kw)
|
|
Voltage stabilizing accuracy
|
≤2%
|
|
Protection
|
IP 67
|
|
Control Mode
|
CAN/Digital level enablement
|
|
Cooling mode
|
Water cooled
|
|
External dimension
|
225*125*55mm (1.5KW/2KWSingle mode /235*120*58.5mm (3KW Single mode)
|

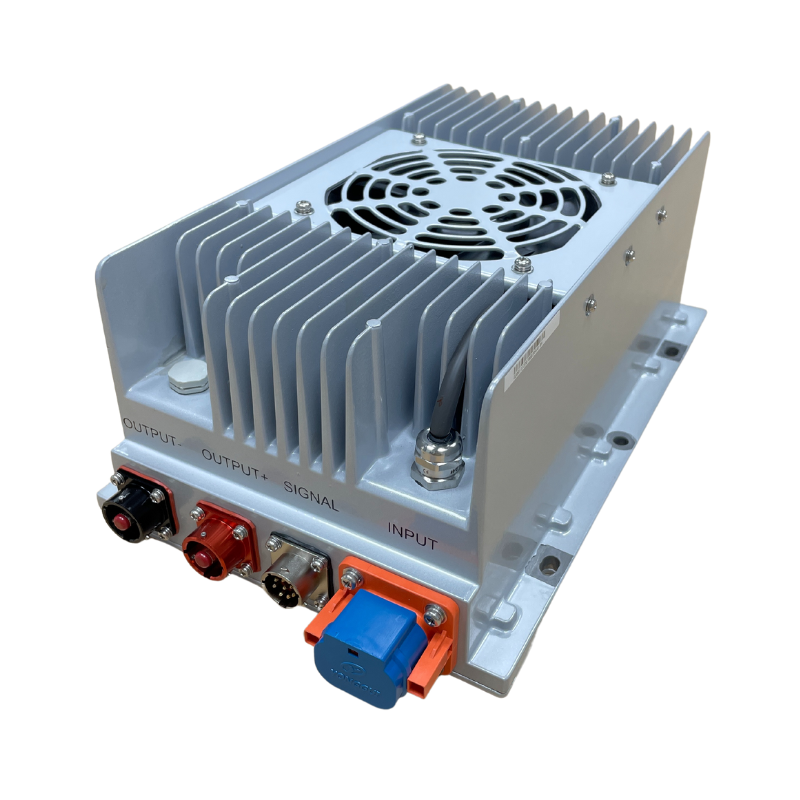

DC-DC Isolated controller
200-750Vdc Input, 27.5V dc output, power 3000W
|
Operating temperature
|
-40～+70°C
|
|
Storage temperature
|
-40～+95°C
|
|
Relative humidity
|
5～95%
|
|
Altitude
|
0～3000m
|
|
Cooling method
|
wind
|
|
Dustproof and waterproof
|
IP67
|
Main features:
Overall dimension: 310mm×201mm×126mm
The weight of the whole machine: ≤7.5KG
The efficiency of the whole machine: 96%
Output ripple and noise: ≤300mVp-p
Input anti-reverse connection
Input over voltage protection
Output over current and short circuit protection (automatically recoverable)
Over temperature protection (automatically recoverable)
Dielectric strength: 3500Vdc
Input anti-reverse connection
Input over voltage protection
Output over current and short circuit protection (automatically recoverable)
Over temperature protection (automatically recoverable)
Dielectric strength: 3500Vdc
Working temperature: -40 — +85°C
MTBF: ≥ 300,000H
Application scenarios: Suitable for all kinds of new energy vehicles such as pure electric/hybrid/extended range
MTBF: ≥ 300,000H
Application scenarios: Suitable for all kinds of new energy vehicles such as pure electric/hybrid/extended range
