Desorption electrolysis system is applied to recover solid gold from carbons in the cyaniding process. It is equipped with
liquid-level controlling system, temperature controlling system and automatic controlling system.Scope of Application : High
temperature and high pressure desorption electrolysis system
- Product Details
- {{item.text}}
Quick Details
-
Keywords:
-
CIL Plant
-
Usage:
-
CIP CIL Plant
-
Color:
-
customerized
-
Certificate:
-
ISO9001:2008
-
Advantage:
-
High capacity
-
Installation:
-
Engineer guide
-
Feature:
-
Long Service Life
-
After-sale service:
-
provided
-
Quality:
-
High level
-
Market:
-
Global
Quick Details
-
Weight (KG):
-
1
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
jinpeng
-
Keywords:
-
CIL Plant
-
Usage:
-
CIP CIL Plant
-
Color:
-
customerized
-
Certificate:
-
ISO9001:2008
-
Advantage:
-
High capacity
-
Installation:
-
Engineer guide
-
Feature:
-
Long Service Life
-
After-sale service:
-
provided
-
Quality:
-
High level
-
Market:
-
Global

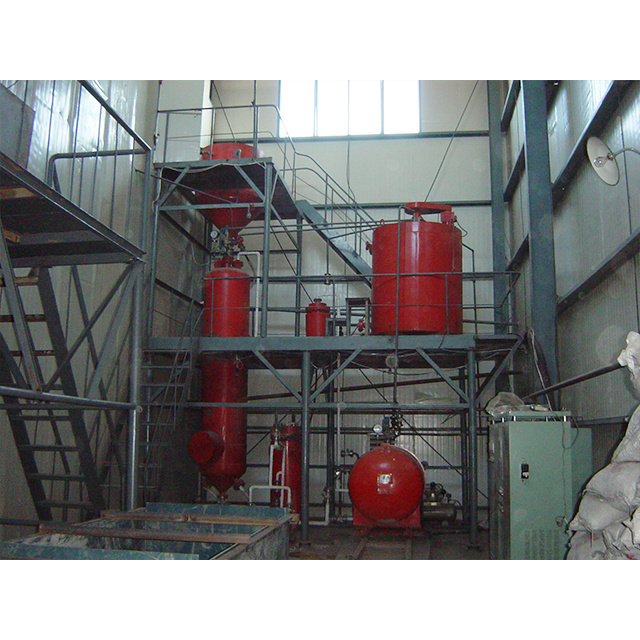

Desorption electrowinning equipment
working principle
Desorption electrowinning equipment including: desorption column, electrolytic cell, electric heater, desorption fluid tank,
filter, electric control cabinet, rectifier cabinet, circulating pump, activated carbon regeneration furnace, etc.
filter, electric control cabinet, rectifier cabinet, circulating pump, activated carbon regeneration furnace, etc.
When the desorption system is added with anions which are more easily absorbed by activated carbons, Au(CN)2 is replaced by anion and the gold desorption is achieved. After the carbons loaded with gold are desorbed, pregnant solution is process via ionization.At last, solid gold is attained.
Advantage
1. High-efficiency: when the grade of loaded carbon reaches 3000g/t, the desorption rate can reach more than 96%, the barren carbon tenor with this equipment comparing with that of normal desorption electrowinning equipment will reduce to its one fourth.
2. Rapid: the temperature of desorption electrowinning can reach as high as 150°C(generally 30-55°C higher than in other kind system), and the working pressure of system can reach as high as 0.5 Mpa (generally 0.2-0.5 Mpa higher than in other kind system), so the desorption electrowinning is rapid with 12 hours typically(50%-60 % time shorted).
3. Low consumption: the same temperature for desorption, no need of heat-exchanging, working speed is rapid, power consumption is 1/2-1/4 of normal system.
2. Rapid: the temperature of desorption electrowinning can reach as high as 150°C(generally 30-55°C higher than in other kind system), and the working pressure of system can reach as high as 0.5 Mpa (generally 0.2-0.5 Mpa higher than in other kind system), so the desorption electrowinning is rapid with 12 hours typically(50%-60 % time shorted).
3. Low consumption: the same temperature for desorption, no need of heat-exchanging, working speed is rapid, power consumption is 1/2-1/4 of normal system.
Product Paramenters
|
Desorption electrowinning equipment
|
|
|
|
|
||||
|
Model
|
Suitable size
|
|
Operating parameter
|
|
||||
|
|
Mine scale(t/d)
|
Crudes quality(g/t)
|
|
|
||||
|
GKJD-200
|
＜150
|
2--8
|
Temperature：150±2OC
(Na0H)PH：≥13.5
Desorption pressure tank：0.5(Mpa)
Electrolytic tank pressure：0.45(Mpa)
|
|
||||
|
GKJD-300
|
150-300
|
2--8
|
|
|
||||
|
GKJD-500
|
300-500
|
2--8
|
|
|
||||
|
GKJD-700
|
300-500
|
2--8
|
|
|
||||
|
GKJD-1000
|
500-1000
|
2--8
|
|
|
||||
|
GKJD-1500
|
500-1000
|
2--8
|
|
|
||||
|
GKJD-2000
|
1000-2000
|
2--20
|
|
|
||||
|
GKJD-2500
|
1000-2000
|
2--20
|
|
|
||||
|
GKJD-3000
|
1000-2000
|
2--20
|
|
|
||||
|
GKJD-3500
|
2000-3000
|
2--20
|
|
|
||||
|
GKJD-4000
|
2000-3000
|
2--20
|
|
|
||||
|
GKJD-5000
|
2000-3000
|
2--20
|
|
|
||||
|
GKJD-8000
|
3000-5000
|
2--20
|
|
|
||||
Success cases
Turkey 4,000tpd copper slag plant
Ore type: Copper slag after smelting
Design capacity: 4,000 tons per day
ARMENIA 2M TPA COPPER
FLOTATION PLANT
Ore type: Copper sulphide ore
Design capacity: 2,000,000 tons per annual
