Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
STC
-
Model Number:
-
l600
-
Machine Type:
-
Drilling Machine
-
Type:
-
drill chuck
-
Product Name:
-
key type drill chuck
-
Application:
-
Suitable
-
Usage:
-
Clamping
-
Payment:
-
T/T
-
Size:
-
1-13mm
-
Model:
-
key type
Quick Details
-
Number of Jaws:
-
3
-
Material:
-
Steel
-
Warranty:
-
1 year
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
STC
-
Model Number:
-
l600
-
Machine Type:
-
Drilling Machine
-
Type:
-
drill chuck
-
Product Name:
-
key type drill chuck
-
Application:
-
Suitable
-
Usage:
-
Clamping
-
Payment:
-
T/T
-
Size:
-
1-13mm
-
Model:
-
key type

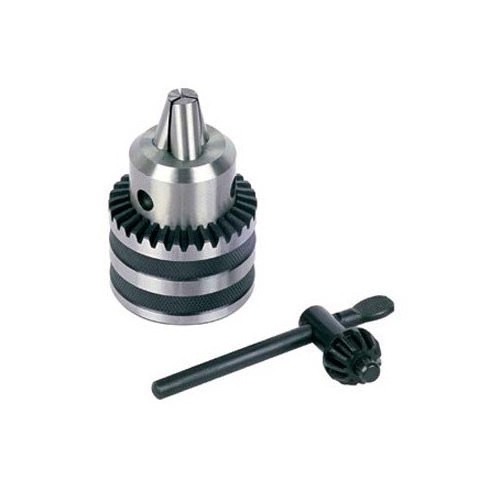

Keyed drill chucks drill chuck with key.
- Recommended for impact electric drills up to 1050W.Color and style can be made according to the customer's demands to match different drills.
- Holding Scope:1-13,3-16,5-20
- Taper bore: B16,B18,B22
|
Model |
Capacity |
Mount |
D
|
L1
|
L
|
|
|
mm |
Inch |
|||||
|
J3506L |
0.6-6 |
1/64-1/4 |
3/8-24UNF |
30.3 |
40 |
49 |
|
J3510L |
1.5-10 |
1/16-3/8 |
3/8-24UNF |
34 |
49 |
58.5 |
|
J3510L |
1.5-10 |
1/16-3/8 |
1/2-20UNF |
34 |
49 |
58.5 |
|
J3510L |
1.5-10 |
1/16-3/8 |
M10×1.0 |
34 |
49 |
58.5 |
|
J3510L |
1.5-10 |
1/16-3/8 |
M12×1.25 |
34 |
49 |
58.5 |
|
J3513L |
1.5-13 |
1/16-1/2 |
3/8-24UNF |
42 |
59 |
71.5 |
|
J3513L |
1.5-13 |
1/16-1/2 |
1/2-20UNF |
42 |
59 |
71.5 |
|
J3513L |
1.5-13 |
1/16-1/2 |
M12×1.0 |
42 |
59 |
71.5 |
|
J3513L |
1.5-13 |
1/16-1/2 |
M12×1.25 |
42 |
59 |
71.5 |
|
J3513L |
1.5-13 |
1/16-1/2 |
M14×1.0 |
42 |
59 |
71.5 |
|
J3516L |
3.0-16 |
1/8-5/8 |
3/8-24UNF |
52 |
67 |
86 |
|
J3516L |
3.0-16 |
1/8-5/8 |
1/2-20UNF |
52 |
67 |
86 |
|
J3516L |
3.0-16 |
1/8-5/8 |
5/8-16UNF |
52 |
67 |
86 |
|
J3516L |
3.0-16 |
1/8-5/8 |
M12×1.25 |
52 |
67 |
86 |
