300w 400w 800w 1kw 2kw X type wind turbine home wind turbine wind turbine technology for home use

300w 400w 800w 1kw 2kw X type wind turbine home wind turbine wind turbine technology for home use

FOB Reference Price: Get Latest Price

≥1 Sets

US $268

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: ES-X

Warranty:: 1 Year

Certification:: CE

Output Voltage:: 12V/24V/48V/96V/120V/220V/380V/480V/600V

rotor diameter:: 0.8m

Keywords:: 5kw wind turbine home wind turbine wind turbine technology home use

Start the Wind Speed:: 2m/s

Rated Wind Speed:: 12m/s

Safe Wind Speed:: ≤50m/s

Blade Height:: 1.5m

Number of Blades:: 3 pcs

Blade Material:: Aluminum Alloy

Fuselage Material:: Aluminum Alloy

Control Mode:: Electromagnetic Brakes

Degree of Protection:: IP54

Quick Details

Rated Power:: 100W~100KW

Place of Origin:: Jiangsu, China

Brand Name:: DHC

Model Number:: ES-X

Warranty:: 1 Year

Certification:: CE

Output Voltage:: 12V/24V/48V/96V/120V/220V/380V/480V/600V

rotor diameter:: 0.8m

Keywords:: 5kw wind turbine home wind turbine wind turbine technology home use

Start the Wind Speed:: 2m/s

Rated Wind Speed:: 12m/s

Safe Wind Speed:: ≤50m/s

Blade Height:: 1.5m

Number of Blades:: 3 pcs

Blade Material:: Aluminum Alloy

Fuselage Material:: Aluminum Alloy

Control Mode:: Electromagnetic Brakes

Degree of Protection:: IP54

Product Description

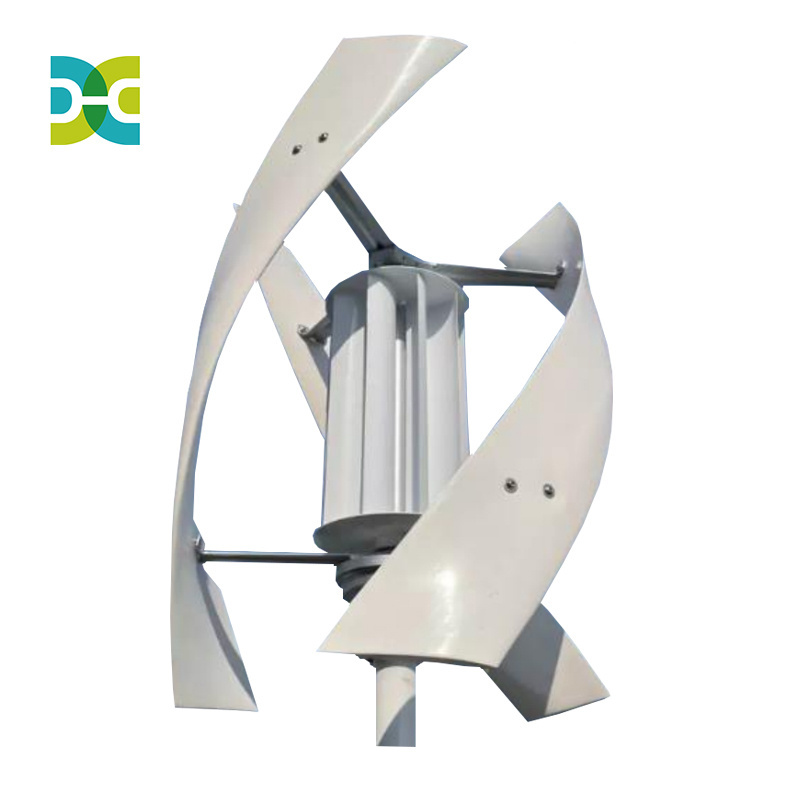

300w 400w 800w 1kw 2kw X type wind turbine home wind turbine wind turbine technology for home use

The X Model vertical wind turbine adopts the horizontal plane rotation and the design of the blades using the principle of aircraft wings, which reduces the noise to a level that cannot be measured in the natural environment. Due to eolic generator's different design structure and operating principle, vertical wind turbine has a smaller turning radius than other forms of wind power generation, which saves space and improves efficiency at the same time.

Technical Parameter

Model

X3-

100

X3-

200

X3-

300

X5-

400

X5-

500

X5-

600

X9-

800

X9-

1000

X9-

1500

Rated power

100w

200w

300w

400w

500w

600w

800w

1kw

1.5kw

Rated voltage

12V/24V

12V/24V/48V

24V/48V/96V

Start the wind speed

2m/s

Rated wind speed

12m/s

Safe wind speed

≤50m/s

Fan blade diameter

0.55m

0.65m

0.8m

1.1m

Fan blade height

0.75m

0.9m

1.5m

1.65m

Blades number

3 pcs

Blade material

nylon

Reinforced FRP

Aluminum alloy

Fuselage material

Aluminum alloy

Magnetic steel material

NdFeB

Generator type

Three-phase AC permanent magnet levitation generator

Control mode

Electromagnetic brakes

Wind direction adjustment

360° automatic windward wind

Service life

≥20 years

Degree of protection

IP54

Net weight

9kg

9.5kg

10kg

20kg

21kg

22kg

gross weight

10kg

10.5kg

11kg

21kg

22kg

23kg

Packing size

86*38*20cm

106*27*49cm

100*37*41cm

220*30*50cm

100*52*57cm+

220*30*50cm

5kw wind turbine home wind turbine wind turbine technology for home use

The X-type eolic generator adopts vertical blades, and the main stress points are concentrated on the hub, so the problems of blade falling off, breaking and blade flying out have been better solved. The principle of horizontal rotation and vertical flat blades makes it less affected by wind pressure and can resist super typhoons of 45 meters per second.

The blade itself has speed protection, and can be equipped with mechanical manual and electronic automatic brakes. In areas without typhoons and super gusts, only manual brakes need to be set.

Details Images

5kw wind turbine home wind turbine wind turbine technology for home use

The wind turbine adopts a special control principle, which expands its suitable operating wind speed range to 2.5-25m/s, maximizing the use of wind resources while achieving greater total power generation, improving the economy of using wind power equipment.

The X-type wind turbine utilizes tensioned X-type support blades and vertical blades to jointly utilize wind energy, and is installed on the ground or on the top of a building.

Its structure can be large-scale and effectively reduce manufacturing costs and improve wind energy utilization, but it has certain restrictions on land utilization and installation site.

Project Cases

Project Case Display

Our company is committed to providing customers with one-stop services for wind and solar hybrid systems. The main products include 100w-100kw small and medium-sized wind generator , solar panel , photoelextric water heater and heating furnace, solar energy storage system , portable power station , etc. Our company's products sold worldwide. The company has won the unanimous recognition of consumers with satisfactory quality and perfect after-sales service. We has a professional team, which can help you solve questions.

Recommend Products

All types of our wind generator

We mainly have several types of wind turbine generator above, as well as solar wind turbine system .
The working principle of a wind turbine is relatively simple. The wind rotor rotates under the action of the wind, which converts the kinetic energy of the wind into the mechanical energy of the wind rotor shaft, and the generator rotates to generate electricity under the drive of the wind rotor shaft.
