Quick Details
-
Brand Name:
-
HaoDing
-
Model Number:
-
HD-EC21
-
Product name:
-
rfid elevator access control
-
Model:
-
HD-EC21
-
Application:
-
Hotel lift, door access contol etc
-
Color:
-
Silver
-
Whole system:
-
card reader + control board
-
Available hotel cards:
-
T5577, M1 etc
-
Swiping valid card:
-
yes
-
Installation:
-
Easy
-
Power supply:
-
12v
-
Usage:
-
Electronic Building Door Card Access Control
Quick Details
-
Special Features:
-
Waterproof / Weatherproof
-
Customized support:
-
Online technical support
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HaoDing
-
Model Number:
-
HD-EC21
-
Product name:
-
rfid elevator access control
-
Model:
-
HD-EC21
-
Application:
-
Hotel lift, door access contol etc
-
Color:
-
Silver
-
Whole system:
-
card reader + control board
-
Available hotel cards:
-
T5577, M1 etc
-
Swiping valid card:
-
yes
-
Installation:
-
Easy
-
Power supply:
-
12v
-
Usage:
-
Electronic Building Door Card Access Control
Hotel and Commercial Elevator access control system
rfid card reader for hotel elevator, door access control etc

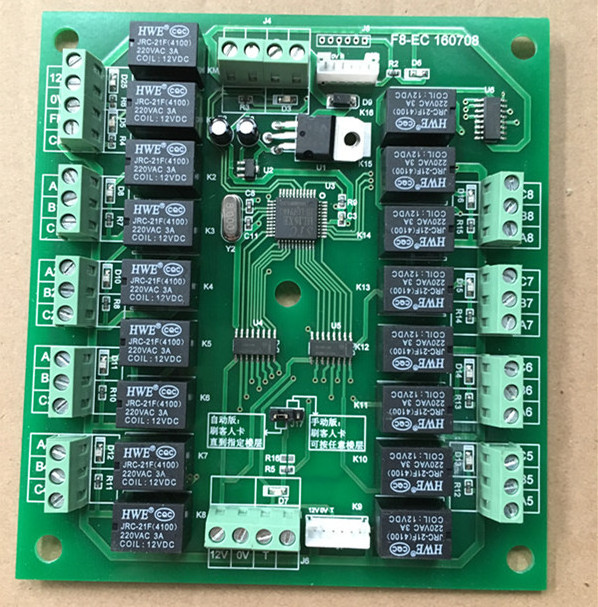

Control board
From left to right are 1~6 pin, defined as follows:
1:12V, positive 12V power supply
2:0V, connect to power ground
3: No wiring
4: No wiring
5:COM, output common
6:O, output control
One board can control 8 floors, can extend connecting with 8 boards, total control 64 floors.
This product can be used for:
A. Hotel elevator access control,
B. Community door access control,
C. Only control the single-key elevator controller.
Swiping valid card, the 5th and 6th pin is connected for 5 seconds, 2 pins can be connected regardless of the direction, please advise the corresponding system while ordering, such as temic 5577, M1 etc...
Before using, you must first install the information. Configuration method: Using one of the room cards to install information.
