Quick Details
-
Brand Name:
-
DAYTAI
-
Receiving Optical Power:
-
-9 ~ +2 dBm
-
Optical AGC Range:
-
-7/-8/-9 ~ +2 (adjustable) dBm
-
Optical Return Loss:
-
>45 dB
-
Optical Receiving Wavelength:
-
1100 ~ 1600 mm
-
Optical Connector Type:
-
FC/APC, SC/APC or specified by the user
-
Fiber Type:
-
Single Mode
-
RF Frequency Range:
-
45 ~862/1003
-
RF Flatness in Band:
-
±0.75 dB
-
RF Output Impedance:
-
75 Ω
-
Use:
-
FTTX
Quick Details
-
Type:
-
FTTx Solutions
-
Model Number:
-
DT-HORL-8604R
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
DAYTAI
-
Receiving Optical Power:
-
-9 ~ +2 dBm
-
Optical AGC Range:
-
-7/-8/-9 ~ +2 (adjustable) dBm
-
Optical Return Loss:
-
>45 dB
-
Optical Receiving Wavelength:
-
1100 ~ 1600 mm
-
Optical Connector Type:
-
FC/APC, SC/APC or specified by the user
-
Fiber Type:
-
Single Mode
-
RF Frequency Range:
-
45 ~862/1003
-
RF Flatness in Band:
-
±0.75 dB
-
RF Output Impedance:
-
75 Ω
-
Use:
-
FTTX
CATV High-class 4Way AGC Outdoor Optical Receiver (DT-HORL-8604R), It is the main equipment to build the CATV network,(Forward optical receiver part:Optical Parameter,Receiving Optical Power:-9 ~ +2dBm,Optical AGC Range:-7/-8/-9 ~ +2dBm (adjustable),Optical Receiving Wavelength:1100 ~ 1600nm,Optical Connector Type: FC/APC, SC/APC or specified by the user,RF Parameter:Frequency Range:45 ~862MHz OR 1003MHz,Rated Output Level:≥ 108dBμV,Max Output Level:≥ 114dBμV),(Return Optical Transmitter Part:Optical Parameter,Optical Transmit Wavelength:1310±10nm, 1550±10nm or specified by the user,Optical Connector Type:FC/APC, SC/APC or specified by the user,RF Parameter:Frequency Range:5 ~ 65MHz OR specified by the user,Input Level:72~ 85,General Performance:Supply Voltage:A: AC (150~265)V; B: AC (35~90)V,Dimension:340mm (L)╳ 235mm (W)╳ 140 mm(H),Add SNMP (Network Management) is optional,Power Plug:European standard Plug or American standard Plug is optional.

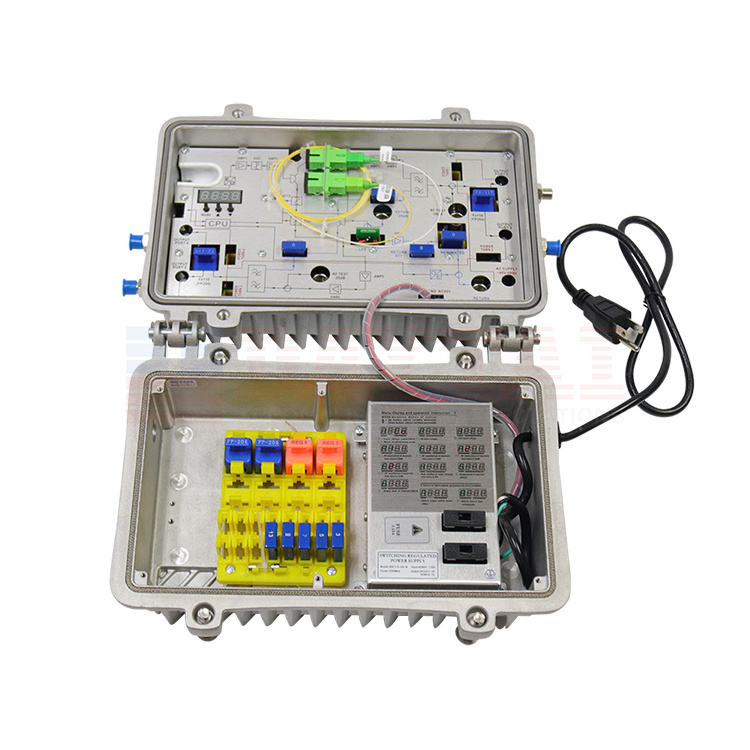

DT-HORL-8604R is our latest high-grade four-output CATV network optical receiver. The pre-amplifier adopts full-GaAs MMIC,post-amplifier adopts GaAs module. Optimized circuit design coupled with rich professional design experience, make the equipment achieve good performance indexes. Microprocessor control, digital display the parameters, the engineering debug is especially easy. It is the main equipment to build the CATV network.
Performance Characteristics
⊙Reserved EOC functional unit (optional).
⊙High response PIN photoelectric conversion tube.
⊙Excellent AGC performance, the AGC range is －9～＋2dBm adjustable.
⊙GaAs amplifier device, power doubler output, with high gain and low distortion.
⊙Specialized RF attenuation chip, with good RF attenuation and equilibrium linear, high accuracy.
⊙Optimized circuit design, SMT process production, optimized signal path, make the photoelectric signal transmission more smooth.
⊙Reserved data communication interface, can connect withⅡclass network management responder, access to network management system.
⊙Return path can select burst mode to sharply decrease the noise convergence and greatly improve the quality and reliability of the network operation.
⊙Single Chip Microcomputer (SCM) control equipment working, LCD display the parameters, convenience and intuitive operation, and stable performance.
DT-HORL-8604R is our latest high-grade four-output CATV network optical receiver. The pre-amplifier adopts full-GaAs MMIC,post-amplifier adopts GaAs module. Optimized circuit design coupled with rich professional design experience, make the equipment achieve good performance indexes. Microprocessor control, digital display the parameters, the engineering debug is especially easy. It is the main equipment to build the CATV network.
Performance Characteristics
⊙Reserved EOC functional unit (optional).
⊙High response PIN photoelectric conversion tube.
⊙Excellent AGC performance, the AGC range is －9～＋2dBm adjustable.
⊙GaAs amplifier device, power doubler output, with high gain and low distortion.
⊙Specialized RF attenuation chip, with good RF attenuation and equilibrium linear, high accuracy.
⊙Optimized circuit design, SMT process production, optimized signal path, make the photoelectric signal transmission more smooth.
⊙Reserved data communication interface, can connect withⅡclass network management responder, access to network management system.
⊙Return path can select burst mode to sharply decrease the noise convergence and greatly improve the quality and reliability of the network operation.
⊙Single Chip Microcomputer (SCM) control equipment working, LCD display the parameters, convenience and intuitive operation, and stable performance.
P
arameter
|
Item
|
Unit
|
Technical Parameter
|
|
|
||||
|
Forward optical receiver part
|
|
|
|
|
||||
|
Optical Parameter
|
|
|
|
|
||||
|
Receiving Optical Power
|
dBm
|
-9 ~ +2
|
|
|
||||
|
Optical AGC Range
|
dBm
|
-7/-8/-9 ~ +2 (adjustable)
|
|
|
||||
|
Optical Return Loss
|
dB
|
>45
|
|
|
||||
|
Optical Receiving Wavelength
|
nm
|
1100 ~ 1600
|
|
|
||||
|
Optical Connector Type
|
|
FC/APC, SC/APC or specified by the user
|
|
|
||||
|
Fiber Type
|
|
Single Mode
|
|
|
||||
|
Link Performance
|
|
|
|
|
||||
|
C/N
|
dB
|
≥ 51 (-1dBm input)
|
|
|
||||
|
C/CTB
|
dB
|
≥ 65
|
Output level 108dBμV
EQ 8dB |
|
||||
|
C/CSO
|
dB
|
≥ 60
|
|
|
||||
|
RF Parameter
|
|
|
|
|
||||
|
Frequency Range
|
MHz
|
45 ~862/1003
|
|
|
||||
|
Flatness in Band
|
dB
|
±0.75
|
|
|
||||
|
Rated Output Level
|
dBμV
|
≥ 108
|
|
|
||||
|
Max Output Level
|
dBμV
|
≥ 114
|
|
|
||||
|
Output Return Loss
|
dB
|
(45 ~550MHz)≥16/(550~1000MHz)≥14
|
|
|
||||
|
Output Impedance
|
Ω
|
75
|
|
|
||||
|
Electronic Control EQ Range
|
dB
|
0～15
|
|
|
||||
|
Electronic Control ATT Range
|
dB
|
0～15
|
|
|
||||
|
Return Optical TransmitterPart
|
|
|
|
|
||||
|
Optical Parameter
|
|
|
|
|
||||
|
Optical Transmit Wavelength
|
nm
|
1310±10, 1550±10 or specified by the user
|
|
|
||||
|
Output Optical Power
|
mW
|
0.5, 1, 2
|
|
|
||||
|
Optical Connector Type
|
|
FC/APC, SC/APC or specified by the user
|
|
|
||||
|
RF Parameter
|
|
|
|
|
||||
|
Frequency Range
|
MHz
|
5 ~ 65 (or specified by the user)
|
|
|
||||
|
Flatness in Band
|
dB
|
±1
|
|
|
||||
|
Input Level
|
dBμV
|
72~ 85
|
|
|
||||
|
Output Impedance
|
Ω
|
75
|
|
|
||||
|
NPRDynamic Range
|
dB
|
≥15 (NPR≥30 dB)
Use DFB laser |
|
≥10 (NPR≥30 dB)
Use FP laser |
||||
|
General Performance
|
|
|
|
|
||||
|
Supply Voltage
|
V
|
A: AC (150~265)V; B: AC (35~90)V
|
|
|
||||
|
Operating Temperature
|
℃
|
-40~60
|
|
|
||||
|
Storage Temperature
|
℃
|
-40~65
|
|
|
||||
|
Relative Humidity
|
%
|
Max 95% no condensation
|
|
|
||||
|
Consumption
|
VA
|
≤ 34
|
|
|
||||
|
Dimension
|
mm
|
340 (L)╳ 235 (W)╳ 140 (H)
|
|
|
||||
Ordering Information
|
Item
|
DAYTAI Model
|
Description
|
|
|
|||
|
1
|
DT-HORL-8604
|
Without Return Part
|
|
|
|||
|
2
|
DT-HORL-8604R
|
With Return Part
|
|
|
|||
|
3
|
Optional Configuration:
|
|
|
|
|||
|
4
|
Forward optical receiver part
|
Optical Parameter
|
Optical Connector Type
|
FC/APC, SC/APC or specified by the user
|
|||
|
5
|
|
RF Parameter
|
Frequency Range
|
45 ~862MHz OR 1003MHz
|
|||
|
6
|
Return Optical Transmitter Part
|
Optical Parameter
|
Optical Transmit Wavelength
|
1310±10nm, 1550±10nm or specified by the user
|
|||
|
|
|
|
Optical Connector Type
|
FC/APC, SC/APC or specified by the user
|
|||
|
|
|
RF Parameters
|
Frequency Range
|
5 ~ 65MHz (or specified by the user)
|
|||
