Quick Details
-
Warranty:
-
12 Years
-
Brand Name:
-
JA SOLAR
-
Model Number:
-
JAM72S30
-
Place of Origin:
-
Shanghai, China
-
Panel Dimensions:
-
227.9*113.4*3.5cm
-
Product name:
-
Solar Panel
-
Cell:
-
Mono
-
Number of Cells:
-
144(24*6)
-
Dimension:
-
2279*1134*35mm
-
Weight:
-
28.6kg
-
Junction Box:
-
IP68, 3 diodes
-
Maximum System Voltage:
-
1000V/1500V DC
-
Operate Temperature:
-
-40℃~+85℃
-
Fire Performance:
-
U L Type 1
-
Packaging:
-
31pcs/Pallet, 620pcs/40ft Container
-
Certificate:
-
TUV,CE,IEC,ISO
Quick Details
-
Cell size:
-
standard
-
Type:
-
PERC, Half Cell
-
Panel Efficiency:
-
525W-550W
-
Warranty:
-
12 Years
-
Brand Name:
-
JA SOLAR
-
Model Number:
-
JAM72S30
-
Place of Origin:
-
Shanghai, China
-
Panel Dimensions:
-
227.9*113.4*3.5cm
-
Product name:
-
Solar Panel
-
Cell:
-
Mono
-
Number of Cells:
-
144(24*6)
-
Dimension:
-
2279*1134*35mm
-
Weight:
-
28.6kg
-
Junction Box:
-
IP68, 3 diodes
-
Maximum System Voltage:
-
1000V/1500V DC
-
Operate Temperature:
-
-40℃~+85℃
-
Fire Performance:
-
U L Type 1
-
Packaging:
-
31pcs/Pallet, 620pcs/40ft Container
-
Certificate:
-
TUV,CE,IEC,ISO
Specification
|
Specifications
|
|
|
|
Cell
|
Mono
|
|
|
Weight
|
28.6kg±3%
|
|
|
Dimensions
|
2279±2mm*1134±2mm*35±1mm
|
|
|
Cable Cross Section Size
|
4mm² ( IEC ) ,12 AWG ( UL )
|
|
|
No.of cells
|
144 ( 6*24 )
|
|
|
Junction Box
|
IP68, 3 diodes
|
|
|
Connector
|
QC 4.10 ( 1000V ), QC 4.10-35 ( 1500V )
|
|
|
Cable Length(Including Connector)
|
Portrait: 300mm(+)/400mm(-) , Landscape: 1300mm(+) / 1300mm(-)
|
|
|
Packaging Configuration
|
31pcs/Pallet, 620pcs/40ft Container
|
|
|
OPERATING CONDITIONS
|
|
|
|
Maximum System Voltage
|
1000V / 1500V DC
|
|
|
Operating Temperature
|
-40℃~+85℃
|
|
|
Maximum Series Fuse Rating
|
25A
|
|
|
Maximum Static Load, Front
|
5400pa(112lb/ft²)
|
|
|
Maximum Static Load, Back
|
2400pa(50lb/ft²)
|
|
|
NOCT
|
45±2℃
|
|
|
Safety Class
|
Class Ⅱ
|
|
|
Fire Performance
|
U L Type 1
|
|
Products Description

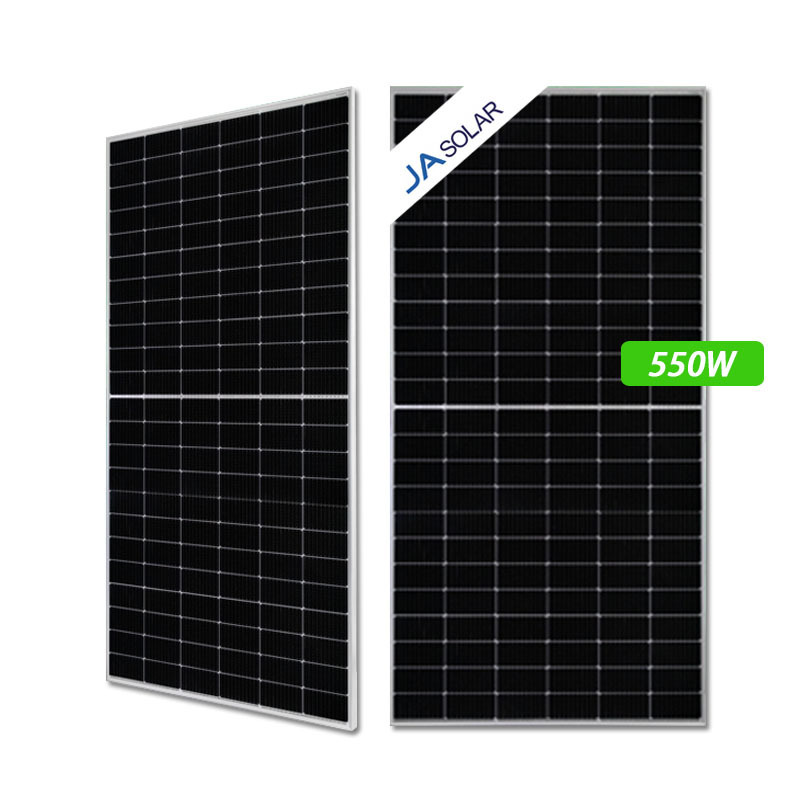

JAM72S30 525-550/MR
Assembled with 11BB PERC cells, the half-cell configuration of the modules offers the advantages of higher power output, better temperature-dependent performance, reduced shading effect on the energy generation, lower risk of hot spot, as well as enhanced tolerance for mechanical loading.
|
Electrical Parameters At STC
|
|
|
|
|
|
|
||||||
|
TYPE
|
JAM72S30-525/MR
|
JAM72S30-530/MR
|
JAM72S30-535/MR
|
JAM72S30-540/MR
|
JAM72S30-545/MR
|
JAM72S30-550/MR
|
||||||
|
Rated Maximum Power(Pmax) (W)
|
525
|
530
|
535
|
540
|
545
|
550
|
||||||
|
Open Circuit Voltage(Voc) (V)
|
49.15
|
49.30
|
49.45
|
49.60
|
49.75
|
49.90
|
||||||
|
Maximum Power Voltage(Vmp) (V)
|
41.15
|
41.31
|
41.47
|
41.64
|
41.80
|
41.96
|
||||||
|
Short Circuit Current(Isc) (A)
|
13.65
|
13.72
|
13.79
|
13.86
|
13.93
|
14.00
|
||||||
|
Maximum Power Current(Imp) (A)
|
12.76
|
12.83
|
12.90
|
12.97
|
13.04
|
13.11
|
||||||
|
Module Efficiency (%)
|
20.3
|
20.5
|
20.7
|
20.9
|
21.1
|
21.3
|
||||||
|
Power Tolerance
|
0~+5w
|
|
|
|
|
|
||||||
|
Temperature Coefficient of Isc
(α_Isc)
|
+0.045%/℃
|
|
|
|
|
|
||||||
|
Temperature Coefficient of Voc
(β_Voc)
|
-0.275%/℃
|
|
|
|
|
|
||||||
|
Temperature Coefficient of Pmax
(γ _Pmp)
|
-0.350%/℃
|
|
|
|
|
|
||||||
|
STC
|
Irradiance 1000W/m², cell temperature 25℃, AM1.5G
|
|
|
|
|
|
||||||
|
Electrical Parameters at NOCT
|
|
|
|
|
|
|
||||||
|
TYPE
|
JAM72S30-525/MR
|
JAM72S30-530/MR
|
JAM72S30-535/MR
|
JAM72S30-540/MR
|
JAM72S30-545/MR
|
JAM72S30-550/MR
|
||||||
|
Rated Max Power(Pmax) (W)
|
397
|
401
|
405
|
408
|
412
|
416
|
||||||
|
Open Circuit Voltage(Voc) (V)
|
46.05
|
46.18
|
46.31
|
46.43
|
46.55
|
46.68
|
||||||
|
Max Power Voltage(Vmp) (V)
|
38.36
|
38.57
|
38.78
|
38.99
|
39.20
|
39.43
|
||||||
|
Short Circuit Current(Isc) (A)
|
10.97
|
11.01
|
11.05
|
11.09
|
11.13
|
11.17
|
||||||
|
Max Power Current(Imp) (A)
|
10.35
|
10.39
|
10.43
|
10.47
|
10.51
|
10.55
|
||||||
|
NOCT
|
Irradiance 800W/m², ambient temperature 20℃, wind speed 1m/s, AM1.5G
|
|
|
|
|
|
||||||
|
*For NexTracker installations, Maximum Static Load, Front is 2000Pa while Maximum Static Load, Back is 2000Pa
|
|
|
|
|
|
|
||||||
|
Type
|
Model
|
Power
|
Size
|
Weight
|
No.of cells
|
|
Single-glass
|
JAM54S30
|
390W-415W
|
1722*1134*30mm
|
21.5kg
|
108(18*6)
|
|
|
JAM60S10
|
330W-350W
|
1689*996*35mm
|
18.7kg
|
120(20*6)
|
|
|
JAM60S20
|
365W-390W
|
1769*1052*35mm
|
20.5kg
|
120(6*20)
|
|
|
JAM72S10
|
400W-420W
|
2015*996*40mm
|
22.7kg
|
144(24*6)
|
|
|
JAM72S20
|
445W-470W
|
2112*1052*35mm
|
24.5kg
|
144(24*6)
|
|
|
JAM72S30
|
525W-550W
|
2279*1134*35mm
|
28.6kg
|
144(24*6)
|
|
Double-glass
|
JAM60D10
|
330W-350W
|
1711*1005*30mm
|
22kg
|
120(20*6)
|
|
|
JAM60D20
|
360W-385W
|
1774*1052*35mm
|
23kg
|
120(20*6)
|
|
|
JAM72D10
|
400W-420W
|
2037*1005*30mm
|
25kg
|
144(24*6)
|
|
|
JAM72D20
|
440W-465W
|
2117*1052*35mm
|
27.3kg
|
144(24*6)
|
|
|
JAM72D30
|
525W-550W
|
2285*1134*35mm
|
31.6kg
|
144(24*6)
|
