Quick Details
-
Brand Name:
-
JXSC
-
Dimension(L*W*H):
-
depends
-
Weight:
-
800 KG
-
Product name:
-
Rock Small Mobile Stone Hammer Crusher Machine for Sale
-
Processed Materials:
-
Limestone, gangue, gypsum, shale, slag, coke, coal
-
Test&Installation:
-
Senior Professional Engineers Assigned
-
Spare parts supply:
-
Anytime
-
speed:
-
980-1450rpm
-
Feeding size:
-
100-400mm
-
Discharge size:
-
0-15mm
-
After sale Service:
-
Overseas
-
The Machines classification:
-
Building Stone Production Line
-
Usage:
-
Mining Crushing
Quick Details
-
Application:
-
Cement, chemical, electric power, metallurgy
-
Capacity(t/h):
-
3-75
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
JXSC
-
Dimension(L*W*H):
-
depends
-
Weight:
-
800 KG
-
Product name:
-
Rock Small Mobile Stone Hammer Crusher Machine for Sale
-
Processed Materials:
-
Limestone, gangue, gypsum, shale, slag, coke, coal
-
Test&Installation:
-
Senior Professional Engineers Assigned
-
Spare parts supply:
-
Anytime
-
speed:
-
980-1450rpm
-
Feeding size:
-
100-400mm
-
Discharge size:
-
0-15mm
-
After sale Service:
-
Overseas
-
The Machines classification:
-
Building Stone Production Line
-
Usage:
-
Mining Crushing
Product Description

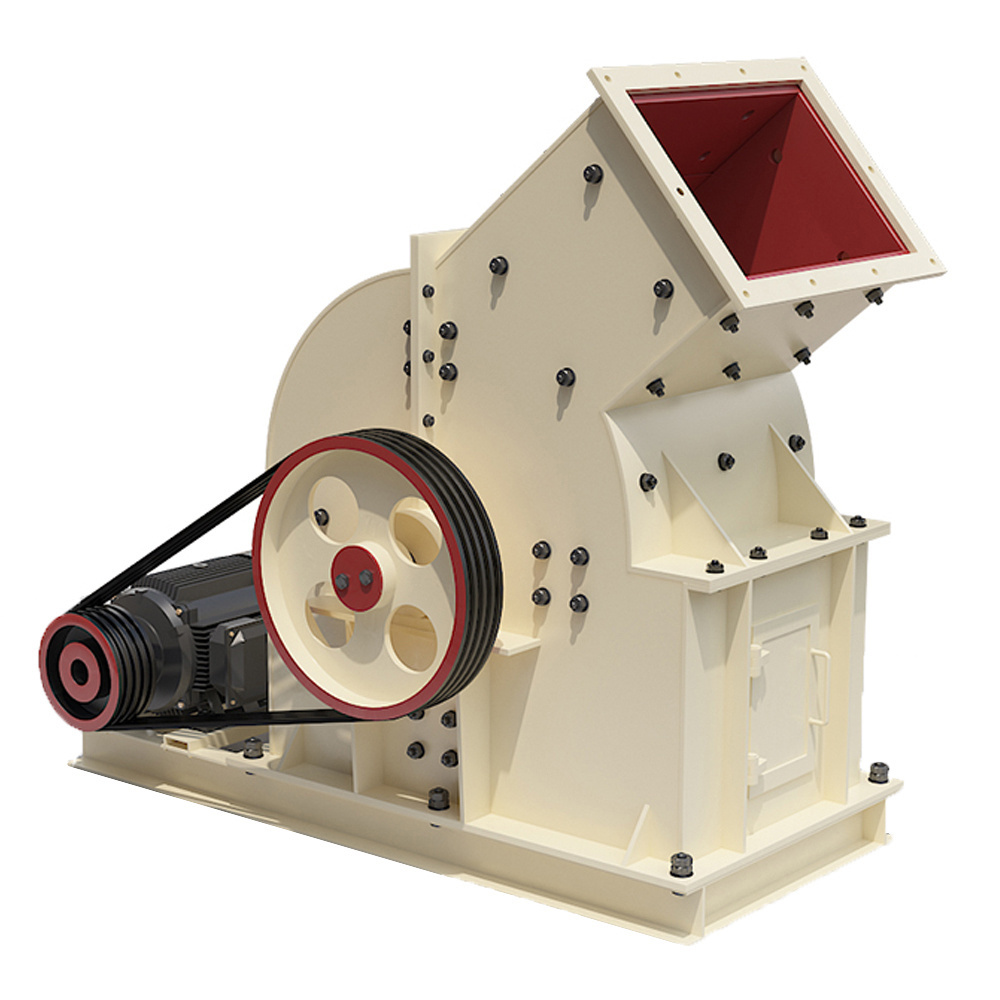

Mini Mobile Type Coal Limestone Salt Clay Brick Rock Benteng Small Mobile Stone Hammer Crusher Machine for Sale
Product introduction:
Hammer crusher is a crusher which can directly crush the materials with the big particle size to very fine particle. Hammer crusher is suitable for crushing medium hardness materials in cement, chemical industry, electric power, metallurgy and other industrial sectors, such as limestone, slag, coke, coal and other materials in the crushing and fine crushing operations.
Inform me the following 4 information:
Application field:
Mainly used in cement, chemical, electric power, metallurgy and other industrial sectors broken medium hardness materials. Suitable for crushing limestone, coal gangue, gypsum, shale and other kinds of medium and hard brittle materials with compressive strength up to 180MPa Coarse, medium and fine operation.
Principle of Operation:
Hammer crusher mainly relies on the impact energy to complete the crushing material operations. When hammer crusher is working, the motor drives the rotor high-speed rotation, the material evenly into the crusher cavity, high-speed rotary hammer impact, shear tearing material, to the material being broken, and at the same time, the material's own gravity makes material from the high-speed rotating hammer head to the body panel and sieve, sieve plate at the bottom of the rotor, crushing material is less than the screen hole size in graded through the sieve plate, resistance is greater than the screen hole size of materials on the sieve plate continues to hit by the hammer and the grinding, crushing to the discharging granularity until the final through the sieve plate outside.
Parameters of Hammer Crusher
|
Model
|
speed(rpm)
|
feeding particle size(mm)
|
the grain size(mm)
|
capacity(t/h)
|
weight(t)
|
power(kw)
|
|
PC-400*300
|
1450
|
<=200
|
10
|
3-10
|
0.8
|
11
|
|
PC-600*400
|
1000
|
<=220
|
15
|
5-25
|
1.5
|
22
|
|
PC-800*600
|
980
|
<=350
|
15
|
10-50
|
3.1
|
55
|
|
PC-800*800
|
980
|
<=350
|
15
|
10-60
|
3.5
|
75
|
|
PC-1000*800
|
1000
|
<=400
|
13
|
20-75
|
7.9
|
115
|
Performance characteristics:
1. Advanced design technology, strong structure and impact resistance.
2, Large feed size, high yield, good shape.
3. Super crushing, coarse, medium and fine crushing in one step.
4. Compared with the same period last year, the output increased by 30%, and the needle flake (powder) decreased by over 20%, more energy saving.
5, Hammer head, screen plate using chromium manganese alloy material, impact resistance, abrasion resistance is stronger.
2, Large feed size, high yield, good shape.
3. Super crushing, coarse, medium and fine crushing in one step.
4. Compared with the same period last year, the output increased by 30%, and the needle flake (powder) decreased by over 20%, more energy saving.
5, Hammer head, screen plate using chromium manganese alloy material, impact resistance, abrasion resistance is stronger.
Detailed Images
Successful case:
Packing&Shipping
Ways of Packing:
1.Coat with high quality paint;
2.Load container, spare parts in wooden case;
1.Coat with high quality paint;
2.Load container, spare parts in wooden case;
Transportation:
1. By sea or by road by train;
2. MSK/MSC/APL/EMC/WANHAI/KLINE
3. We will remind you before goods arrival.
1. By sea or by road by train;
2. MSK/MSC/APL/EMC/WANHAI/KLINE
3. We will remind you before goods arrival.
Company Introduction
Jiangxi JXSC Mining Machinery Co., Ltd.
was established in 1985, it's a professional machinery factory special in mining equipment research, manufacturing, sales and offers professional mine processing plant workflow design, plant installation, equipment maintenance, beneficiation processing technology guidance service as one of the metallurgical machinery equipment factory. Our products are exported to
Southeast Asia, South America, Europe,
Africa, Nigeria, Zambia, Zimbabwe, Congo, Uganda, Mozambique, Angola and many other coutries and regions.We are committed to creating high quality and efficient crushing and screening equipment,quality is our eternal pursuit and responsibility.
Our workshop
Our Customers
Exhibition:
We participate in various exhibitions frequently,such as Russian, Indonesia, Mongolia, South Africa, Ghana, Peru, Burma, Kazakstan, Tanzania, Morroco and Australia International Mining Exhibition and etc.
We participate in various exhibitions frequently,such as Russian, Indonesia, Mongolia, South Africa, Ghana, Peru, Burma, Kazakstan, Tanzania, Morroco and Australia International Mining Exhibition and etc.
Certificate
FAQ
1. Installation:
If the buyer ask the seller to send the technicians to guard to install the machines in the site, the buyer should take all the
charges for the technicians and pay the salary.
2. What about Warranty?
Hi, Ours Warranty is 1 year for whole machinery .
Spare parts. For wear parts, we guarantee the high quality parts for long-term supply for Crusher.
3. Payment Method:
By L/C, D/A, D/P, T/T, Western Union, MoneyGram, and so on.
4. If you want us recommend a suitable type and best offer for you ,please let us know as follows:
1).you only need one set of jaw crusher or a whole crushing line? (Include the feeder ,crusher, screen, conveyor and so on)
2).what is the max size of the stone (mm/inch)?
3).what is the output size you need?
5. what could you help me to do for the business?
Many thanks for your trust, we can provide you with proposal chart for complete production lines Crusher, spot inspection and operator training according to your demands and the conditions of applied spot, we can help you choose the right equipment, drilling rig, loader, trucks, excavators and so on.
If the buyer ask the seller to send the technicians to guard to install the machines in the site, the buyer should take all the
charges for the technicians and pay the salary.
2. What about Warranty?
Hi, Ours Warranty is 1 year for whole machinery .
Spare parts. For wear parts, we guarantee the high quality parts for long-term supply for Crusher.
3. Payment Method:
By L/C, D/A, D/P, T/T, Western Union, MoneyGram, and so on.
4. If you want us recommend a suitable type and best offer for you ,please let us know as follows:
1).you only need one set of jaw crusher or a whole crushing line? (Include the feeder ,crusher, screen, conveyor and so on)
2).what is the max size of the stone (mm/inch)?
3).what is the output size you need?
5. what could you help me to do for the business?
Many thanks for your trust, we can provide you with proposal chart for complete production lines Crusher, spot inspection and operator training according to your demands and the conditions of applied spot, we can help you choose the right equipment, drilling rig, loader, trucks, excavators and so on.
6. What is the delivery time?
According to the specific data provided by the customer,our customized crushing machine's delivery time is 30 days.
7.What is the nearest port?
Xiamen, Guangzhou, Shenzhen
8. What is the trade terms?
CIF,FOB,DDU ect is acceptable.
According to the specific data provided by the customer,our customized crushing machine's delivery time is 30 days.
7.What is the nearest port?
Xiamen, Guangzhou, Shenzhen
8. What is the trade terms?
CIF,FOB,DDU ect is acceptable.
