- Product Details
- {{item.text}}
Quick Details
-
Warranty:
-
1 year
-
Brand Name:
-
Deke
-
Model Number:
-
100ZJ-I-A39
-
Place of Origin:
-
Shandong, China
-
Horsepower:
-
150PS
-
Structure:
-
Other
-
Cable Length:
-
Copper wire
-
Outlet Size:
-
100mm
-
Power:
-
55kw
-
motor:
-
Diesel engine or motor
-
Name:
-

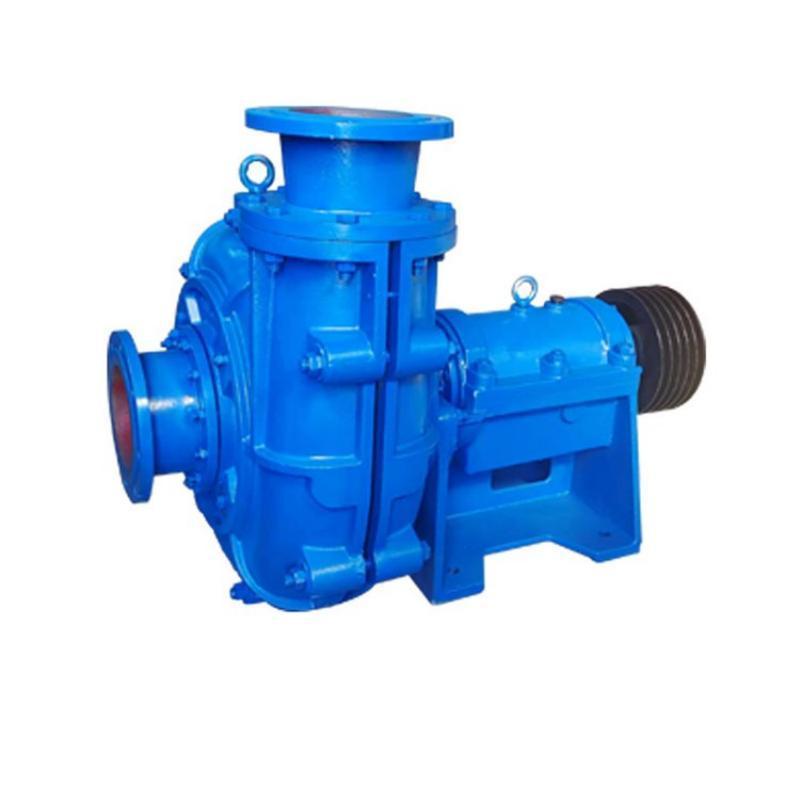

DAH Horizontal Slurry Pump
-
Color:
-
Can be customized
-
MOQ:
-
1 Set
-
Use:
-
multi-purpose
-
The material:
-
High chromium alloy
-
Capacity:
-
Up to 2880m3/hr(800 1/s)
-
Head:
-
Up to 65m (214 feet)
-
Speed:
-
Up to 1500rpm
-
size:
-
25mm to 300mm(1" up to 12'")
-
Temperature:
-
Max.110℃
Quick Details
-
Application:
-
dredging, mine, Smoke sediment
-
Pressure:
-
High Pressure
-
Voltage:
-
380V
-
Warranty:
-
1 year
-
Brand Name:
-
Deke
-
Model Number:
-
100ZJ-I-A39
-
Place of Origin:
-
Shandong, China
-
Horsepower:
-
150PS
-
Structure:
-
Other
-
Cable Length:
-
Copper wire
-
Outlet Size:
-
100mm
-
Power:
-
55kw
-
motor:
-
Diesel engine or motor
-
Name:
-
DAH Horizontal Slurry Pump
-
Color:
-
Can be customized
-
MOQ:
-
1 Set
-
Use:
-
multi-purpose
-
The material:
-
High chromium alloy
-
Capacity:
-
Up to 2880m3/hr(800 1/s)
-
Head:
-
Up to 65m (214 feet)
-
Speed:
-
Up to 1500rpm
-
size:
-
25mm to 300mm(1" up to 12'")
-
Temperature:
-
Max.110℃
Good Performance Polyurethane Slurry Pump Impeller Frame Plate Liner Industry Mining Ceramic Slurry Pump
Product Description
The DAH series Mineral Processing Heavy Duty Centrifugal Slurry Pump is designed for the continuous pumping of highly abrasive,high density slurries with minimal maintenance requirements.The DAH series slurry pump will maintain high efficienciesover the wear life of its components.Slurry pump refers to a machine that increases the energy of solid and liquid mixed medium by means of centrifugal force (rotationof the impeller of the pump), and converts the electric energy into the kinetic energy and potential energy of the medium. Mainly applicable to: mining, power plant, dredging, metallurgy, chemical, building materials and petroleum and other industries.
Specification
|
Usage:
Slurry, sand & Sewage
|
|
|
|
|
||||
|
Type
|
DAH Horizontal Slurry Pump
|
|
|
|
||||
|
Capacity
|
Up to 2880 m3/hr (800 1/S)
|
|
|
|
||||
|
Head
|
Up to 65 m ( 214 feet )
|
|
|
|
||||
|
Speed
|
Up to 1500 rpm
|
|
|
|
||||
|
Size
|
25mm to 300mm (1’’ up to 12’’)
|
|
|
|
||||
|
Temperature
|
Max: 110℃
|
|
|
|
||||
|
Drive
|
Diesel or Electric
|
|
|
|
||||
|
Shaft
|
4ocr
|
|
|
|
||||
|
Shaft Sleeve
|
3cr13
|
|
|
|
||||
|
Bearing Assembly
|
Timkin
|
|
|
|
||||
|
Cover Plate
|
Cast Iron
|
|
|
|
||||
|
Throat Bush
|
27% Chrome White lron or Rubber
|
|
|
|
||||
|
Liner
|
27% Chrome White lron
|
|
|
|
||||
|
Pump Casing
|
Cast iron
|
|
|
|
||||
|
lmpeller
|
27% Chrome White lron or Rubber
|
|
|
|
||||
|
Type
|
Max.power
|
Capacity
|
Head
|
speed
|
Max.Eff
|
NPSH
|
Impeller Dia
|
Max.particle size
|
|
|
(kw)
|
(m³/h)
|
(m)
|
(r/min)
|
(%)
|
(m)
|
(mm)
|
(mm)
|
|
DAH1.5-1
|
15
|
12-28
|
6-65
|
1200-3800
|
40
|
2-4
|
150
|
14
|
|
DAH2-1.5
|
15
|
32-72
|
6-58
|
1200-3200
|
45
|
3.5-8
|
185
|
19
|
|
DAH3-2
|
30
|
39-86
|
12-64
|
1300-2700
|
55
|
4-6
|
215
|
25
|
|
DAH4-3
|
60
|
86-198
|
9-52
|
1000-2200
|
71
|
4-5
|
245
|
28
|
|
DAH6-4
|
120
|
162-360
|
12-56
|
800-1500
|
68
|
5-8
|
365
|
44
|
|
DAH8-6
|
120
|
360-830
|
10-61
|
500-1140
|
72
|
2-9
|
510
|
63
|
|
DAH10-8
|
260
|
612-1368
|
11-61
|
400-850
|
71
|
4-10
|
685
|
76
|
|
DAH12-10
|
560
|
936-1980
|
7-68
|
400-750
|
82
|
1-5
|
760
|
86
|
|
DAH14-12
|
560
|
1260-2772
|
13-63
|
300-600
|
77
|
3-10
|
965
|
90
|
Driving method
Motor drive
Diesel engine drive
High precision machined parts
The work shop
About US
Deke Pump Co.,Ltd. is one over
30 years
experienced pump manufacturer (established at 1985) in mining and mineral, power plant,dredging and dredge, hydraulic, irrigation, pulp transfer, chemical, construction, sea water and oil & gas transfer etc.;Deke Pump Co.,Ltd. is the pump factory has its own pump selection & design, research and development team to assure provide you efficient, energy saving slurry pump, water pump, diesel water pump, chemical pump and irrigation pump in selection & design, use and maintenance program.
Our products include slurry pump, sewage pump, water pump, acid resistant or chemical pump, irrigation pumps, fire pumps and other products exported to over 90 countries all over the world. The application covers many fields, such as mining and mineral processing, dredger, tailings transportation, mining, steel, desulfurization pump, boiler feed water, construction, irrigation,water conservancy facilities, sewage treatment, drainage and water supply.
Customer and exhibitions
The workshop will
Certificates
FAQ
1. What information is needed to offer a split casing pump?
Liquid:___
Capacity:___ m3/hr
Head: ___ m
PH:___
Specific of gravity:___
Voltage:___V, Frequency:___hz
2. Can I use hydraulic to drive the pump?
Yes, the pump can be driven by hydraulic power pack and excavator.
If excavator, please advise the model.
3. What is the maximum submerged depth of the pump?
30m.
4. What is the solids size that can be pumped?
It depends on the pump model. The max. solids size is 60mm.
5. What is the delivery time?
10-15 days.
