Quick Details
-
Length:
-
Standard
-
Application:
-
heating
-
C Content (%):
-
≤0.03%
-
Si Content (%):
-
≤1.0%
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
DZX
-
Model Number:
-
ss316L
-
Product name:
-
Stainless Seel Wire
-
Material:
-
304/316 Stainless Steel
-
Surface:
-
Bright Finish
-
Type:
-
Tiny
-
Usage:
-
Industry Machine
-
Wire Gauge:
-
0.05-20mm
-
PAYMENT TERM:
-
30% Deposit+70% Balance
-
Certification:
-
ISO9001
Quick Details
-
Grade:
-
304 Series
-
Tolerance:
-
±1%
-
Steel Grade:
-
304, 316, 316L
-
Length:
-
Standard
-
Application:
-
heating
-
C Content (%):
-
≤0.03%
-
Si Content (%):
-
≤1.0%
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
DZX
-
Model Number:
-
ss316L
-
Product name:
-
Stainless Seel Wire
-
Material:
-
304/316 Stainless Steel
-
Surface:
-
Bright Finish
-
Type:
-
Tiny
-
Usage:
-
Industry Machine
-
Wire Gauge:
-
0.05-20mm
-
PAYMENT TERM:
-
30% Deposit+70% Balance
-
Certification:
-
ISO9001
Products Description

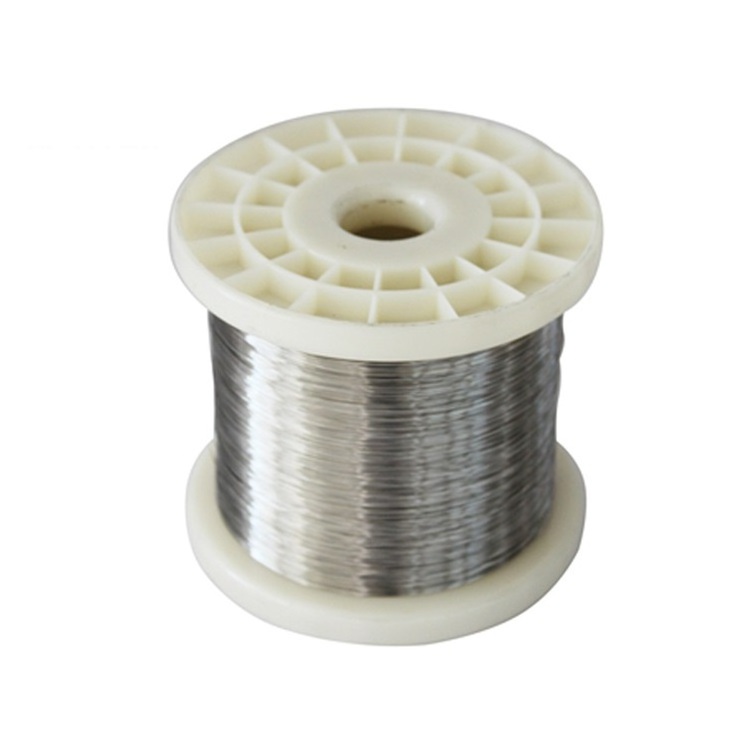

stainless steel wire 316 316L
Specifications of Stainless Steel Wire:
1. Material : 201,304,308,308L,309,309L,310S,316,321,347,430,etc.
2. Diameter Range: Φ0.03 ~Φ2.0mm
1. Material : 201,304,308,308L,309,309L,310S,316,321,347,430,etc.
2. Diameter Range: Φ0.03 ~Φ2.0mm
3. Standard: ASTM/JIS/GB
4.
Variety:
Soft wire,hard wire,spring wire,electrode wire,cold heading wire,electrolytic wire,welding wire etc
5. Tensile strength: Hard Bright:1800~2300N/mm2
Mid hard bright: 1200N/mm2
Fog Soft:500~800N/mm2
6. Craft: Cold Drawn and Annealed
5. Tensile strength: Hard Bright:1800~2300N/mm2
Mid hard bright: 1200N/mm2
Fog Soft:500~800N/mm2
6. Craft: Cold Drawn and Annealed
7.
Applications:
wire-drawing, weaving of wire mesh, soft pipe, bean of cabinet, steel wire, beekeeping, etc.
Specification
|
AISI Chemical composition table
|
|
|
|
|
|
|
|
|
|
|||||||||
|
|
C
|
Si
|
Mn
|
P
|
S
|
Ni
|
Cr
|
Mo
|
Cu
|
|||||||||
|
304
|
<0.08
|
<1.0
|
<2.0
|
<0.035
|
<0.03
|
8-10
|
17-19
|
-
|
-
|
|||||||||
|
304L
|
<0.03
|
<1.0
|
<2.0
|
<0.04
|
<0.03
|
9-13
|
18-20
|
-
|
-
|
|||||||||
|
304HC
|
<0.06
|
<1.0
|
1.2-1.8
|
<0.035
|
<0.03
|
8-11
|
17-19
|
-
|
2-3
|
|||||||||
|
316
|
<0.08
|
<1.0
|
<2.0
|
<0.04
|
<0.03
|
10-14
|
16-18
|
2-3
|
-
|
|||||||||
|
316L
|
<0.03
|
<1.0
|
<2.0
|
<0.04
|
<0.03
|
12-15
|
16-18
|
2-3
|
-
|
|||||||||
|
310S
|
<0.08
|
<1.5
|
<2.0
|
<0.04
|
<0.03
|
19-22
|
24-26
|
-
|
-
|
|||||||||
|
321
|
<0.08
|
<1.0
|
<2.0
|
<0.045
|
<0.03
|
9-13
|
17-19
|
-
|
-
|
|||||||||
|
301
|
<015
|
<1.0
|
<2.0
|
<0.04
|
<0.03
|
>7
|
16-18
|
-
|
-
|
|||||||||
|
302
|
<0.15
|
<1.0
|
<2.0
|
<0.04
|
<0.03
|
>8
|
17-
|
-
|
-
|
|||||||||
|
Stainless steel wire size tolerance
|
|
|
||
|
Wire diameter (mm)
|
Tolerance (mm)
|
Maximum deviation (mm)
|
||
|
0.-0.299
|
±0.005
|
0.005
|
||
|
0.300-0.310
|
±0.006
|
0.006
|
||
|
0.320-0.499
|
±0.006
|
0.006
|
||
|
0.500-0.599
|
±0.006
|
0.006
|
||
|
0.600-0.799
|
±0.008
|
0.008
|
||
|
0.800-0.999
|
±0.008
|
0.008
|
||
|
1.00-1.20
|
±0.009
|
0.009
|
||
|
1.20-1.40
|
±0.009
|
0.009
|
||
|
1.40-1.60
|
±0.010
|
0.010
|
||
|
1.60-1.80
|
±0.010
|
0.010
|
||
|
1.80-2.00
|
±0.010
|
0.010
|
||
|
2.00-2.50
|
±0.012
|
0.012
|
||
|
2.50-3.00
|
±0.015
|
0.015
|
||
|
3.00-4.00
|
±0.020
|
0.020
|
||
|
4.00-5.00
|
±0.020
|
0.020
|
||
Widely Use
