Quick Details
-
Input:
-
Ethernet port(RJ45) *16
-
Output:
-
HDMI or SDI output
-
Video encoding:
-
H.264&H.265
-
Program streaming:
-
HTTP, UDP/RTP, RTSP, RTMP, RTMPS, HLS, FLV
-
Code Rate:
-
CBR/VBR
-
Dimension(W*L*H):
-
483*300*130mm
-
Certification:
-
ce
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Orivision
-
Model Number:
-
3U Rack
-
Input:
-
Ethernet port(RJ45) *16
-
Output:
-
HDMI or SDI output
-
Video encoding:
-
H.264&H.265
-
Program streaming:
-
HTTP, UDP/RTP, RTSP, RTMP, RTMPS, HLS, FLV
-
Code Rate:
-
CBR/VBR
-
Dimension(W*L*H):
-
483*300*130mm
-
Certification:
-
ce
Product Description
Support multiple card assembiles

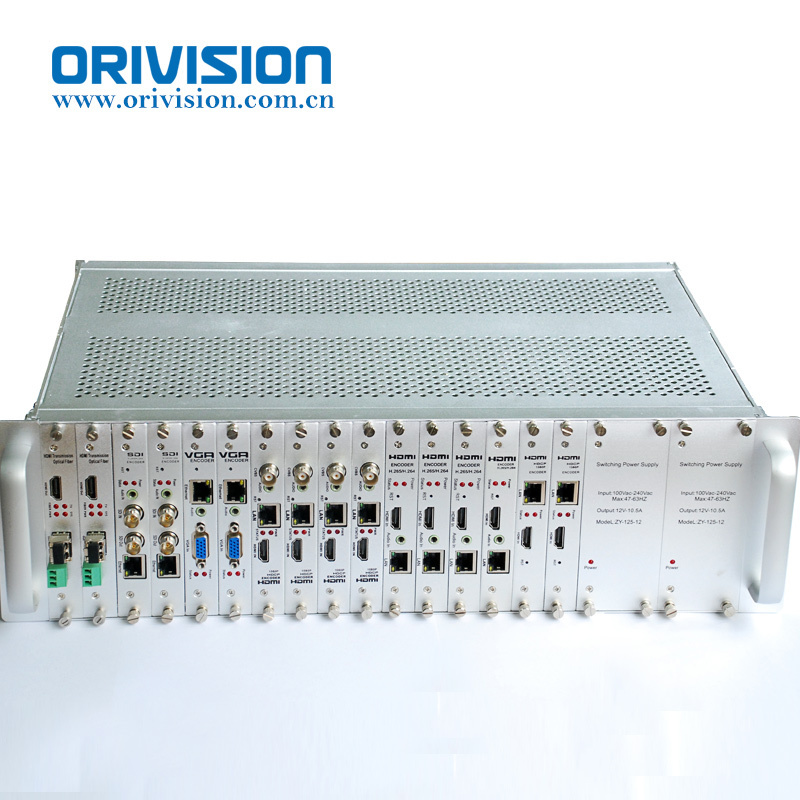

3U Rack-mounted Encoder
The 16 channels HDMI/SDI/VGA video encoder is our professional HD audio and video encoding device with powerful functionality. It is equipped with 16 channels HDMI/SDI/VGA input supporting H.265&H.264 /AVC high profile /main profile /baseline profile coding formatand two video streamings output each channel, which is streaming by HTTP, RTSP, UDP /RTP, RTMP, RTMPS,ONVIF, HLS. Its high integration and cost-effective design make this device widely used in variety of field such as CATV digital head-end, hotel IPTV system, live streaming broadcast, streaming media server etc. Also the encoder works with online live broadcast platform, such as YouTube, Ustream, Twitter, Facebook, etc.
The 3U rack encoder support from 2 channels to 16 channels, and support HDMI/SDI/VGA interfaces, so if you need any channel from 2 channels to 16 channels, please contact us.
Dual-industrial Cooling Fan
Large area heat sink
Support 24 hours of work
↓
↓
↓
↓
↓
↓
Support Main-stream and second -stream
Can push live broadcast to 2 live platforms at the same time,
Webcast is more stable,safe and reliable
More applicable situations
Product Parameters
|
Video
|
|
|
|
Input interface
|
16×HDMI/CVBS/SDI
|
|
|
Support resolution
|
1080P\1080i\720P ,1600x1200\1400x1050\1440x900\1280x1024\
1280x960\1280x800\1024x768\800x600 etc.
|
|
|
Frame rate
|
30/60 frame
|
|
|
Output interface
|
16×Ethernet port(RJ45)
|
|
|
Video encoding
|
H.265 Main Profile
H.264 Baseline Profile
H.264 Main Profile
H.264 High Profile
|
|
|
Code Rate control
|
16kbps- 12Mbps
|
|
|
Code Rate
|
CBR/VBR
|
|
|
Audio
|
|
|
|
Input interface
|
16×External audio
|
|
|
Audio encoding
|
ACC, MP3
|
|
|
Sampling rate
|
Auto
|
|
|
Bit-rate Option
|
32k,44.1K,48K,64K,96K,128K,160K,192K,384K
|
|
|
Sampling Accuracy
|
24 Bit
|
|
|
Audio Data-rate
|
64Kb/s to 384Kb/s
|
|
|
Network
|
|
|
|
RJ45
|
10M/1000M Ethernet port
|
|
|
Program streaming
|
HTTP, RTSP, RTMP, RTMPS,HLS, FLV,ONVIF(UDP/RTP)
|
|
|
Control Panel
|
Web panel ( Language is English), remote upgrade
|
|
|
Firmware Update
|
Enable by uploading files to the dashboard
|
|
|
General
|
|
|
|
Dimension(W*L*H)
|
483*300*130mm
|
|
|
Gross Weight
|
8kg
|
|
|
Temperature
|
0 ~ 45℃(for working),-20~60℃(for storing)
|
|
|
Humidity
|
<90%, non-condensing
|
|
|
Input Voltage
|
AC 110V~220V
|
|
|
Power Consumption
|
5W/Channel
|
|
