Quick Details
-
Power:
-
33.7 kw/2100 rpm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
RHINOCEROS
-
Maximum Digging Height:
-
5220mm
-
Maximum Digging Depth:
-
3772mm
-
Machine Weight:
-
8770 kg
-
Max Digging Radius:
-
6880mm
-
Rated Speed:
-
25km/h/2.3km/h
-
ENGINE:
-
JapanYanmar 4TNV98L-BNBKC
-
Engine power/rpm:
-
46.3kw/2200rpm
-
Wheel travelling speed:
-
21 km/h
-
Track travelling speed:
-
3km/h
-
Max. grade ability:
-
30°
-
Hydraulic system:
-
Rexroth
-
Overall dimension:
-
6570x2120x2980MM
-
Certification:
-
CE ISO
Quick Details
-
Operating Weight:
-
9 ton
-
Bucket capacity:
-
0.3CBM
-
Engine Brand:
-
YANMAR
-
Power:
-
33.7 kw/2100 rpm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
RHINOCEROS
-
Maximum Digging Height:
-
5220mm
-
Maximum Digging Depth:
-
3772mm
-
Machine Weight:
-
8770 kg
-
Max Digging Radius:
-
6880mm
-
Rated Speed:
-
25km/h/2.3km/h
-
ENGINE:
-
JapanYanmar 4TNV98L-BNBKC
-
Engine power/rpm:
-
46.3kw/2200rpm
-
Wheel travelling speed:
-
21 km/h
-
Track travelling speed:
-
3km/h
-
Max. grade ability:
-
30°
-
Hydraulic system:
-
Rexroth
-
Overall dimension:
-
6570x2120x2980MM
-
Certification:
-
CE ISO
Wheel-crawler Excavator X9 Amphibious type with patent design and Japan engine
Wheel-Crawler Excavator X9, with CE ISO certificates. New design, patent products, running on the wheel, working on the crawler, wheel and crawler is easy to change each other, one city transport, no need the truck again, very convenient, with good market now.
Weight: 9ton, GERMANY REXROTH pump, USA EATON swing motor,
Traveling motor, South Korea SUNJIN valve/ Joystick, A/C cab for choose, Radio, USB, 0.32m3 bucket
Overall dimension: 6570x2120x2982 mm, Running on wheels, Working on track.
2. Specification:
| (Model) | X9 |
| (Brand) | RHINOCEROS |
| (Operating Weight) | 9 t |
| (Overall dimension) | 6570x2120x2982 mm |
| (Bucket capacity) | 0.32 |
| (Engine type) | YANMAR(4TNV98) |
| (Rated power/speed) | 33.7KW |
| (No. of cylinders/type) | 4 cylinders in line |
| (Bore and stroke) | 94*105 |
| (Voltage of start motor) | 12V |
| (Starting type) | ELECTRIC |
| (Hydraulic main pump) | GERMANY REXROTH |
| (Hydraulic system pressure) | 25MPa |
| (Hydraulic system flow) | 132L/Min |
| (Valve) | GERMANY REXROTH |
| (Swing motor) | HENGLI |
| (Max swing speed) | 12r/min |
| (Travel motor) | HENGLI |
| (Max travel speed) | 30km/h |
| (Axle and Transmission) | LIUFENG |
| (Gear) | Forward 1 2 3 4 ; Reverse 1 2 |
| (Bucket Digging Force) | 56Kn |
| (Arm Digging Force) | 36Kn |
| (Grade ability) | 35 degree |
| (Arm length ) | 2000mm |
| (Drive Method 2WD/4WD) | Wheel (Mechanical 2WD) / Crawler (Hydraulic) |
| (light) | All LED lights |
| (Max Digging Height) | 7130mm |
| (Max Dumping Height) | 5220mm |
| (Max Digging Depth) | 3772mm |
| (Max Digging Radius) | 6880mm |
| (Standard machine with A/C) | YES |
| (Packing way) | one 40ft load two units |
| (Passed certificates) | CE ISO |
| (Can add accessories) | hammer, auger, quick hitch, grader, tilt bucket, narrow bucket, |
2, Engine & Hydraulic System

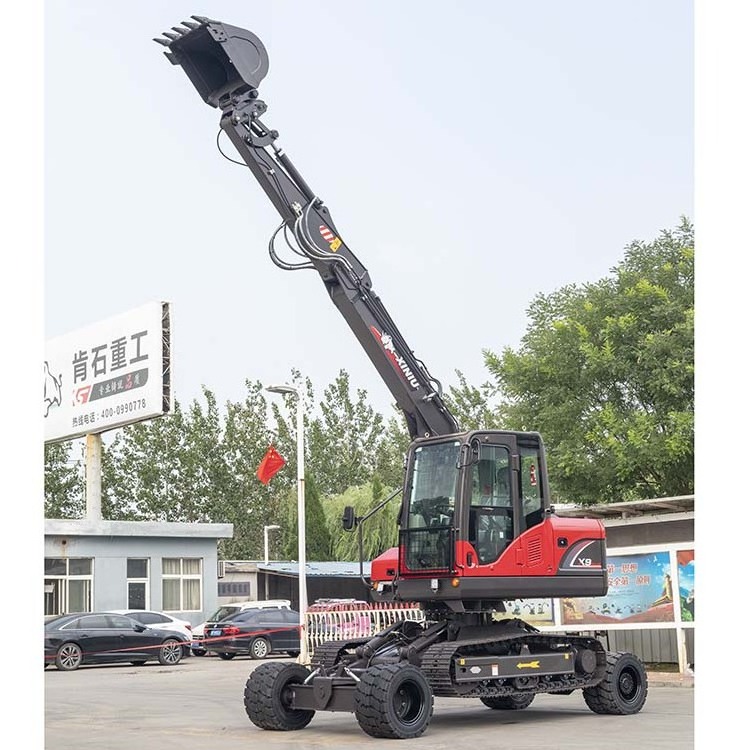

3. Wheel-Crawler Excavator X9 Photos:
4, Details Photo
5. Packing:
5 Certificate:
6. Production range:
We are power engineering machinery manufacturer in China, we produce the Excavator, Backhoe loader, Concrete pump truck
We produce many parts by ourselves, so we can low the cost and make the high stable quality, choose our company as your partner is your better choice now, we have the power and experience to make both of us good profit.
