Quick Details
-
Model Number:
-
CHL-AP32A/AP20A/AP20B
-
Place of Origin:
-
Guangdong, China
-
Name:
-
Automatic Nucleic Acid Purification System
-
Process volume:
-
50~1000ul
-
Collection efficiency:
-
>95%
-
Purification accuracy:
-
100 copy sample positive rate>95%
-
Stability:
-
CV<5%
-
Size:
-
400x520x450mm 28Kg
Quick Details
-
Warranty:
-
2 years
-
After-sale Service:
-
Online technical support
-
Brand Name:
-
ICLEAR
-
Model Number:
-
CHL-AP32A/AP20A/AP20B
-
Place of Origin:
-
Guangdong, China
-
Name:
-
Automatic Nucleic Acid Purification System
-
Process volume:
-
50~1000ul
-
Collection efficiency:
-
>95%
-
Purification accuracy:
-
100 copy sample positive rate>95%
-
Stability:
-
CV<5%
-
Size:
-
400x520x450mm 28Kg

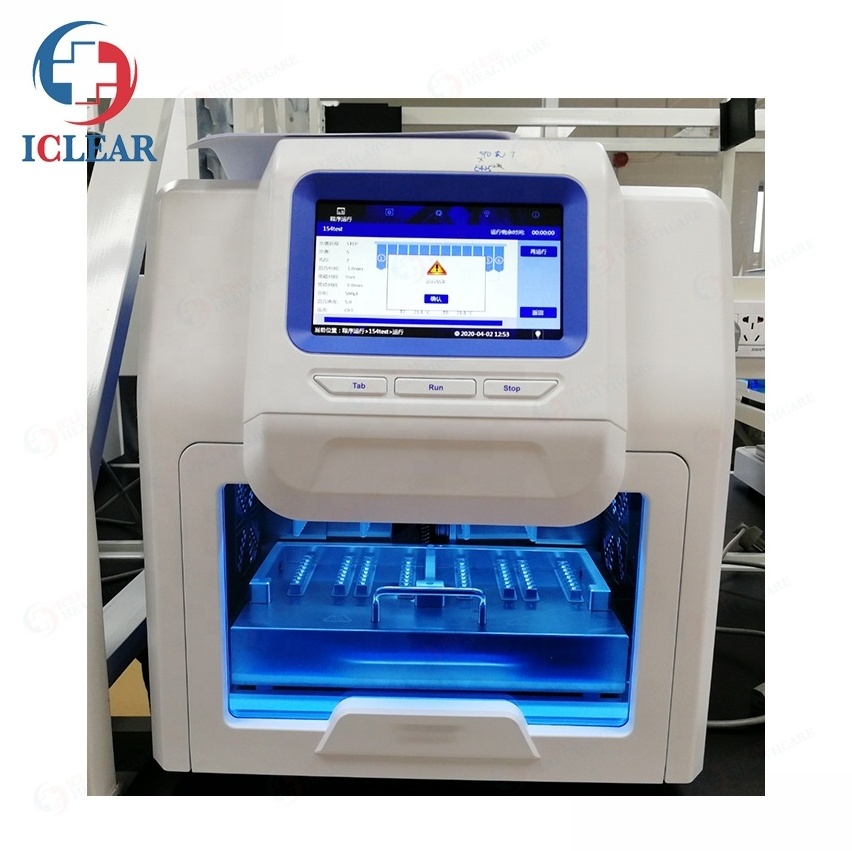

32 Samples DNA Extraction Automatic Nucleic Acid Purification System
CHL-AP32A/AP20A/AP20B
AP32A/AP20A/AP20B is a benchtop device for DNA and RNA purification by using magnetic separation technology from different starting materials, such as blood, cultured cells or bacteria, tissues, cell-free body fluids and plant samples. The device is capable of using magnetic rods to transfer particles through the various purification phases of binding, mixing, washing, and elution, offering a solution with minimized hands-on time. DNA and RNA purification is of high quality and high molecular weight.
Magnetic Bead Extraction:
Process samples up to 1ml, 3ml or 5ml
The AP series can process up to 32 samples per run when the working volume is up to 1ml. With the ability to change the instrument configuration, the customers can elevate the sample processing volume up to 3ml or 5ml to obtain higher yields of the purified product, and the throughput up to 20 samples.
1. It is easy to use with a 7-inch touch screen
2. Very simple operation (easy to install, operate, maintain) without a computer
3. Very fast extraction protocol, 15~40 minutes/cycle depending on sample type and method
4. Universal built-in program for easy using
5. High purity and excellent yield of nucleic acid
6. UV lamp to avoid cross-contamination
7. 3 shortcut keys to make for easy running, stopping the magnetic beads program
8. Open system can optimize purification proposal according to various magnetic beads kits
9. Drawer design to prevent possible injuries
10. With special plastic consumables to avoid cross-contamination
11. Improves workflow, and allows staff to perform other value-added tasks
12. Ensures impurities are removed; improved sample quality leads to better downstream analyses
13. Capable of extracting 1~20 samples or 1~32samples per run and process samples up to 1ml, 3ml and 5ml
14. Alarm for indicating the completion of the purification
15. Pause function for emergent stop
| Throughput | 1~32 | 1~20 | 1~20 |
| Process volume | 50~1000ul | 50~5000ul | 50~3000ul |
| Collection efficiency | >95% | >95% | >95% |
| Magnetic rod number | 32 | 20 | 20 |
| Purification accuracy |
100 copy sample positive rate>95% |
100 copy sample positive rate>95% |
100 copy sample positive rate>95% |
| Stability | CV<5% | CV<5% | CV<5% |
| Plate types | 96 Deepwell plate | 5ml tube strip | 3ml tube strip |
| Heating for lysis tube | ~120°C | ~120°C | ~120°C |
| Heating for elution tube | ~120°C | ~120°C | ~120°C |
| Operation | 7-inch color touch screen | 7-inch color touch screen | 7-inch color touch screen |
| Extraction steps |
Lysis, Sample binding,
Washing and elution |
Lysis, Sample binding,
Washing and elution |
Lysis, Sample binding,
Washing and elution |
| Storage Capacity | more than 100 programs | more than 100 programs | more than 100 programs |
| Protocol Management |
Create, edit, delete, protocol mode |
Create, edit, delete, protocol mode |
Create, edit, delete, protocol mode |
| Pollution Control | UV light | UV light | UV light |
| Lighting | Yes | Yes | Yes |
| Extension interface | 4 standard USB port, built-in SD card | 4 standard USB port, built-in SD card | 4 standard USB port, built-in SD card |
| Exhaust | Fan | Fan | Fan |
| Power Supply | 450W | 450W | 450W |
| Dimensions | 400×520×450mm | 400×520×450mm | 400×520×450mm |
| Weight | 28Kg | 28Kg | 28Kg |
|
