Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
OCEAN
-
Voltage:
-
220V customized
-
Dimension(L*W*H):
-
customized
-
Weight (KG):
-
980 KG
-
Production capacity (kg/h):
-
30-200
-
Feed size(mm):
-
<10
-
Discharge particle size(mesh):
-
80-300
-
Total power (kw):
-
13.5
-
Main speed (r/min):
-
~6000
-
Overall Dimension(mm):
-
4200*1200*2700
-
Weight (kg):
-
980
-
Core Component Warranty Period:
-
1 Year
-
Video Factory Inspection:
-
Provided
-
Type of marketing:
-
Provided
Quick Details
-
Output (kg/h):
-
30 - 1000 kg/h
-
Feeding Size (mm):
-
1 - 15 mm
-
Power (kW):
-
13.5
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
OCEAN
-
Voltage:
-
220V customized
-
Dimension(L*W*H):
-
customized
-
Weight (KG):
-
980 KG
-
Production capacity (kg/h):
-
30-200
-
Feed size(mm):
-
<10
-
Discharge particle size(mesh):
-
80-300
-
Total power (kw):
-
13.5
-
Main speed (r/min):
-
~6000
-
Overall Dimension(mm):
-
4200*1200*2700
-
Weight (kg):
-
980
-
Core Component Warranty Period:
-
1 Year
-
Video Factory Inspection:
-
Provided
-
Type of marketing:
-
Provided
Product Description
Introduction

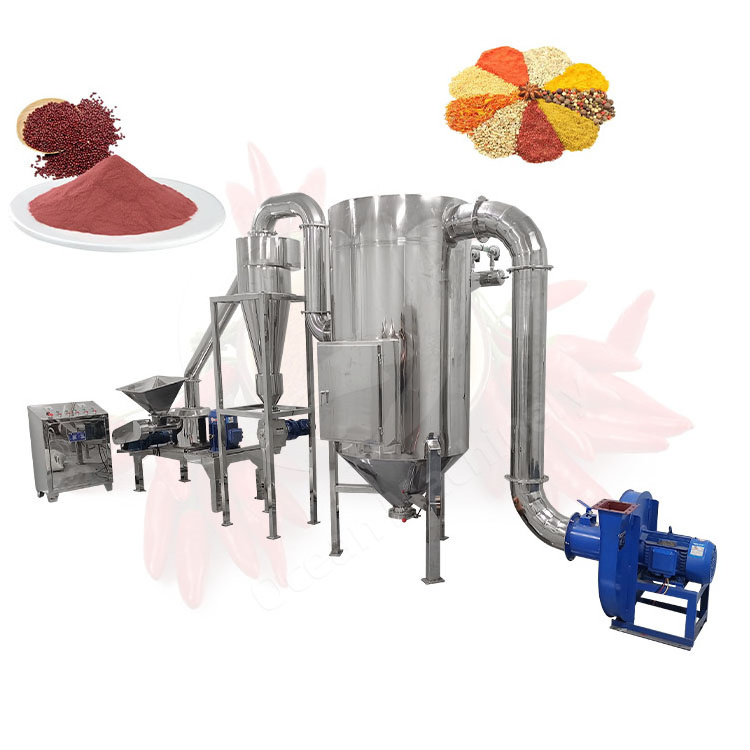

This ultra-fine pulverizing unit is mainly suitable for crushing fineness in the 80-400 mesh, crushing fineness can be adjusted at will. The pulverizing unit mainly consists of the host, auxiliary machines, electronic control box consists of three parts, compact design, reasonable structure, is a wind-selective, no screen. Ultra-micro-grinding unit of the entire machine are manufactured from high-quality stainless steel production. The machine is equipped with a grading mechanism, which can make the crushing and grading completed at once. Negative pressure conveying the heat generated in the cavity during the crushing operation is constantly discharged, so it is also adapted to the crushing of heat-sensitive materials.
Application
This ultra-fine pulverizing unit can deal with the pulverizing and grading of many kinds of materials such as chemicals, food, cosmetics, dyestuffs, resins, shells and so on, and the machine has reached the international requirements. It can play a good crushing effect on various materials such as rice, sugar, all kinds of beans, sedum wood, pepper, pepper, coffee beans, cocoa beans, fennel, anise, cinnamon, cumin, cardamom, thyme and so on.
Working Principle
Material from the material door through the screw conveyor into the crushing chamber, by the high-speed rotating blade shear crushing, through the negative pressure wind transport method to transport the material into the cyclone separator, bag dust collector, discharged material dust from the vacuum box through the bag filtration and recycling, the production process, no dust flying, and can improve the utilisation rate of the material, reduce the cost of the enterprise.
Product Details
Parameters
|
Model
|
OCEAN-WFJ-15
|
OCEAN-WFJ-20
|
OCEAN-WFJ-30
|
OCEAN-WFJ-60
|
|
Production capacity (kg/h)
|
30-200
|
50-300
|
80-500
|
150-1000
|
|
Feed size(mm)
|
30-200
|
<12
|
<15
|
<15
|
|
Discharge particle size(mesh)
|
80-300
|
80-300
|
80-300
|
80-300
|
|
Total power (kw)
|
13.5
|
17.5
|
46
|
81.5
|
|
Main speed (r/min)
|
~6000
|
~4800
|
~3800
|
~2800
|
|
Overall Dimension(mm)
|
4200*1200*2700
|
4700*1250*2900
|
6640*1300*3960
|
7500*2300*4530
|
|
Weight (kg)
|
980
|
1300
|
1500
|
32009
|
Product Photograph
