3/8 inch DIN 2SN/SAE R2 High Pressure Hydraulic Rubber Hose

3/8 inch DIN 2SN/SAE R2 High Pressure Hydraulic Rubber Hose

FOB Reference Price: Get Latest Price

≥2000 Meters

US $0.75

≥20000 Meters

US $0.7

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Color Option:: Black, Blue, Grey, White

Length:: 20m 40m 50m 100m

Tube:: Hydraulic Oil Resistant Special Synthetic Rubber

Reinforcement:: High Tensile Steel Wire Braided

Cover:: Oil, Abrasion and Weather Resistant Synthetic Rubber

Certification:: ISO9001:2008

Standard:: DIN 20022 EN 853

Surface:: Wrapped or Smooth

Size:: 3/16" - 4"

Origin Place:: Shandong, China

Quick Details

Place of Origin:: Shandong, China

Brand Name:: RISING

Model Number:: DIN 2SN

Color Option:: Black, Blue, Grey, White

Length:: 20m 40m 50m 100m

Tube:: Hydraulic Oil Resistant Special Synthetic Rubber

Reinforcement:: High Tensile Steel Wire Braided

Cover:: Oil, Abrasion and Weather Resistant Synthetic Rubber

Certification:: ISO9001:2008

Standard:: DIN 20022 EN 853

Surface:: Wrapped or Smooth

Size:: 3/16" - 4"

Origin Place:: Shandong, China

Product Description

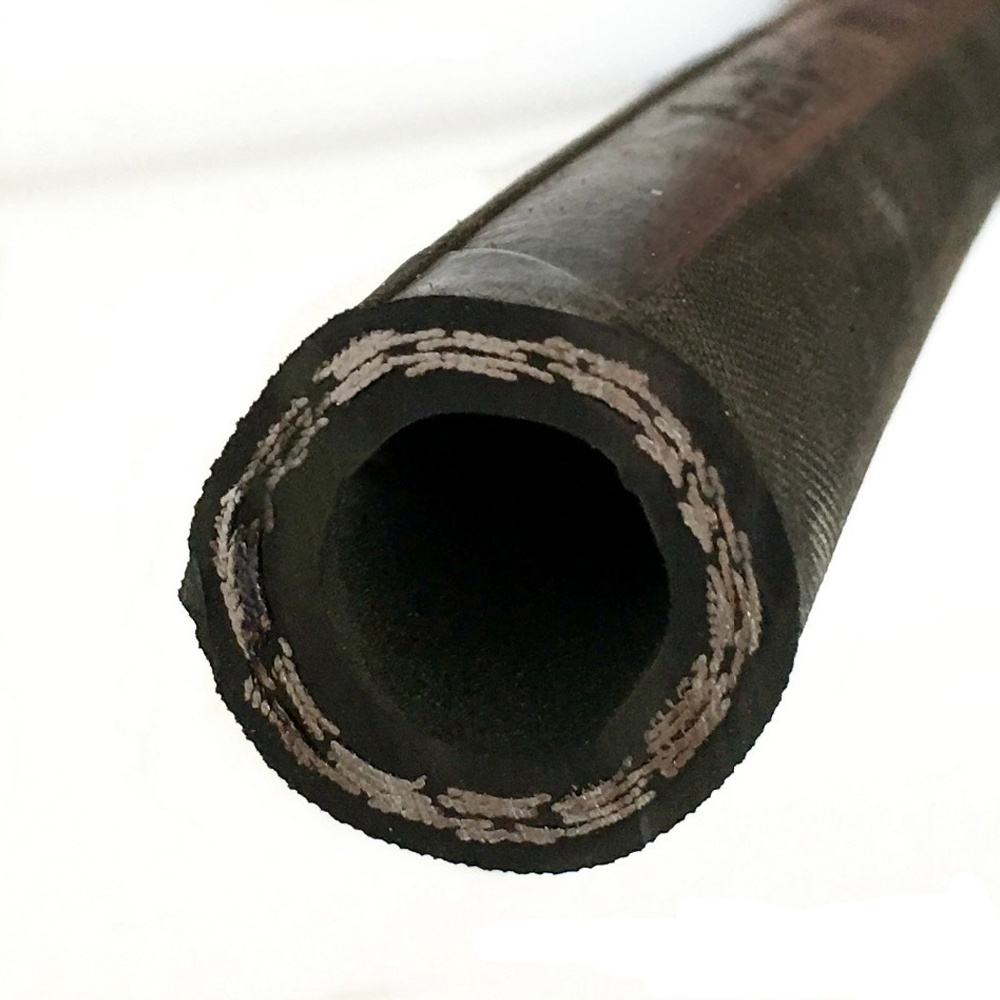

3/8 inch DIN 2SN/SAE R2 High Pressure Hydraulic Rubber Hose

Complete Range of Size from 3/16" to 4"
Various Color: Black, Red, Blue, Yellow, Gray
Different Surface: Smooth or Wrapped
Different Marking: Printing or Engraved

Tube: Oil resistant synthetic rubber
Cover: Abrasion and weather resistant synthetic rubber
Temperature range: -40 degree centigrade To +100 degree centigrade

This Steel Wire Hose is mainly intended for diverse applications in the fields of forestry, agriculture, construction and others. It is integrated with a bend radius capability which allows an intuitive mounting and routing. This also enables a longer hose life in various curving applications and some of the bent tube fitting needs.

It is enclosed with a black and oil resistant cover which is also integrated with a synthetic rubber. Its cover also comes with a color-optional line of marking. Its tube is black in color and is built with an oil-resistant tube material which enables high pressure and high temperature functionality.

Size (Inch)	Inside Diameter(mm)			Reinforcement(mm)		Outside Diameter(mm)			Working Pressure		Burst Pressure		Bend Radius
Size (Inch)	Nom	Min	Max	Min	Max	Nom	Min	Max	(Bar)	(Psi)	(Bar)	(Psi)	(mm)
3/16"	4.8	4.6	5.4	10.6	11.6	13.5	12.7	14	415	6000	1660	24000	90
1/4"	6.4	6.2	7	12.1	13.3	15	14.3	16	400	5800	1600	23200	100
5/16"	7.9	7.7	8.5	13.7	14.9	16.7	15.9	17	350	5100	1400	20400	115
3/8"	9.5	9.3	10.1	16.1	17.3	18.8	18.3	20	330	4800	1320	19200	130
1/2"	12.7	12.3	13.5	19	20.6	21.8	21.4	23	275	4000	1100	16000	180
5/8"	15.9	15.5	16.7	22.2	23.8	24.8	24.6	26	250	3650	1000	14600	200
3/4"	19	18.6	19.8	26.2	27.8	28.9	28.5	30	215	3100	860	12400	240
1"	25.4	25	26.4	34.1	35.7	37.5	37.3	39	165	2400	660	9600	300
1-1/4"	31.8	31.4	33	43.3	45.7	47.3	47.1	50	125	1800	500	7200	420
1-1/2"	38.1	37.7	39.3	49.6	52	53.5	53.3	56	90	1300	360	5200	500
2"	50.8	50.4	52	62.3	64.7	66.8	66	69	80	1150	320	4600	630

FAQ ( Frequently Asked Question )

1. Is sample available? Shall I pay for sample or delivery?

Free samples and free delivery.

2. How long will I get my order?

General production time for 1x20 feet container is 10-15 days, for 1x40 feet container 20-25 days.

3. How will my order be packed?

All hose is packed by 2 plies of PVC film, inner is tranparent, outer is color and thick one. (Color can be ordered as customer like). Special packing like Reel and Pallet also available. Fitting is packed by 3 plies, carton, PVC bag and then pallet.

4. What should I do if I find quality problem in using?

12 months Quality Garentee for all of our products. We offer replacement for any defective caused by non-human reasons.

5. Is it possible to visit your factory?

We warmly welcome you to visit our factory at any of your convenient time.
