Quick Details
-
Market Segement:
-
Mining transportation
-
Engine Capacity:
-
4 - 6L
-
Gross Vehicle Weight:
-
/
-
Drive Wheel:
-
4X2
-
After-sales Service Provided:
-
Video technical support, Online support
-
Brand Name:
-
XCM-G
-
Place of Origin:
-
Jiangsu, China
-
Engine Brand:
-
optional
-
Cylinders:
-
/
-
Gear Box Brand:
-
/
-
Forward Shift Number:
-
/
-
Dimensions (L x W x H) (mm):
-
/
-
Cargo Tank Dimension:
-
/
Quick Details
-
Condition:
-
New
-
Horsepower:
-
/
-
Emission Standard:
-
/
-
Market Segement:
-
Mining transportation
-
Engine Capacity:
-
4 - 6L
-
Gross Vehicle Weight:
-
/
-
Drive Wheel:
-
4X2
-
After-sales Service Provided:
-
Video technical support, Online support
-
Brand Name:
-
XCM-G
-
Place of Origin:
-
Jiangsu, China
-
Engine Brand:
-
optional
-
Cylinders:
-
/
-
Gear Box Brand:
-
/
-
Forward Shift Number:
-
/
-
Dimensions (L x W x H) (mm):
-
/
-
Cargo Tank Dimension:
-
/

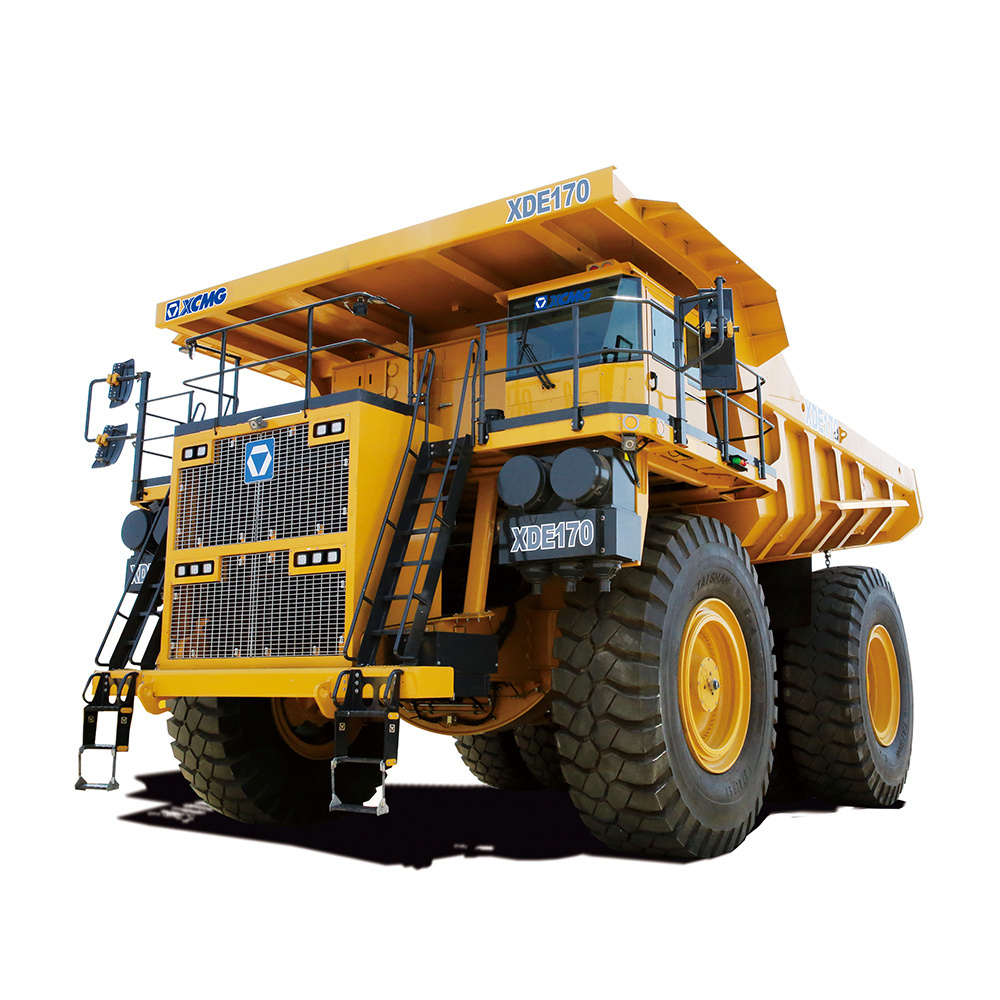

Chinese electric driver heavy duty coal mining dump truck XDE170 best price for sale
1,Adopt Ac-Dc-Ac electric drive technology to reduce system maintenance workload and improve machine's grade ability.
2, Adopt large complicated load carrying structural element, stiffness and fatigue failure analysis and optimization technology to improve reliability of frame and compartment.
3, Adopt large flow hydraulic system integration and optimization technology to reduce faults and oil consumption.
4, Adopt rear-end collision prevention design and main power lock technology to effectively avoid occurrence of accidents.
5,The whole machine is equipped with automatic weighing system, centralized lubrication system and central fire extinguishing system(optional).
6,Optional lightweight compartment will improve transportation efficiency and fuel economy.
| Description | Unit | Parameter value | ||
| 190 U.S. ton | 200 U.S. ton | |||
| Engine | Model | MTU 12V4000C23R Tier II | ||
| Rated Power/Speed | 1510kw 2025 HP@1900rpm | |||
| Max. Torque/Speed | 8482Nm @1700rpm | |||
| Optional | Cummin s QSK50 Tier II | |||
| Electric Drive | Drive System | AC drive system | GE 240AC drive system | |
| Alternator | A1300 | GTA49 | ||
| Traction Motor | M590 | GEB38 | ||
| Ratio | 33.67:1 | 26.825:1 | ||
| Tires and Rims | Standard Tire | 37.00R57 Tubeless, all-steel radial tires | ||
| Standard Rim | 29.00/6.0 | |||
| Cab | Cab | FOPS Cab | ||
| Optional | ROPS&FOPS Cab | |||
| Brake System | Service Brakes | All hydraulically actuated dry disc brakes at each wheel | ||
| Electric Dynamic Retarder | kW | Max.2200 | Max.2400 | |
| Front Suspension | Sliding pillar type, hydro-pneumatic suspension | |||
| Hydraulic System | Steering | Flow amplified power steering. Supplementary steering automatically supplied by accumulators | ||
| Hoist Time | s | 20 | ||
| Electric System | V | 24 | ||
RISEN ConstructionMachinery (Shanghai) Co., Ltd is engaged in developing, manufacturing andexporting construction machines in the areas of building, mining, energy andlogistic engineering. Offering 8 major categories, 38 product line and morethan 1000 models, RISEN is able to provide complete equipment package to theclients from all walks of life.We are a wholesaler of many brands in China, a professional exporter of construction machinery and a one-stop solution provider. Our team has over 15 years of experience in this field.
From the factory to our customer's destination, we will conduct all-round supervision .We can also helpto sign purchase ordercontracts , test product quality , guarantee timely delivery , and accomodate special orders .
What is the proportion of your products exported?
75% of our products are exported to all over the world.
What is the payment term?
Payment term is negotiable and there will be favorable payment terms for long-term customers. TT, L/C, D/P, depending on the cooperation time, country and contract value.
What kind of logistic service do you supply?
A. Transportation: railway transportation, international through transport, including (international railway through transportation, Sea-rail intermodal through transportation, sea-land multimodal transportation. Means of transport : Container, LCL, FRC, ro-ro, bulk cargo, train carriage, truck, air plane.
B. Term: FOB,CIF, DAP, to door service, etc.
