Quick Details
-
Voltage:
-
220 V
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
PRINTYOUNG
-
Dimension(L*W*H):
-
2400 * 1200 * 1800 mm
-
Weight:
-
800 KG
-
Certification:
-
CE
-
Packing Speed:
-
25 ~ 40 packs/min
-
Packing Size:
-
300 * 200 * 100 mm
-
Packing Material:
-
BOPP film and gold tear tape
-
Product Name:
-
BTB-400 Cellophane Wrapping Machine
Quick Details
-
Packaging Type:
-
Cartons
-
Packaging Material:
-
Paper
-
Driven Type:
-
Electric
-
Voltage:
-
220 V
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
PRINTYOUNG
-
Dimension(L*W*H):
-
2400 * 1200 * 1800 mm
-
Weight:
-
800 KG
-
Certification:
-
CE
-
Packing Speed:
-
25 ~ 40 packs/min
-
Packing Size:
-
300 * 200 * 100 mm
-
Packing Material:
-
BOPP film and gold tear tape
-
Product Name:
-
BTB-400 Cellophane Wrapping Machine

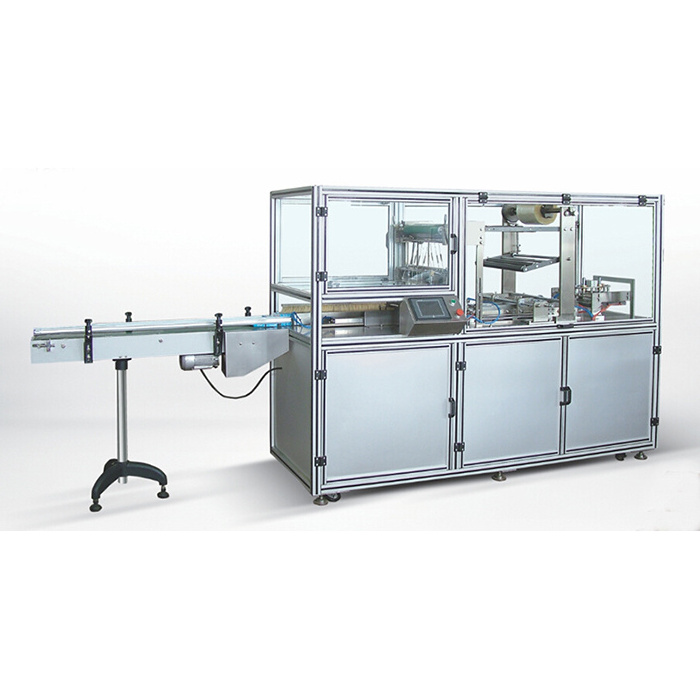

BTB-400 Cellophane Wrapping Machine
Uses:
This machine is widely applicable to the packaging of various single large box articles, such as the medicine, health products, foodstuff, daily cosmetics, stationery articles,and audiovisual products, or the collective blisterpack of multi-piece box articles (with gold tear tape).
Performance Characteristics:
The work can be finished by a series of cams in the machine driving various floating links and parts.Human-machine interface is realized in terms of multifunctional digital-display frequency-conversion stepless speed regulation, PLC programmed control technology, automatic box feeding and automatic counting and touch screen display, pneumatic film falling; the machine can be combined to use with otherproduction line.
Main Technical Parameters:
| Packing Material | BOPP film and gold tear tape |
| Packing Speed | 25~40 packs/min |
| Packing Size | (L)300×(W)200×(H)100mm |
| Electric Supply & Power | 220V 50Hz 5.5kw |
| Weight | 800kg |
| Overall Dimensions | (L)2400×(W)1200×(H)1800mm |
