Quick Details
-
Special Features:
-
Built-in Camera
-
Swing direction::
-
unidirectional or bidiretional swing turnstile gate
-
Pass way::
-
swipe IC/ID cards,fingerprint ,IR sensor ,barcode cards
-
Communication interface::
-
TCP/IP standard or RS 485
-
Extended function::
-
sound light ,alarm, counting function
-
Gate opening and closing time::
-
2-3 seconds
-
Pass speed: 40 / min (normally open),:
-
40 / min (normally open), 25-30 / min (NC)
-
Handicap width::
-
850-900mm
-
Dimension::
-
1400x185x1000mm
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TDZ
-
Model Number:
-
TDZ-B136
-
Special Features:
-
Built-in Camera
-
Swing direction::
-
unidirectional or bidiretional swing turnstile gate
-
Pass way::
-
swipe IC/ID cards,fingerprint ,IR sensor ,barcode cards
-
Communication interface::
-
TCP/IP standard or RS 485
-
Extended function::
-
sound light ,alarm, counting function
-
Gate opening and closing time::
-
2-3 seconds
-
Pass speed: 40 / min (normally open),:
-
40 / min (normally open), 25-30 / min (NC)
-
Handicap width::
-
850-900mm
-
Dimension::
-
1400x185x1000mm

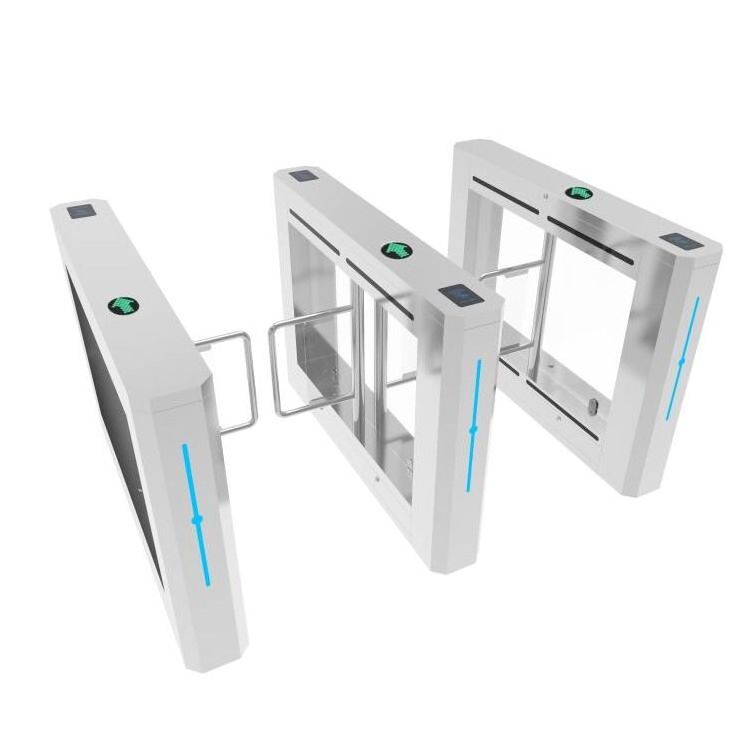

School office swing barrier Face recognition brushless motor anti-collision swing barrier turnstile
Features and Function of Swing Barrier:
- 304 stainless steel, Appearance design, generous, beautiful, humanized design. Appearance can be custmized;
- High-performance integrated control panel, strong anti-interference ability, Stability System , Drive module does not heat, Low power consumption;
- By small buttons on SRU, can set the device's operating status;
- Anti Pinch, anti bumps function:When obstacles encountered in the process of arm resetting, motor stops or open again;
- Scour protection function: When the open signal is not received, arm will be locked after 5 degrees rotation ;
- Automatic reset function: After turnstile opened, not pass within a specified period of time, the system will automatically cancel the access privileges of users;
- Read the card with memory and without memory function: Users can be set using the key board according to their needs;.
- Audible alarm function:Including unlawful entry, trailing alarm;
- 6 --- 10 pairs of infrared sensors to detect the trailing and anti pinch;
- Unique design, perfect control technology, beautiful and distinguished design, making products frequently favored by domestic and foreign high-end users.
Technical Parameters:
| Dimensions | 1400x185x1000mm |
| Stainless thickness | standard 1.5mm, Can thicken |
| Turnstile components | cabinet, arm, movement, controller, encoder, electromagnetic brake, glass panel |
| Swing arm length | 300-600mm |
| Transmission arm angle | 180 degree |
| Swing direction | One-way or two-way |
| Power | Single movement 50W,double movement 100W |
| Operating Voltage | AC220 ±10% V/50 ±10% HZ |
| Motor | DC motor 40W/24V |
| Normal life | 500 million times |
| Gate opening time | 0.2 seconds |
| Input interface | dry contact signal or 12V level signal |
| Communication interface | RS485 or TCP / IP |
| Pass speed | 40 / min (normally open), 25-30 / min (Normally Closed) |
Fast Speed Swing Gate Images:
Multi function graph:
Case:
Exhibtion:
Patents:
Package: Wooden
Shipping Way:
1. Fast way: B y express courier, door to door, such as DHL, FedEx, UPS, TNT, EMS.
B y air, to airport
2. Cheap way: B y sea.
Warranty:
One year Warranty, from the date of delivery, a lifetime technical support.
Feedback quickly:
1. 24 hours online service and reply your inquiry within 8 hours.
2. We could provide Online supports for you when need supports on testing.
Advantage:
1.One stop security solution provider, can help you save time and costs.
2.Good quality with competitive price, offer OEM and ODM service.
3. Professional technique supports and great after sell service.
4. Fastest delivery and safe shipping way.
