Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Changhong Sheng
-
Model Number:
-
JTW
-
Item:
-
flange connection flexible hose
-
Pressure:
-
PN10,PN16,PN40,125PSI,150PSI
-
material of flange:
-
carbon steel,stainless steel,SS304,SS316,SS316L,Cast Iron
-
MOQ:
-
1 piece
-
bellow material:
-
PN6,PN10,SS304,SS321,SS316,SS316L,Incoloy825,800,Inconel625,PTFE
-
sample:
-
free sample
-
bellow layer:
-
1-6layers
-
Applicable temperature:
-
-196℃~+700℃
-
warranty time:
-
18 months
-
application:
-
metal expansion joint for pipeline
Quick Details
-
Technics:
-
Casting
-
Shape:
-
Equal
-
Head Code:
-
round
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Changhong Sheng
-
Model Number:
-
JTW
-
Item:
-
flange connection flexible hose
-
Pressure:
-
PN10,PN16,PN40,125PSI,150PSI
-
material of flange:
-
carbon steel,stainless steel,SS304,SS316,SS316L,Cast Iron
-
MOQ:
-
1 piece
-
bellow material:
-
PN6,PN10,SS304,SS321,SS316,SS316L,Incoloy825,800,Inconel625,PTFE
-
sample:
-
free sample
-
bellow layer:
-
1-6layers
-
Applicable temperature:
-
-196℃~+700℃
-
warranty time:
-
18 months
-
application:
-
metal expansion joint for pipeline
TECHNICAL CONDITIONS of stainless steel flange connection flexible hose
|
DN
|
Number
of wave
|
Pressure grade(Mpa) |
Available area
(cm2)
|
Max size (mm) |
Length (mm) |
|||
| 0.6 | 1.0 | 1.6 | 2.5 | |||||
| Axial compensation mm/ N/mm | ||||||||
| 32 | 8 | 22/26 | 20/26 | 18/63 | 15/98 |
16
|
110
|
110
|
|
40
|
8
|
22/44
|
20/44
|
18/89
|
15/106 |
23
|
130
|
130
|
|
50
|
8
|
22/51
|
20/70
|
18/0
|
15/138
|
37 | 150 | 150 |
|
65
|
8
|
30/35
|
26/44
|
22/55 |
19/68
|
55 | 170 | 170 |
|
80
|
8
|
36/26
|
34/33
|
28/41 |
24/54
|
81 | 200 | 200 |
|
100
|
8
|
45/60
|
40/75 |
35/93
|
29/117
|
121 | 220 | 220 |
|
125
|
9
|
77/29
|
66/36 | 58/45 |
50/56
|
180 | 290 | 240 |
|
150
|
8
|
71/43
|
64/51 | 54/59 |
46/65
|
257 | 290 | 250 |
|
200
|
8
|
65/44
|
59/52 | 53/58 | 48/78 | 479 | 340 | 280 |
|
250
|
6
|
65/34
|
59/42 | 52/45 | 47/55 |
769
|
300 | 280 |
|
8
|
97/21
|
87/35 | 79/39 | 71/47 | 360 | 340 | ||
|
300
|
6
|
65/55
|
59/59 | 52/65 | 47/71 |
1105 |
340 | 330 |
|
8
|
97/35
|
87/37 | 79/41 | 71/45 | 400 | 380 | ||
|
350
|
6
|
65/62
|
59/67 | 52/74 | 47/81 |
1307 |
340 | 360 |
|
8
|
97/41
|
87/44 | 79/48 | 71/47 | 420 | 420 | ||
|
400
|
6
|
65/58
|
59/62 | 52/68 | 47/75 |
1611
|
340 | 360 |
|
8
|
97/39
|
87/43 | 79/47 | 71/52 | 420 | 420 | ||
|
450
|
6
|
97/35
|
87/37 | 79/41 | 71/45 |
1972 |
340 | 360 |
|
8
|
145/22
|
131/23 | 118/35 | 108/28 | 450 | 460 | ||
|
500
|
6
|
97/64
|
87/68 | 79/75 | 71/82 |
2445 |
340 | 450 |
|
8
|
145/37
|
131/39 | 118/43 | 106/48 |
450
|
520
|
||
|
600
|
6
|
97/80
|
87/85 | 79/94 | 71/103 |
3534 |
380 | 480 |
|
8
|
145/45
|
131/49 | 118/53 | 106/60 | 500 | 560 | ||
|
700
|
4
|
97/72
|
87/77 | 79/85 | 71/95 |
4717 |
1110 |
400 |
|
6
|
145/45
|
131/49 | 118/53 | 106/60 | 520 | |||
|
800
|
4
|
108/95
|
102/102 | 94/112 | 82/123 |
5822
|
1265
|
410 |
| 6 |
164/72
|
156/77
|
144/85 | 125/93 | 520 | |||
| 900 | 4 | 108/90 | 102/97 | 94/107 | 82/117 | 7620 | 1186 | 410 |
| 6 | 164/65 | 156/69 | 144/76 | 125/84 | 520 | |||
|
1000
|
4
|
108/98 | 102/105 | 94/116 |
9043
|
1286
|
410 | |
| 6 |
164/65
|
156/71
|
144/81 | 520 | ||||

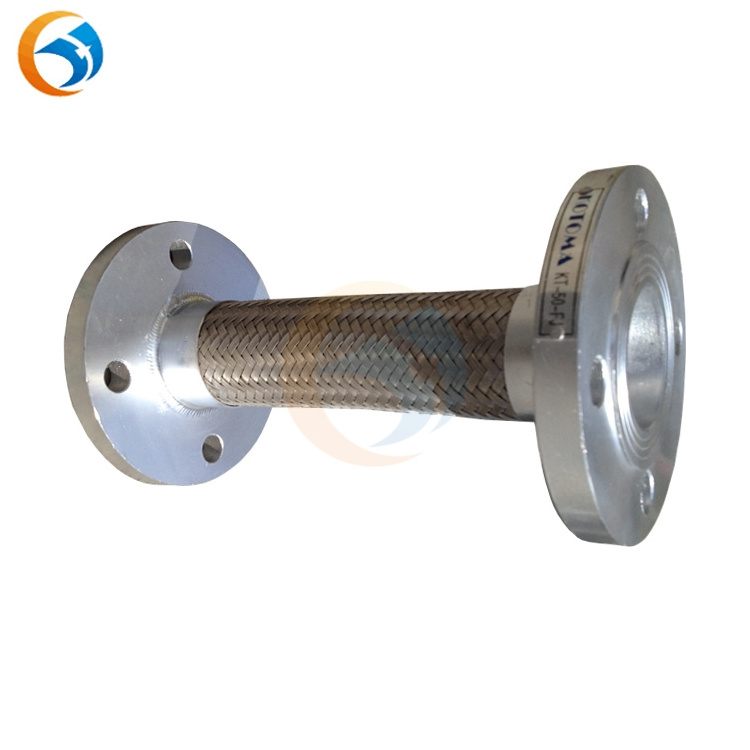

Details of stainless steel flange connection flexible hose
stainless steel flange connection flexible hose:
1. Inner package: weave bag and straw rope,or bubble wrap as your need.
2. Outer pacakge :wooden cases (in usually the size of 1100mm*1100mm*1100mm the 20 feet container can hold 18 wooden cases
3. Mix sizes per wooden cases or every size per wooden cases
Q1: Do you attend the Fair ?
A1:Yes ,you can meet us ,then we can have a talk with you well . You can meet us at your office ,because we visit you every year.
Q2: Can i get a sample?
A2: Of cause you can . For samll order .Express wll be best. And for bulk order,sea ship way is best but take much time.For urgent orders.we suggest via air to airport plus our ship partner send to your door.
Q3: What is the MOQ of stainless steel flange connection flexible hose?
A3: 1 Piece, You can also get it as a sample to test our product quality ,then you can purchase order to us .
Q4: Can you supply the all documents for customs clearance ?
A4: yes ,by the way,we have a good releation with the port agent because we can help you .
