Quick Details
-
Voltage:
-
220v/380v
-
Weight:
-
110kg
-
Dimension(L*W*H):
-
1100x400x950
-
Product name:
-
juicer making machine
-
Blade Material:
-
Stainless steel
-
Capacity:
-
100-500kg/h
-
Application:
-
juicer extractor
-
netting size:
-
0.6mm filter hole diameter
-
screw diameter:
-
87.5mm
-
Rating (Rpm):
-
400r/pm
-
suitable:
-
vegetable,fruit
-
shiping way:
-
by sea
-
payment method:
-
TT,Western Union,paypal,trade assurance
-
Certification:
-
CE
Quick Details
-
Place of Origin:
-
Jiangxi, China
-
Processing Types:
-
fruit vegetable juice machine
-
Power:
-
2200w
-
Voltage:
-
220v/380v
-
Weight:
-
110kg
-
Dimension(L*W*H):
-
1100x400x950
-
Product name:
-
juicer making machine
-
Blade Material:
-
Stainless steel
-
Capacity:
-
100-500kg/h
-
Application:
-
juicer extractor
-
netting size:
-
0.6mm filter hole diameter
-
screw diameter:
-
87.5mm
-
Rating (Rpm):
-
400r/pm
-
suitable:
-
vegetable,fruit
-
shiping way:
-
by sea
-
payment method:
-
TT,Western Union,paypal,trade assurance
-
Certification:
-
CE

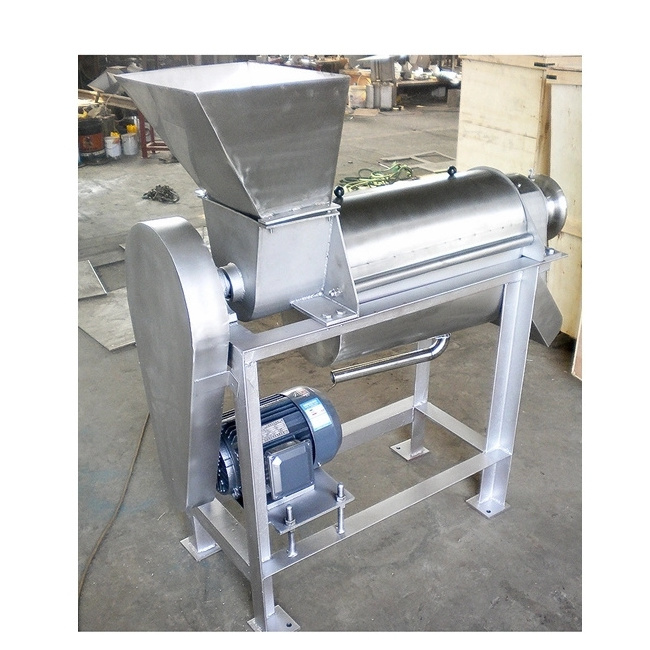

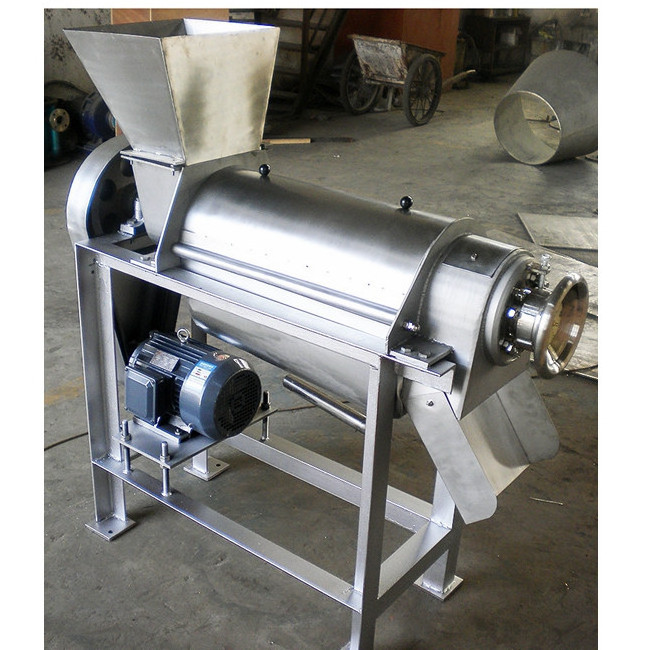

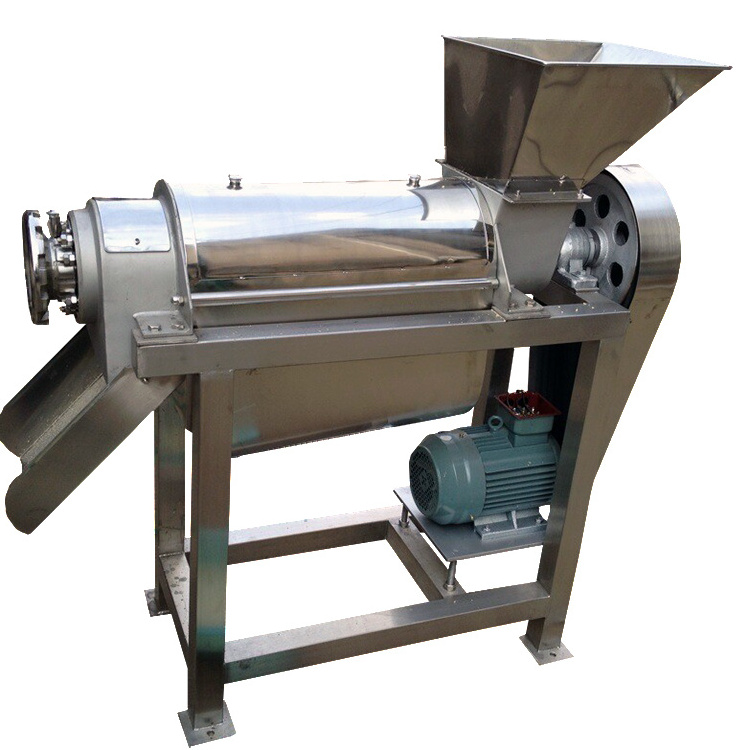

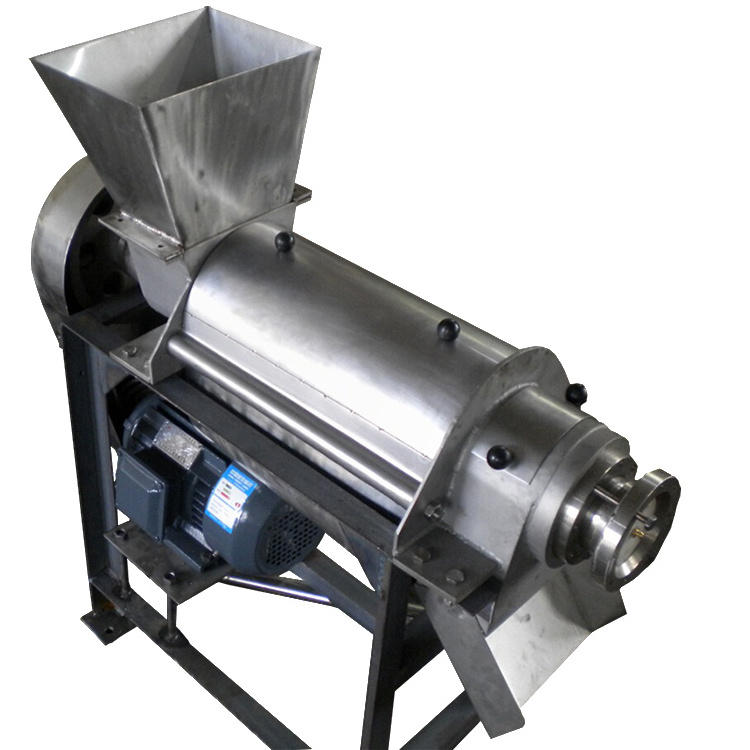

500kg/h Ginger pomegranate juice press/fruit juice screw press/juicer making machine
I ntroduction of fruit vegetable juicer
Fruit juicer is used to produce any fruits such as apples, pears, carrots, aloes, cactus, ect.
Proper for all kinds of fruits and vegetables. For example, mangoes, pineapple, tomatoes, apple, oranges and so on.
All parts which close to material are stainless steel;
Divide the dregs and juice automatically;
Output the dregs lockless, juice rate is up to more than 80%.
Application of fruit vegetable juicer
machine is suitable for pressing tomato, pineapple, apple and orangeetc fruit and vegetable juice
Structure of fruit vegetable juicer
Machine is made of front pedestal, feeding hopper, screw, filtrating screen, juice storing device, rear support, slag notch and other parts. Screw spindle support in the rolling bearing and righthand side supports in hand wheel bearings. The electric motor drive the spiral working through a pair of v-belt pulley.
Advantage of juicer
1.Pure copper motor
2.All stainless steel body
3.Big size Feed inlet
4.Smooth slag
5.Motor protection cover
6.Food grade stainless steel juice guide tube
7.Screw press bar
8.Fine mesh screen, 0.6mm filter dimater.
Technical parameter
|
Type |
KXY -0.5T |
KXY-1.5T |
KXY -0.5T With broke function |
KXY -1.5T With broke function |
|
Feed throughput |
500Kg/h |
1500Kg/h |
500Kg/h |
1500kg/h |
|
Screw diamete r |
87.5mm |
175mm |
87.5mm |
175mm |
|
Filter screen pore size |
0.6mm |
0.6mm |
0.6-1mm |
0.6mm |
|
Motor Power |
1.5Kw |
4Kw |
4.4Kw |
6.2KW |
|
Spindle speed |
400rpm |
400rpm |
400rpm |
400rpm |
|
Weight |
110Kg |
350Kg |
160Kg |
430KG |
|
Dimension |
1100x400x950mm |
1400x500x1380mm |
1100x450x1500mm |
1400x500x1700 |
|
Voltage |
220v/380v |
380v |
220v/380v |
380v |
