Quick Details
-
Dimension(L*W*H):
-
1890*3600*2000
-
Weight (KG):
-
3300
-
Power (kW):
-
7.5
-
Table size:
-
400*800
-
X axis travel:
-
950mm
-
Y axis travel:
-
460mm
-
Maximum load:
-
500 kg
-
Max. Grinding Wheel Size:
-
dia.400*20-50*127 mm
-
Grinding Wheel Speed:
-
1450/1740 R.P.M
-
Spindle motor:
-
7.5*4 HXP
-
Max. Grinding Length:
-
800
-
Weight:
-
3300
-
Max. Grinding Diameter:
-
400mm
-
Certification:
-
CE
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Puchuang
-
Voltage:
-
220/380 v
-
Dimension(L*W*H):
-
1890*3600*2000
-
Weight (KG):
-
3300
-
Power (kW):
-
7.5
-
Table size:
-
400*800
-
X axis travel:
-
950mm
-
Y axis travel:
-
460mm
-
Maximum load:
-
500 kg
-
Max. Grinding Wheel Size:
-
dia.400*20-50*127 mm
-
Grinding Wheel Speed:
-
1450/1740 R.P.M
-
Spindle motor:
-
7.5*4 HXP
-
Max. Grinding Length:
-
800
-
Weight:
-
3300
-
Max. Grinding Diameter:
-
400mm
-
Certification:
-
CE

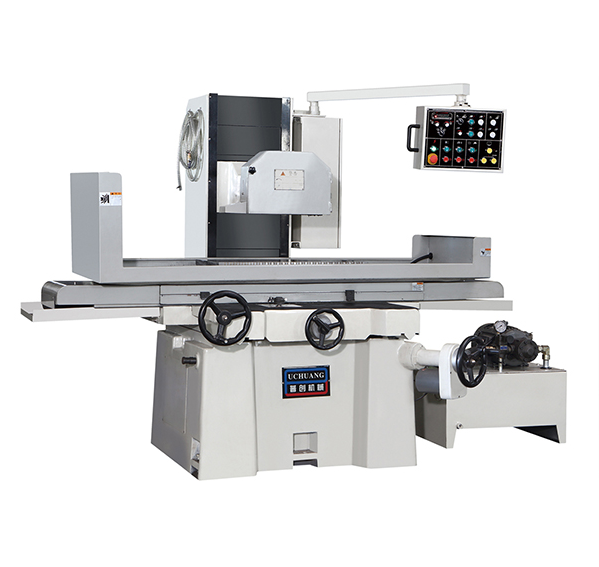

High Quality AHD 4080 Surface Grinding Machine
Product Application
It can be used for the plane grinding of parts. It can meet many grinding requirements, such as plane precision grinding, large allowance grinding and simple shape grinding. It can grind workpieces made of alloy steel, stainless steel, common steel and cast iron. The surface grinder has high accuracy, good reliability, reasonable structure design and sufficient static, dynamic and thermal stiffness. The accuracy of machine tools is maintained well, and advanced technology can be used to ensure that all levels of systems have good dynamic quality. The selected servo drive system has high precision, good reliability and fast response. The machine tool is easy to use, operate and maintain, beautiful in appearance and good after-sales service.
Machine Features
Three axis designed with high rigidity hard rail structure to ensure long-lasting precision
Spindle from Taiwan with spindle swing ≤ 2 um
Hydraulic system without vibration to ensure accuracy of the machine
Suitable for heavy cutting and fine grinding with high processing efficiency
AHR : Automatic cross feed
Electronic rapid up and down feed
AHR: Automactic cross feed
Automatic rapid up and down feed (with 750 W servo motor)
