Quick Details
-
Place of Origin:
-
Hebei, China
-
Product name:
-
wire tie wedge anchor M6X60
-
Application:
-
Building Construction
-
Color:
-
Silver
-
Packing:
-
Small Box /bulk Paced(25 Kg)
-
Grade:
-
4.8/ 6.8/ 8.8/ 10.9/ 12.9
-
Finish:
-
Galvanized.yellow Zinc Plated
-
Sample:
-
Avaliable
-
Package:
-
Package
-
Thread:
-
UNC
-
Payment:
-
T/T
Quick Details
-
Material:
-
Steel
-
Length:
-
50
-
Capacity:
-
220
-
Place of Origin:
-
Hebei, China
-
Product name:
-
wire tie wedge anchor M6X60
-
Application:
-
Building Construction
-
Color:
-
Silver
-
Packing:
-
Small Box /bulk Paced(25 Kg)
-
Grade:
-
4.8/ 6.8/ 8.8/ 10.9/ 12.9
-
Finish:
-
Galvanized.yellow Zinc Plated
-
Sample:
-
Avaliable
-
Package:
-
Package
-
Thread:
-
UNC
-
Payment:
-
T/T

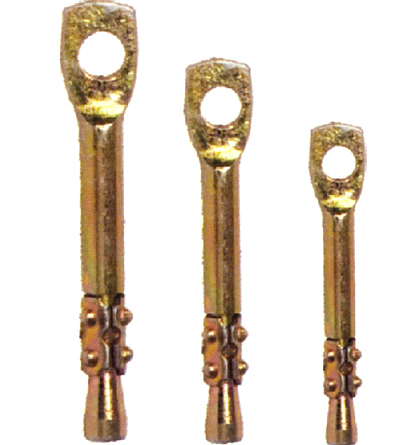

The Tie-Wire anchor is a wedge-style expansion anchor for use in normal-weight concrete or in concrete over metal deck. With a tri-segmented, dual-embossed clip, the Tie-Wire anchor is ideal for the installation of acoustic ceiling grid and is easily set with the claw of a hammer.
Key Features
- 1/4" eyelet for easy threading of wire
- Sets with claw of hammer
- Tri-segmented clip – each segment adjusts independently to hole irregularities
- Dual embossments on each clip segment enable the clip to undercut into the concrete, increasing follow-up expansion
- Wedge-style expansion anchor for use in normal weight concrete or concrete over metal deck
The tie wire anchor is an all steel pre-assembled single unit sleeve anchor which can be used in concrete or masonry units. Available in multiple head styles for multiple applications and finished appearance, extension sleeves can be added to create longer lengths.
Application & Uses:
1. Door and window frame installations
2. Masonry applications
3. Electrical / Mechanical applications
4. Mounting fixtures on walls
5. General purpose anchoring
Features & Beneftits:
1. Variety of head styles, lengths and sizes
2. All steel component design
3. Preassembled anchor for immediate installation
4. Sleeve keeps anchor centered in hole and has 360° contact area for even stressdistribution
5. Versatile – can be used for solid and hollow concrete or masonry applications
6. Designed to allow fixture to draw snug against the base material during tightening
