Quick Details
-
Part name:
-
SWING MOTOR UNIT
-
Application:
-
Crawler Excavator
-
Material:
-
STEEL
-
Color:
-
Yellow
-
Certification:
-
ISO9001
-
Weight:
-
70kg
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
TMHB
-
Part number:
-
31Q8-10170
-
Part name:
-
SWING MOTOR UNIT
-
Application:
-
Crawler Excavator
-
Material:
-
STEEL
-
Color:
-
Yellow
-
Certification:
-
ISO9001
-
Weight:
-
70kg
PRODUCTION DETAIL

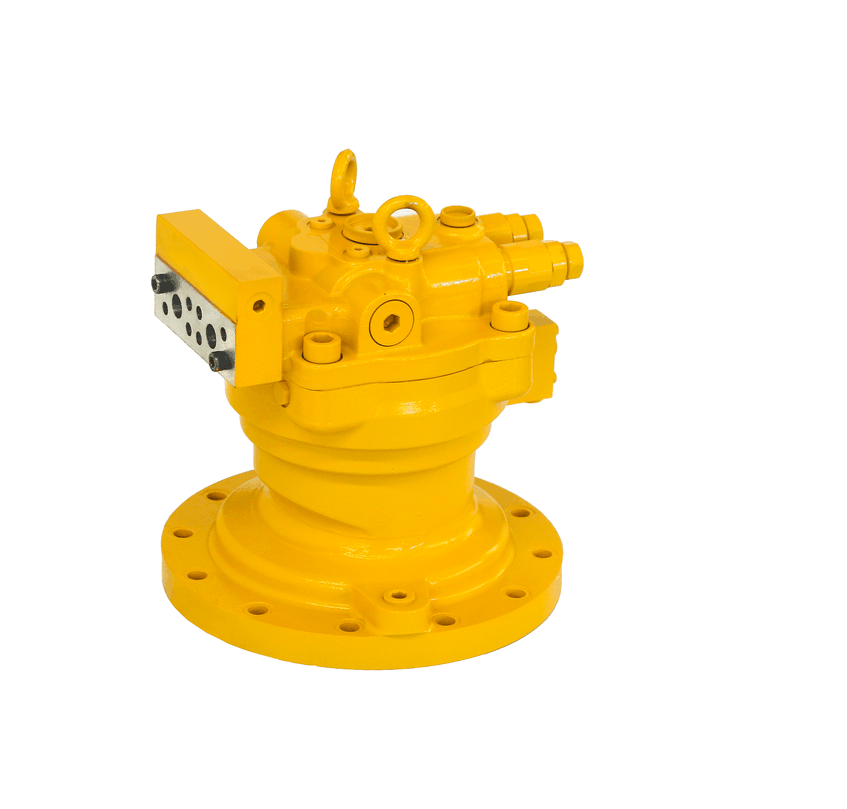

| Product name | EXCAVATOR SWING MOTOR 31Q8-10170 FOR CRAWLER EXCAVATOR R290-9 R300-9S R330-9S |
| Brand | TMHB |
| Model number | R290-9 R300-9S R330-9S |
| Part name |
SWING MOTOR ASSY
|
| Part number | 31Q8-10170 |
| Warranty | 6 Months |
| MOQ | 1 pcs |
| Other Available Model | R290LC-7A R300LC-7 R305LC-7 |
| Part no. | Description |
| 31Q8-10200 | Swing Motor Assy |
| 31Q8-10200SG8 | Swing Unit |
| 31Q8-10170 | . Swing Motor |
| 31Q8-10170AR | . Swing Motor |
| XKAY-01519 | .. Body |
| XKAY-01520 | .. Shaft |
| XKAY-01521 | .. Ring-Snap |
| XKAY-01522 | .. Plate |
| XKAY-01523 | .. Bearing-Roll |
| XKAY-01524 | .. Cover |
| XKAY-01525 | .. Seal-Oil |
| XKAY-01526 | .. O-Ring |
| XKAY-00523 | .. Ring-Snap |
| XKAY-01527 | .. Plate-Shoe |
| XKAY-01528 | .. Rotory Kit |
| XKAY-01529 | ... Block Kit-Cyl |
| XKAY-01530 | .... Block-Cylinder |
| XKAY-01550 | .... Plate-Valve |
| XKAY-01531 | .... Seat-Spring |
| XKAY-01532 | .... Spring-Cylinder |
| XKAY-01533 | .... Ring-Snap |
| XKAY-01534 | .... Pin |
| XKAY-01535 | .. Retainer Kit |
| XKAY-01536 | ... Guide-Ball |
| XKAY-01537 | ... Plate-Set |
| XKAY-01538 | .. Piston Kit |
| XKAY-01539 | ... Pistion Assy |
| XKAY-01540 | .. Plate |
| XKAY-01541 | .. Plate-Friction |
| XKAY-01542 | .. O-Ring |
| XKAY-01543 | .. O-Ring |
| XKAY-01544 | .. Piston-Brake |
| XKAY-01545 | .. Spring-B/P |
| XKAY-01546 | .. Cover-Rear |
| XKAY-01547 | .. O-Ring |
| XKAY-01875 | .. Bearing-Roller |
| XKAY-01549 | .. Ring-Snap |
| XKAY-00510 | .. Pin |
| XKAY-01551 | .. Bolt-Wrench |
| XKAY-00188 | .. Plug |
| XKAY-01447 | .. O-Ring |
| XKAY-00186 | .. Poppet |
| XKAY-00187 | .. Spring |
| XKAY-01552 | .. Reactionless Vlv Assy |
| XKAY-01553 | .. Plug |
| XKAY-01554 | .. Ring-Back Up |
| XKAY-00320 | .. O-Ring |
| XKAY-01555 | .. O-Ring |
| XKAY-01556 | .. Relief Valve Assy |
| XKAY-00150 | .. Plug |
| XKAY-00151 | .. O-Ring |
| XKAY-00975 | .. Plug |
| XKAY-00548 | .. Plug |
| XKAY-01470 | .. Valve Assy-Time Delay |
| XKAY-00149 | .. Bolt-Wrench |
| XKAY-01557 | .. Gauge-Level Kit |
| XKAY-02141 | ... Gauge-Level |
| XKAY-01558 | Seal Kit |
